Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | China Mainland |
Brand Name: | Jiayuan |
Certification: | CE,SGS |
Model Number: | WD –150 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Seaworthy Wooden Case |
Delivery Time: | 30 days |
Payment Terms: | T/T; L/C |
Supply Ability: | 5 sets/month |
Automatic Grade: | Auto | Bottle Type: | Round Bottle|Flat Bottle |
---|---|---|---|
Capacity: | 15000BPH | Driven Type: | PLC|Ectric |
Power: | 15Kw | Shrinkage Film Material: | PE|PVC|POF |
High Light: | Wrapping Packing Machine,Sticker Labeling Machines |

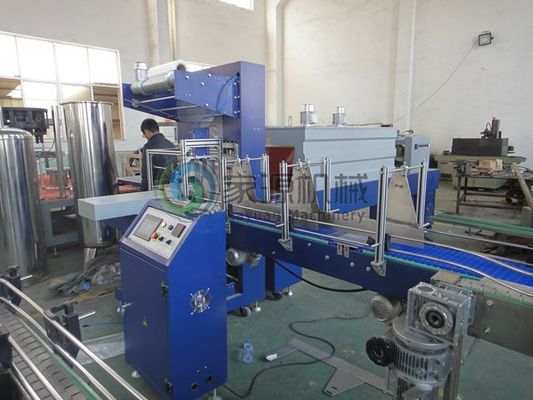

PLC Control Shrink Packing Machine 15000BPH For Mineral Water
Quick Detail:
1. Product: Automatic water bottle packing equipment
2. Model:WD-150A
3. Main Material: SS304
4. Production capacity: 15000bph(500ml)
5. Usage: Packing machine
6. Warranty: 1year free
Automatic water bottle packing equipment
Description:
Applicable Bottle Types:
This automatic shrink labeling machine n be used for various kind of bottle types, for example : round bottle, square bottle,flat bottle, curved bottle and cup-shaped, etc.
Electrical Appliance Configuration Specification
It adopts PLC programmable controller, imported servo motor, servodriver, frequency converter and sducer,besides, it adopts the positioning module to ensure casting label precise, rapid and stable.
Facility character
1) Technical parameter
Facility typeWD-150A type
Facility external sizeL5050×W3300×H2100mm
wrap page max sizeL600×W400×H350mm
Shrinkage film size PE PVC POF
Shrinkage thermo thickness0.03-0.15mm
Thermo shrinkage tunnel temperature: 160 - 260°can adjust at will.
Max output per minute8-12bag
Facility power18Kw
Actual power15Kw/hr
Pressure requirement380/220V
Facility weight1.2T
Fan machine1.1Kw 2set 380V, 65W 4set 380V
2) Technical condition and requirement:
1package type
(1)350/500/550/600ML big bag4×6, 4×5; small bag3×4, 3×5 four type of package.
(2)1L1.5L2L2.5L big bag3×3, 3×4; small bag2×2, 2×3 four type of package
2Regarding can, we suggest adopt to package with tray, pack steadily.
3package speed815bagmin
4meet with pre-treatment filling speed of filling machine.
(1) 350/500/550/600ML big bag4×6,4×5,(1200015000bhrsmall bag3×5,3×4,(800010000bhr.
(2)1L1.5L2L big bag3×4, 3×3(50006000b small bag2×3, 2×230004000bhr.
5package materialPE thermo shrinkage film width200600mm, thickness0.080.12mm
3) Solution
According production line, auto arrange, and combine our company WD-150A automatic sealing and cutting mature structure, as the machine fracture.
The production line can match with any company filling device. For it stability, the production line main component all adopt to import, joint venture famous brand.
if pre-treatment filling machine output is comparatively high, can divide two-way, auto seal and cut at the same time, to meet with output requirement, among WD-150A fracture has original creation, it is the highest-efficiency, highest economical collocate at the same time.
PE film adopt to flake, upper and down roll, auto seal and cut to roll type and up to shrinkage efficiency,
4) Production procedure
Wrappage from single-line 90°change to multi-line again divide 1234 line via bottle division board, via the front 1234 bottle separately reach photoelectric inspection, convey belt stop, place-limit gas-cylinder work, wrappage was conveyed to cutting and sealing machine to seal and cut, wrappage was conveyed to contraction machine to contract via convey device, again convey to stock rack via cooling convey belt, when the first bag convey to contraction machine, the second bag auto arrange, then conveyed to sealing and cutting machine via pushing cylinder, again repeat the first bag recycle procedure.
Competitive Advantage:
Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.
1. The company around 110 KM away from Shanghai, has convenient traffic.
2. The company was established in 1999, has rich experience.
3. We are an CE&SGS certified company.
4. We can produce kind of filling&packing machine, such as
5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
