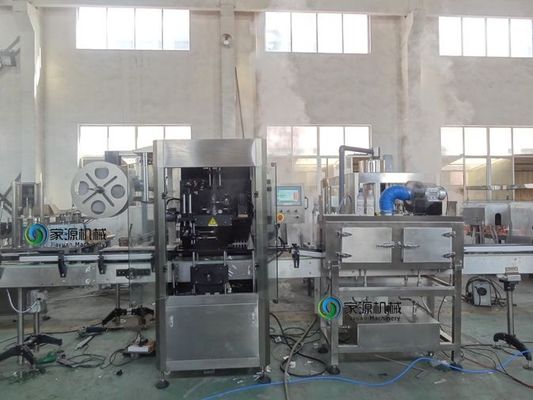

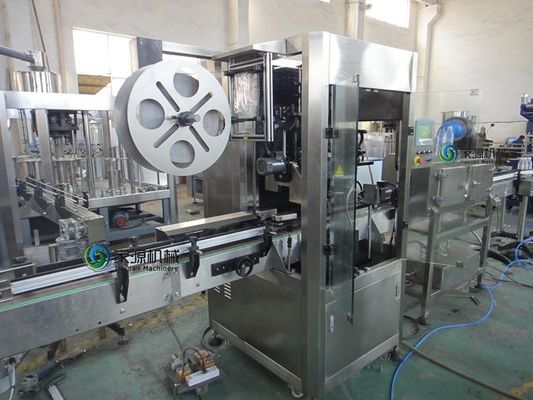

12000bph PET Bottle Shrink Labeling Machine With Filling Capping Machines

12000bph PET Bottle Shrink Labeling Machine With Filling Capping Machines

    • 12000bph PET Bottle Shrink Labeling Machine With Filling Capping Machines
    • 12000bph PET Bottle Shrink Labeling Machine With Filling Capping Machines
    • 12000bph PET Bottle Shrink Labeling Machine With Filling Capping Machines
    • 12000bph PET Bottle Shrink Labeling Machine With Filling Capping Machines
  • 12000bph PET Bottle Shrink Labeling Machine With Filling Capping Machines

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: WD –S250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 5 sets/month
    Contact Now
    Detailed Product Description
    Applied Material: PVC|PET|OPS Automatic Grade: Auto
    Bottle Type: PET|Round Bottle|Flat Bottle Capacity: 12000bph
    Driven Type: Electric Power: 3Kw
    Product Name: Shrink Labeling Machine
    High Light:

    shrink sleeve labeling machine

    ,

    bottle labeling machine


    12000bph PET Bottle Shrink Labeling Machine With Filling Capping Machines

    Quick Detail:

    1. Product: PET bottle filling capping and labeling machine
    2. Model:WD –S250
    3. Main Material: SS304
    4. Production capacity: 12000bph(500ml)
    5. Usage: Labeling machine
    6. Warranty: 1year free
    PET bottle filling capping and labeling machine


    Description:

    Applicable Bottle Types:
    This automatic shrink labeling machine n be used for various kind of bottle types, for example : round bottle, square bottle,flat bottle, curved bottle and cup-shaped, etc.
    Electrical Appliance Configuration Specification
    It adopts PLC programmable controller, imported servo motor, servodriver, frequency converter and sducer,besides, it adopts the positioning module  to ensure casting label precise, rapid and stable.
    Facility character
    1.  Whole machine adopt qualified stainless steel and good-quality of aluminum alloy, compact and reasonable fracture, convenient to adjust
    2.  The label roll frame of shrinkage film with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube
    3.  Simply installation, then can convenient for square and round bottle.
    4. No need of instrument, rotary mechanism is convenient to adjust, apply to different bottle type
    5.  Unique sleeve labeling method, adopt pressing sleeve labeling method, not only convenient but also reasonable
    6.  Control the feeding system automatically, and flat the shrinkage film and adjust strain simultaneity.
    7.  Unique design knife plate, in the determined range, can change the knife base. Knife changing quickly and conveniently
    8.  Middle guide-pole clip system, mould changing quickly, no need any instrument.
    9.  Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.
    10. Imported servo system and high-sensitivity photoelectric from Japan, with high cutting precision of label
    11. Stainless steel electric control cabinet, OMRON PLC, imported from Japan.
    12. Adopt advanced man-computer Interface auto controlling technology, key electric component all  adopt international famous industrial brand.





    Main technical parameters:



    The power supply

    3&380/220VAC

    Power

    3KW

    Mechanical dimensions

    2000*900*2100(mm)

    Packing speed

    250BPM(MAX)

    Container size

    Φ28-Φ125*300(H)mm

    Apply label thickness

    0.035-0.07mm

    Apply to packaging

    PVC PET OPS

    Apply labels highly

    30-250mm(MAX)

    The host weight

    480kg



    Competitive Advantage:

    Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.
    1. The company around 110 KM away from Shanghai, has convenient traffic.
    2. The company was established in 1999, has rich experience.
    3. We are an CE&SGS certified company.
    4. We can produce kind of filling&packing machine, such as

    1. Bottled water production line
    2. Carbonated soft drinks production line
    3. Hot-fill juice and tea production line
    4. 5 Gallon bottled water production line
    5. Water treatment machine and packing machine

    5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
