    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: 1cavity

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 40 days
    Payment Terms: T/T; L/C
    Supply Ability: 1 sets/month
    Contact Now
    Detailed Product Description
    Application: Water Automatic Grade: Auto|Semi Automatic
    Bottle Type: PET|Can Capacity: 800bph|5 Gallon
    Material: SS304 Product Name: Bottle Blowing Machine
    High Light:

    Bottle Molding Machine

    ,

    PET blowing machine



    Quick Detail:

    1. Product: Semi automatic 5 gallon bottle making machine
    2. Main Material: SS304
    3. Production capacity: 800bph(500ml)
    4. Delivery Detail:20-40days after getting deposit
    5. Warranty: 1year free


    Description:

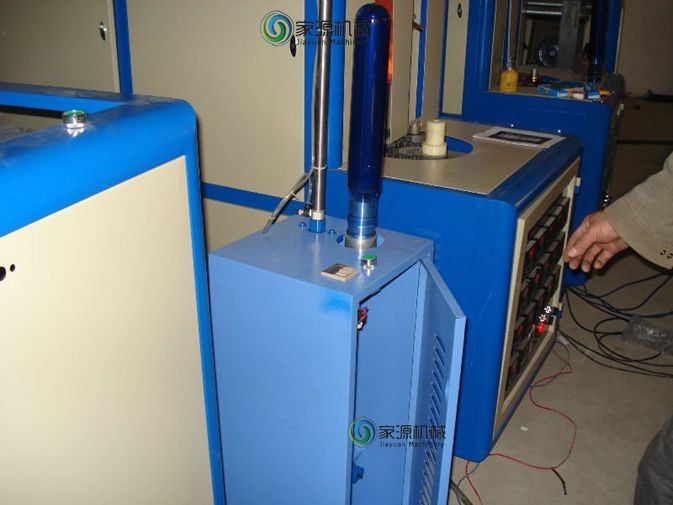

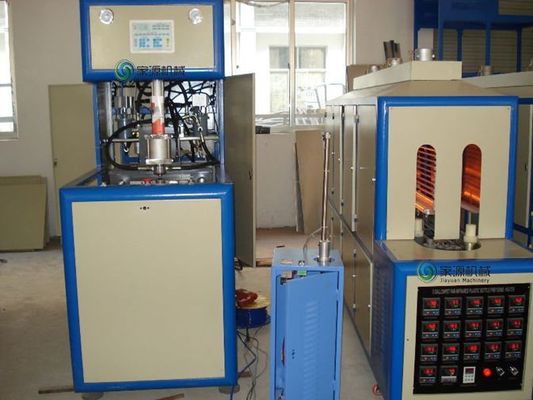

    Semi automatic bottle making machine
    Features
    HY-B-I semi-automatic bottle blow molding machine Specification: HY-B-I semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
     1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
    2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
    3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
    4. The machine can be operated in the step-by-step mode and the semi-auto mode.
    5. The machine is small with low investment, easy and safe to operate .


    Main parameter



    Model

    HY-Y

    Main machine

    Product material

    PET

    Volume

    10L-20L

    Theoretical output

    90PCS/HR(5gallon)

    Preform length

    15mm-700mm

    Preform inner diameter

    15mm-150mm

    Max. mould plate Dimension(L x W)

    400x450mm

    Max.mould thickness

    370mm

    Clamping force

    150KN

    Mould opening stroke

    350mm

    Blowing Air Pressure

    <=3.0 Mpa

    Working Pressure

    <=1.0mpa

    size and weight

    Main machine (L x W x H)

    230*84*215cm

    Main machine weight

    1000Kg

    Heater (L x W x H)

    280*77*175cm

    Heater weight

    450Kg

    Power

    14 kw
