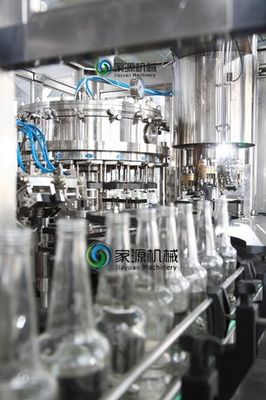

Glass Bottle Aseptic Carbonated Drink Filling Machine with 24 Filling Head

Glass Bottle Aseptic Carbonated Drink Filling Machine with 24 Filling Head

    • Glass Bottle Aseptic Carbonated Drink Filling Machine with 24 Filling Head
    • Glass Bottle Aseptic Carbonated Drink Filling Machine with 24 Filling Head
    • Glass Bottle Aseptic Carbonated Drink Filling Machine with 24 Filling Head
    • Glass Bottle Aseptic Carbonated Drink Filling Machine with 24 Filling Head
  • Glass Bottle Aseptic Carbonated Drink Filling Machine with 24 Filling Head

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: DGCF24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 50000
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 5 sets/month
    Contact Now
    Detailed Product Description
    Application: Liquid|Beverage Automatic Grade: Auto
    Bottle Type: PET|Glass Bottle Driven Type: Ectric|PLC
    Feature: Aseptic Product Name: CSD Filling Machine
    High Light:

    carbonated beverage filling machine

    ,

    CSD Filling Machine

    Glass Bottle Aseptic Carbonated Drink Filling Machine with 24 Filling Head





    1. Products: Glass bottle soft drinks making machine

    2. Model:DGCF24-24-8

    3. Production capacity: 6000-7000bph

    4. Main material: SS304

    5. Mitsubishi PLC control

    6. Origin: Jiayuan

    7. Certificate: CE&SGS

    Glass bottle soft drinks making machine





    Description:



    1). Compact structured, good-looking, and easy to operate and highly automated.

    2). Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws and conveyor chains.

    3). Bottles are transferred in the manner of clamping neck. Bottles can be changed through some replacement of steel clamps, which instead of adjusting the height of machine.

    4). Rinser-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.

    5). Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.

    6). Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.

    7). Replacement between CO2 and O2 ensure almost no O2 in bottle, long filling pipe reduce O2 content to null.

    8). Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.

    9). High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.

    10). Equipped with CIP clean-in-place.

    11). Bottom splint which fixed in the feed-out starwheel goes down in the manner of screw. Bottles can be changed without adjustment of height of conveyor chain.

    12). Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage

    13). Highly effective cap sorting and feed in system is protective for feed in and cap absence.

    14). Equipped with overload system to safeguard machine and operators.

    15). Touch screen operation.

    16). Main electronic components (touch screen, PLC and frequency inverter) are imported products.

    17). Components of pneumatic system are FESTO.





     Applications:



    DGCF Washing, normal pressure Filling, Capping 3-in-1 unit is a new type self-developed equipment, which bases on years’ usual practice and adopt the advanced technology, and absorb many clients’ views. It meets the client’s requirement about filling different bottle size through one set. The suspension card bottleneck is adopted to make changing the bottle size more convenient. It can deliver the bottles automatically by blind and then washing, drying, filling, covering, capping by order automatically. This equipment employs frequent and speed adjustment system so that it can adjust the speed freely and enable the operation user-friendly. This machine is mainly used in washing, filling and sealing for gas beverage (soda water, cola).





    Specifications:



    Glass Bottle Soft Drink making Machine

    1) The machine is designed by our company with stable characteristic, advanced technology, nice appearance and complete function.

    2) The machine is mainly used for washing/filling/capping PET bottle carbonated soft drink.

    Technical parameter

    Rating output (500ml):            5000-7000bph

    Washing heads:                      24

    Filling valve heads:                  24

    Capping heads:                        8

    Filling temperature:               0~4°C

    Suitable bottle type:  Glass bottle  Diameter: D=50~100mm

                                                         Bottle height: H=150~320mm

    Capping torque:                  0.6~2.8Nm (adjustable)

    Installed capacity:                4.37KW

    Main spare parts

    Description

    Supplier

    PLC

    Mitsubishi, Siemens

    Touch screen

    Mitsubishi, Siemens, PROFACE

    Frequency converter

    Mitsubishi, Siemens, Danfoss

    Air switch

    Schneider

    Breaker

    Siemens

    Contactor

    Siemens

    Photoelectric switch

    Omron, Keyence, P+F

    Approach switch

    Truck

    Main bearing

    Harbing

    Lubrication bearing

    IGUS
