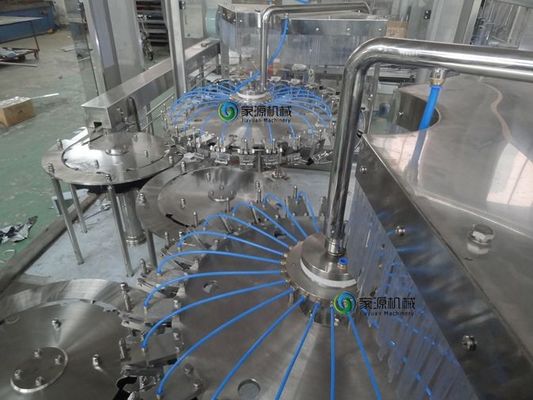

Apple Juice Washing Filling Capping Machine Ectric Driven For Plastic Bottle

Apple Juice Washing Filling Capping Machine Ectric Driven For Plastic Bottle

Quick Detail:

1. Full automatic fresh fruit juice filling machine
2. Production capacity: 4000-20000bph
3. Bottle size: 250-2000ml
4. Rinsing, washing, filling, capping machine 4-1
5. Material: SS304
6. Warranty: 1year free

Apple juice washing filling capping machine

Description:

Main features:

1)  juice filling machine special for tea,various juice.Application PET&glass bottle.Cpacity:2000-20000BPH.Bottle size:150-2000ml.
2)  To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate
3)  The parts contacting media are made from 316L and have no process blind angles to enable easy cleaning
4)  High speed filling valve, guarantees liquid has precise level and no waste is incurred
5)  The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the juice bottle cap
6)  The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting
7)  The machine applies a highly effective cap arranging system that has complete self control and protective device, for hot filling and normal temperature
8)  The juice equipment is equipped with a complete overload protection device that can secure equipment and the operator effectively
9)  Main electric components and pneumatic components apply world famous brand products
10) The machine's operation is controlled by an advanced touch-screen that can
fulfill human-machine communication.

Application:

This Juice filling machine adopts German technology, combined with years of experience in the Company after the development of new products. RXG series hot juice filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage’s characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.4 in 1 Washing, Filling (Pulp), Filling (juice), capping machine. Or Washing (disinfectant), Washing (pure water), Filling, Capping machine. Custom machines according to different requirements for user.

Specifications:

Apple juice washing filling capping machine

Washing machine

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

Filling machine

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.

The filling valve material is SUS304

The filling system has liquid level automatic control.

Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.

Bottle is conveying by the wheel in the filling part.

The juice or other hot beverage can be backflow by return tank to control filling temperature.

Capping machine

Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. our screw capping has following feature.
