Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
|Place of Origin:||China Mainland|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Seaworthy Wooden Case|
|Delivery Time:||40 days|
|Payment Terms:||T/T; L/C|
|Supply Ability:||3 sets/month|
|Application:||Juice|Tea|Beverage|Hot Filling||Automatic Grade:||Fully Automatic|Auto|
|Bottle Type:||PET|Plastic Bottle|Can||Capacity:||2000ml|
|Driven Type:||PLC||Product Name:||Juice Filling Machine|
|Type:||4 In 1|
juice bottling machine,
pet bottle filling line

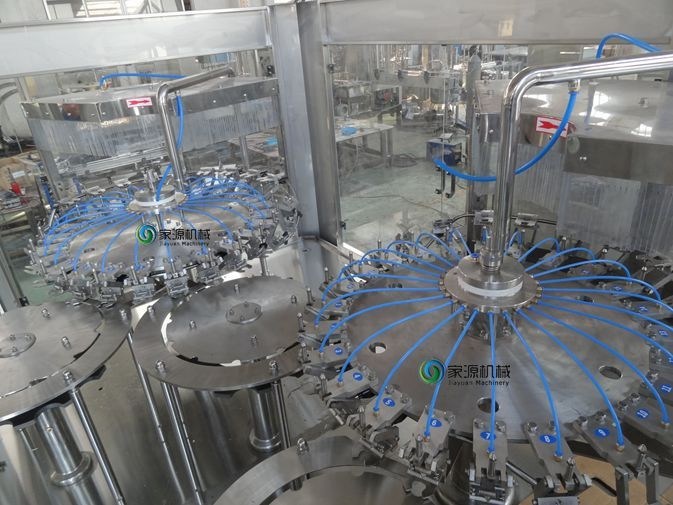

6000BPH Juice Filling Plant , 2000ml Water Bottle Filling Machinery
6000bph juice filling plant main features:
1. All parts, for instance, filling valve, which directly contact medium are made of stainless steel. So it conforms to the requirements of food sanitation.
2. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilize the whole machine at high temperature.
3. 4in1 Juice filling machine Using programmable controller to realize fully automatic control from bottles entering to finishing packing.
4. 4in1 Juice filling machine Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
This Juice filling machine adopts German technology, combined with years of experience in the Company after the development of new products. RXG series hot juice filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage’s characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.4 in 1 Washing, Filling (Pulp), Filling (juice), capping machine. Or Washing (disinfectant), Washing (pure water), Filling, Capping machine. Custom machines according to different requirements for the user.
6000bph juice filling plant
6000 bottle per hour
10000 bottle per hour
15000 bottle per hour
20000 bottle per hour
round or square
PET bottle: (mm)
(Bottle Diameter):φ50-.φ110mm (Height):150-340mm
PE screw cap
filling volume :(L)
