Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity

Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity

    • Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity
    • Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity
  • Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: RCGF18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 35000USD
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Application: Juice|Tea|Beverage|Hot Filling|Milk Automatic Grade: Auto
    Bottle Type: PET|Can Capacity: 0.5L
    Driven Type: Ectric|PLC Product Name: Juice Filling Machine
    Type: 3 In 1
    High Light:

    juice bottling equipment

    ,

    pet bottle filling line

    Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity





    Quick Detail:



    1. Model: RCGF18-18-6
    2. Capacity: 4000-6000BPH@0.5L bottle
    3. Seller: Jiayuan
    4. Designed applicable bottle: 0.2L-2L round PET bottle
    5. Application: Juice, energy drink, tea beverage etc. hot filling.
    6. Designed applicable cap: plastic screw cap.
    7. Easy operate for changing different bottle volume.
    8. Full automatic, No bottle no filling, No cap machine stop.
    9. Customizable
    10. CE & SGS Certificate
    11. 1 Year warranty
    12. Bottle juice filling machine

    Automatic SS304/316 RCGF18-18-6 Bottle Juice Filling Machine RFC 3-in-1 Monoblock





    Description:



    This Bottle Juice filling machine adopts German technology, combined with years of experience in the Company after the development of new products. RCGF series hot juice filling machine is the standard 3-in-1 RFC (rinsing, filling capping) monoblock. But for special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage’s characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.





    Main features:



    1. Bottles are delivered by suspension type clip bottle mouth conveying structure (except bottle out star wheel), bottle in adopts air conveying device, in the bottle washing station with flexible bottleneck clamp clamping, so that machine is more stable during operation , reliable, high-speed operation to adapt to the requirements of the machine.



    2. Dimidiate-type washing hand tongs, empty bottles with the guide rail automatically turn 180 º on to wash in and out of the bottles.

    Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity 0

    3. Bottle Juice filling machine uses normal pressure filling technology is filling fast, reliable, non-drip, level accuracy. The machine has no bottle no filling characteristics.



    4. The bottle juice filling machine uses magnetic torque cover, to achieve grasping cover, screw caps, screw cap stepless torque, constant torque of the screw cap, without damage cover, seal tight and reliable.

    Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity 1

    5. Cap arranging device ensure the cover arrange speed, no damage to the cover surface. Comprehensive testing device can guarantee no bottle no cover, lack of cover down, full cover without cover conveying of functions.

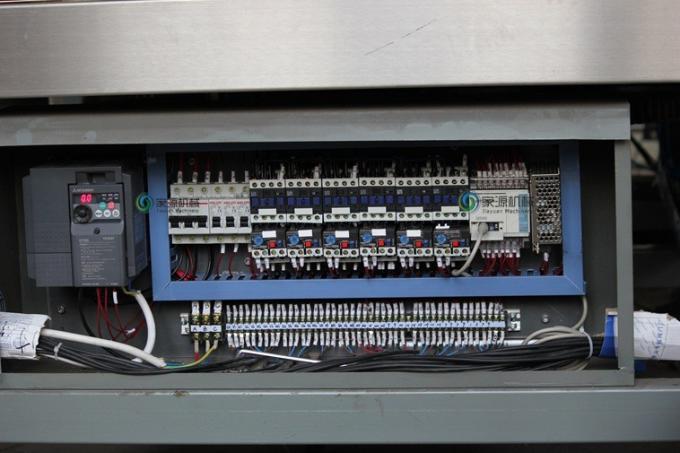

    6. The whole bottle juice filling machine adopts advanced man-machine interface operation, PLC control, variable frequency stepless speed regulation, such as automatic control technology, so that the whole of the high degree of automation, more reliable performance, production capacity can be adjusted continuously.

    Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity 2

    7. The main electrical, pneumatic components are world famous brand.

    Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity 3





    Applications:



    Easy Operate 0.5L Milk Bottle Filling Equipment Combined High Viscosity 4

    1. Juice filling with normal(20-30℃), middle(50-60℃) or high temperature(85-95℃)

    2. Energy drink

    3. Tea beverage

    4. Pure water/mineral water/portable water





    Specifications:



    Model

    RCGF18-18-6

    Capacity:500ml

    4000-6000b/h

    Suitable Bottle:

    Height: 150-310(mm)

    Diameter: φ50-φ92(mm)

    Suitable Cap:

    Plastic Screw Cap

    Filling Pressure:

    0.6Mpa

    Power

    7.08kw

    Size

    2680×1980×2280mm

    Weight

    3000kg





    Competitive Advantage:



    1. Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
    2. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
    3. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
    4. Sanitary filling head system is of umbrella structure, high filling speed.
    5. Perfect filling temperature control system.
    6. Recirculation tank system has the function of supplying the material automatically.
    7. Perfect CIP system.
