Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | CHINA |
Brand Name: | JIAYUAN |
Certification: | CE ISO |
Model Number: | CGF |
Minimum Order Quantity: | 1 set |
---|---|
Price: | please inquire |
Packaging Details: | standard wooden case |
Delivery Time: | 40 working days |
Supply Ability: | 100 sets per year |
Product Name: | Water Filling Machine | Function: | Rinser Filler Capper |
---|---|---|---|
Capacity: | 1000-30000 Bottles/hr | Filling Product: | Water, Juice, Still Beverage |
Control: | PLC+HIM | Filling Accuracy: | 0.5mm |
High Light: | AISI304 auto water filling machine,micro pressure auto water filling machine,PLC HIM water bottling equipment |
Water Bottle Filling Machine, Bottled Water Equipment, Drinking Water Plant
Filling machine description

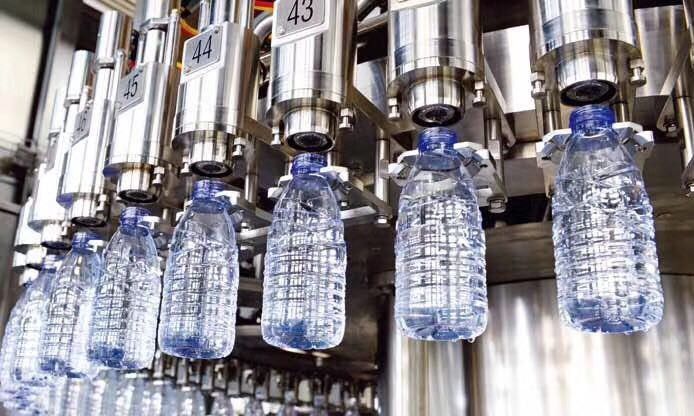

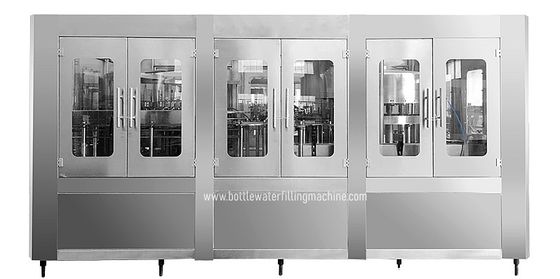

CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 1000BPH to 30000BPH.
The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.
Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.
The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.

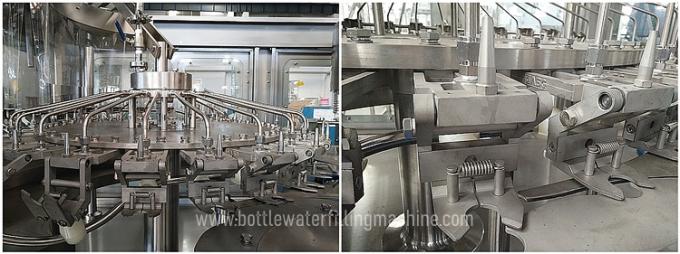

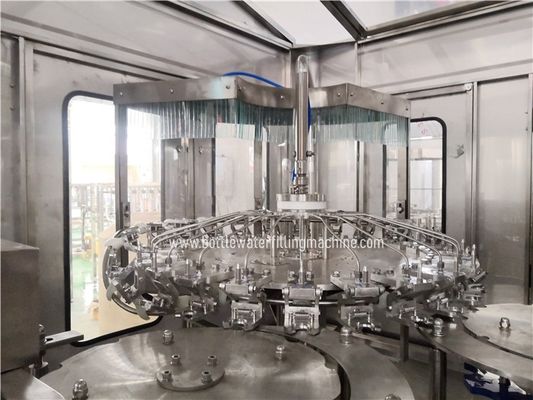

WASHING HEAD
Rotative rinsing turret one treatment, fixed nozzles, with grippers. It is suitable to the inner rinsing of PET bottles. The structure of the rinser is clad with AISI304 stainless steel. All parts in contact with the product are made of AISI stainless steel or food grade plastic material.

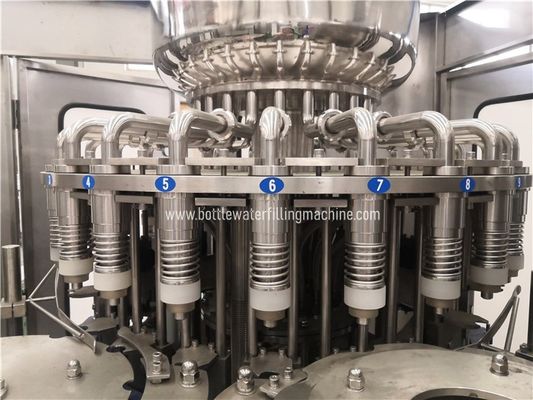

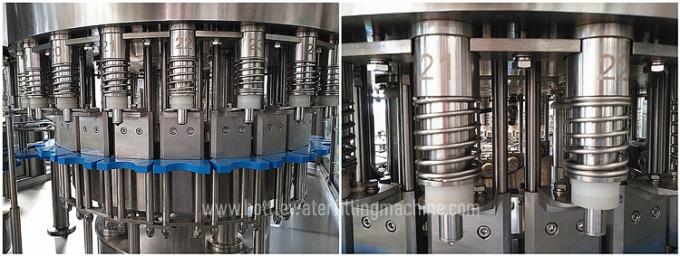

FILLING HEAD
This machine adopts high-speed large gravity flow valve filling valves, which is researched and developed by our Sophisticated R & D team, the adoption of this unique technology can greatly improve the filling speed and filling accuracy in the manufacturing process.

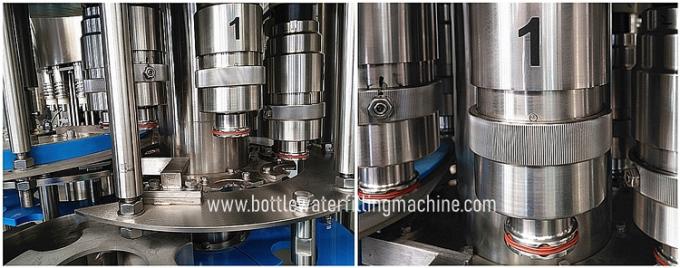

CAPPING HEAD
Rotative capping turrent with heads, it is suitable to the application of screw plastic caps on PET bottles. The capper consists of a steel structure externally clad with a stainless steel AISI304 casing. The main element of this structure is rotating and is supported by a large diameter ball bearing. This rotating member of the capper is fitted with the capping heads, the relevant guides and the bottle holder plates.
suitable bottle | PET bottle,plastic bottle |
Usage | Beverage Filling Packaging |
capacity | 1000-30000bottles/hr |
Material | SUS 304/316L |
Diameter of bottle | 55-110mm |
Height of bottle | 150-310mm |
Suitable cap | Plastic screw cap |
Controller | PLC+ Touch Screen |
Product Keywords | liquid filling machine bottle filling machine,500ml bottled water filling machine,auger filling machine |
We are waiting for your contact......
