Fully Automatic Water Bottle Filling Machine, Mineral Water Production Line

Home Products Water Bottle Filling Machine

Fully Automatic Water Bottle Filling Machine, Mineral Water Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE ISO
Model Number:	RCGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	40 working days
Supply Ability:	300 sets per year

Contact Now

Detailed Product Description

Name:	Filling Machine	Function:	Rinsing Hot Filling Capping
Filling Heads:	24	Capaicty:	10000BPH(500ml)
Filling Material:	Water, Juice, Flavor Beverage	Control:	PLC+HIM+Frequency Inverter
High Light:	10000BPH Water Bottle Filling Machine , 500ml Water Bottle Filling Machine , rinsing filling Mineral Water Production Line

Fully Automatic Water Bottle Filling Machine, Mineral Water Production Line

This is rinsing filling capping tribloc machine, can produce still water, juice, flavor drink, sauce, vinegar and other still beverage.
It adopt back-flow system, can hot filling, filling temperature can be 85 centigrade.

We can provide complete line plants for juice/flavor beverage production:

Process of juice beverage production line

Raw water → raw water tank → booster pump → activated carbon filter → ion softener → precision filter → reverse osmosis unit → ultraviolet sterilizer → pure water tank → pure water pump → automatic filling line → high-speed shear tank → high-temperature pump → sugar → high-temperature pump → syrup filter → blending tank Tank → vacuum degassing machine → temporary storage tank → ultra-high temperature instantaneous sterilization → fully closed heat preservation tank → hot filling and blowing machine → automatic bottle machine → three-in-one machine → lamp detector → inverted bottle sterilizer → spray cooler → automatic set of standard shrinker, strong dryer → inkjet printer →PE film packing machine (packing machine)

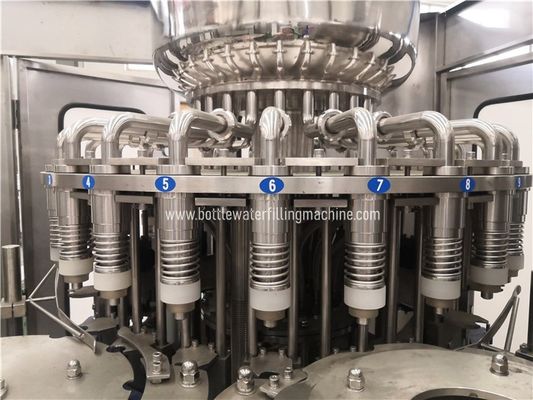

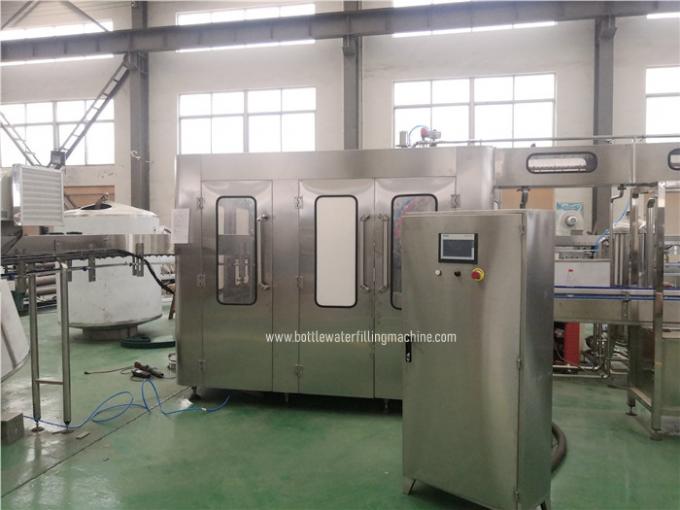

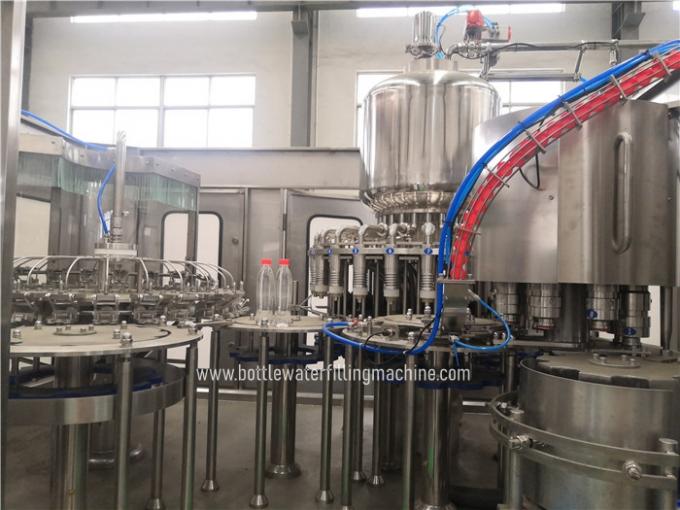

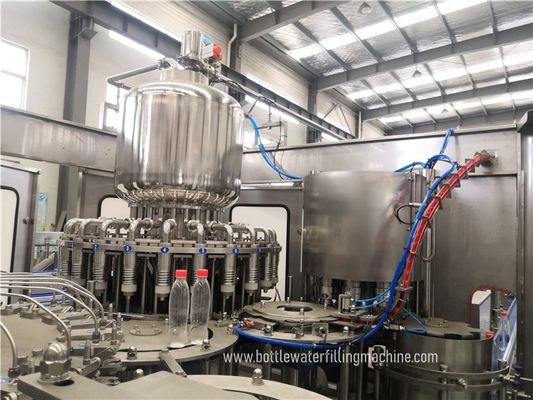

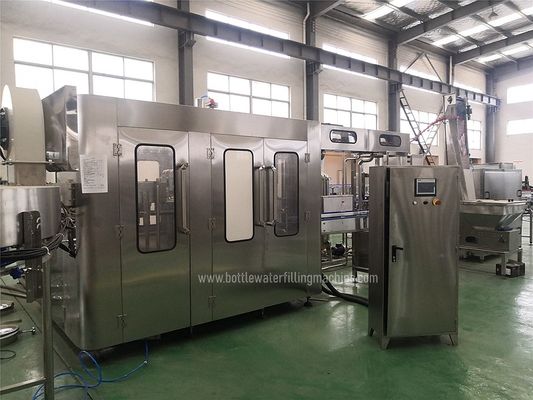

This is rinsing-filling-capping machine RCGF24-24-8

Fully Automatic Water Bottle Filling Machine, Mineral Water Production Line 0

Technical parameter

Model	RCGF12-12-4	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10
Capacity(b/h)	3000-4000	5000-6000	10000-12000	12000-15000
Gas comsumption(m³/min)	0.2	0.4	0.4	0.5
Total power(kw)	4	4.4	5.2	6.2

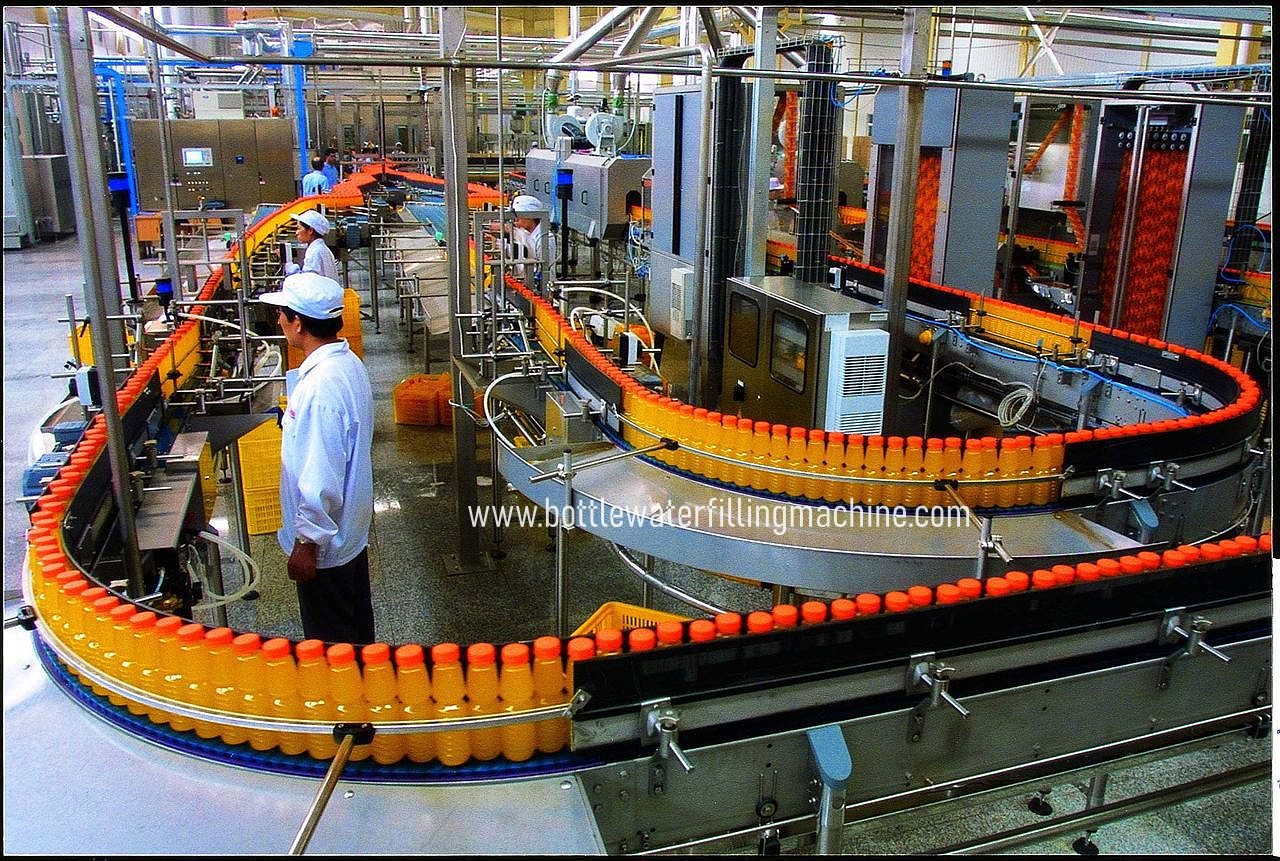

Other plants for juice line
Fully Automatic Water Bottle Filling Machine, Mineral Water Production Line 2

FAQ
Q:Are you a manufacturer or trade company?
A:We are a manufacturer in beverage machine field more than 15 years, located at zhangjiagang city,2 hours from Shanghai,1 hour from Wuxi by car. We will pick you up to visit our factory.

Q:Do you have any certification?
A:SGS,ISO,CE

Q:What about the delivery time?
A:Normally 20 - 40 Working days

Q:The after-sale service
A: 12 months warranty.
solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.

Operating manuals will be sent with machine or by email.
We also have overseas agent in different market.

Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes.just send your new bottle drawing or sample to us.

Q: If I want to buy a machine, what information do I need to tell you, do you need from me?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d. Raw water analysis report .
e. Voltage and factory workshop layout.

Q:What kinds of product you supply?
A: Water purified system / beverage washing filling capping machine / labeling machine / shrink packing machine / PET bottle blowing molding machine / Automatic bottle unscrambler / sterilizer / Carton packing machine / Automatic conveyor system /Juice processing system and so on.
