Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JIAYUAN |
| Certification: | CE,ISO,SGS |
| Model Number: | CGF16-12-6 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | US $8,000 - 1,600,000 / Set |
| Packaging Details: | wooden box |
| Delivery Time: | 30 working days |
| Supply Ability: | 10 Set/Sets per Month |
| Material: | Food Grade Stainless Steel 304 | Packaging Type: | Barrel, Bottles, Cans, Cartons |
|---|---|---|---|
| Voltage: | 380V 50HZ | Power: | 5.03kw |
| Weight: | 3500kg | Filling Capacity: | 2000BPH(500ml) |
| Warranty: | 1 Year | Control System: | PLC Control |
| High Light: | 250ml glass bottle filler,2000BPH glass bottle filler,2000BPH glass milk bottle filling machine |
||

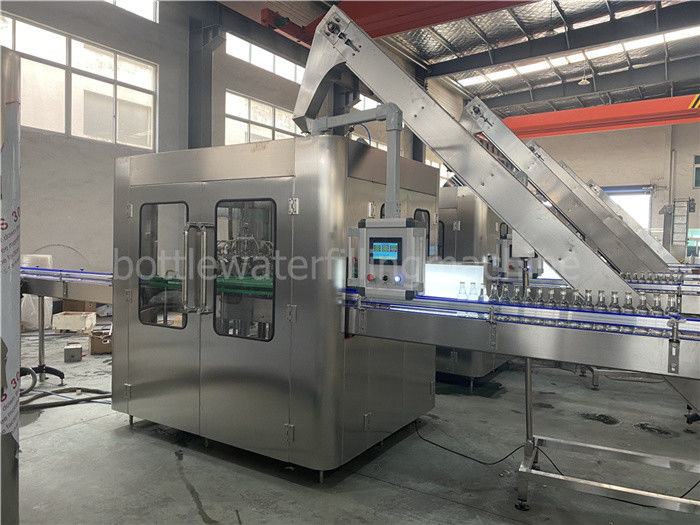

This water filling production line is used in the production of non-carbonated drink, such as mineral water and purified water, etc.
1. The suspending bottle-neck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of different types of bottles easily.
2. The new generation of stainless steel grab is adopted and the grabs have no contact with the arew above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

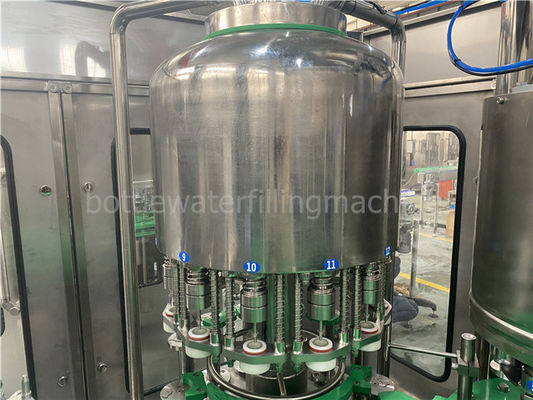

3. The advanced gravity filling technology used in this machine makes the filler quick,steady and accurate.

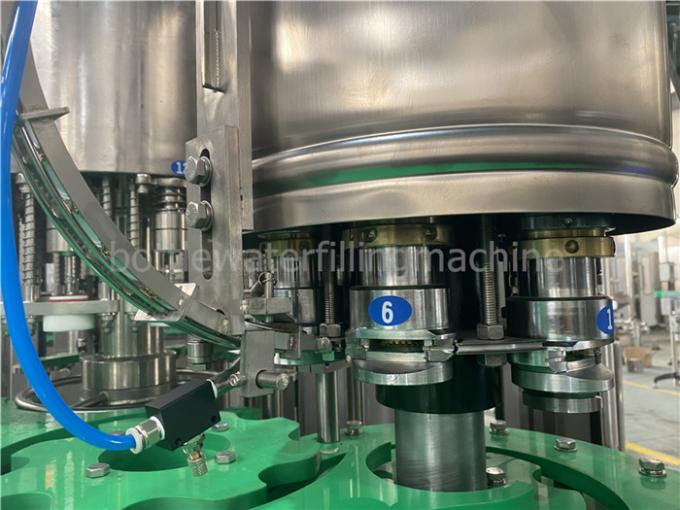

4. Magnetic torque is used for screw capping,and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.
5. Advanced technologies,such as human-machine interface touch-screen and PLC program control are adopted in this machine.
Main technical parameters:
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | |
|
Production Capacity (500mm)(b/h) |
2000 | 4000 | 6000 | 8000 | 10000 | |
| Filling Precision | ≤±5mm(Liquid Level) | |||||
| Polyester Bottle Standard(mm) | Bottle DiameterΦ40-Φ80,Height:130-280 | Bottle DiameterΦ50-Φ100,Height:150-320 | ||||
| Suitable Cap Shape | Plastic Screw Cap | |||||
| Water Pressure of Washing Bottle(Mpa) | 0.18 | |||||
| Water Consumption for Water Bottle(kg/h) | 800 | 1600 | 2500 | 3500 | 1000 | |
| Spraying Position | 5 | 5 | 6 | 12 | 5 | |
| Dripping Bottle Position | 3 | 3 | 3.5 | 7 | 8 | |
| Gas Source Pressure(Mpa) | Normal Pressure | |||||
| Gas Consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.5 | 0.6 | |
| Total Power(kw) | 4.23 | 5.03 | 6.57 | 8.63 | 9.63 | |
| Total Weight | 2000 | 3500 | 5500 | 6000 | 8000 | |
| Dimension(L*W*H)(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3500*2200*2250 |
3500*2200*2250 |
|
If possible, please send me the pictures of your product.
We will choose the best machine model for you.
Looking forward to your inquiry!!Thank you very much!!!
