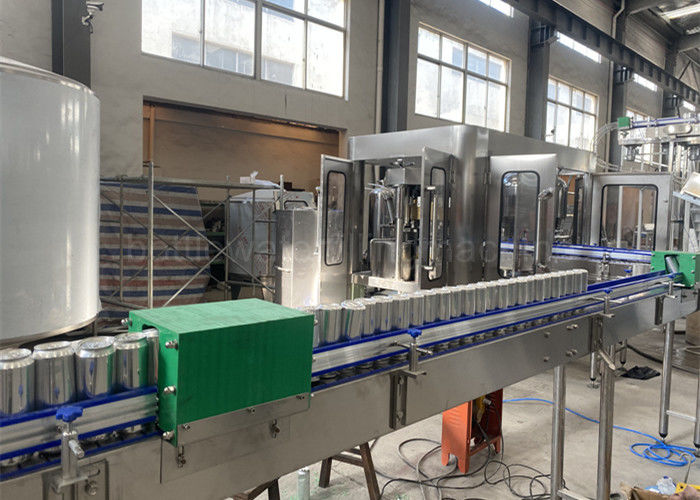

6000can/H 54.9mm Fruit Juice Aluminum Can Filling Machine Non Gassy

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jiayuan
Certification:	CE ISO SGS
Model Number:	GF12-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	US $8,700-500,000 / Set
Packaging Details:	Plastic film wrapping,wooden boxes packaging
Delivery Time:	30 working days
Payment Terms:	L/C, T/T
Supply Ability:	15 Set/Sets per Month

Contact Now

Detailed Product Description

Filling Material:	Non-gas Beverage	Weight:	3450KG
Function:	Filling Sealing	Warranty:	1 Year
High Light:	6000can/h Fruit Juice canning machine , 54.9mm Aluminum Can Filling Machine , 6000can/h Aluminum Can Filling Machine

Filling Material:

Non-gas Beverage

Weight:

3450KG

Function:

Filling Sealing

Warranty:

1 Year

High Light:

6000can/h Fruit Juice canning machine

54.9mm Aluminum Can Filling Machine

6000can/h Aluminum Can Filling Machine

2 In 1 Unit Tea Drink Aluminum Can Filling Machine , Vegetable / Fruit Juice Canning Machine

This machine is developed by our company on the basis of reference to the foreign filling and sealing machine for non gassy beverage and combining with China's national conditions.It is mainly used for filling and sealing all kinds of iron and aluminum cans.It has the characteristics of fast filling and sealing speed, consistent height between the liquid level in the tank and the opening after filling, stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, frequency conversion speed regulation and so on. It is the most ideal filling and sealing equipment for canning factories.This product conforms to the national standards and enterprise standards, and is allowed to leave the factory after passing the strict inspection and test.

Technical parameter

Model	GF12-4
Capacity (can/Hour)	6000
Suitable can size ( ml )	Can diameter: 54.9mm; 57.5mm Can height:134mm; 168mm
Can size	200/202/206/209
Heads of filling	12
Heads of sealing	4
Compressed air:	0.4-0.8mpa, flow rate: 0.16m3/min
Filling temperature(℃ )	Normal temp
Power source specification	AC380V/50HZ
Power (kw)	10
Overall dimension(mm)	345016002150
Weight(kg)	3450

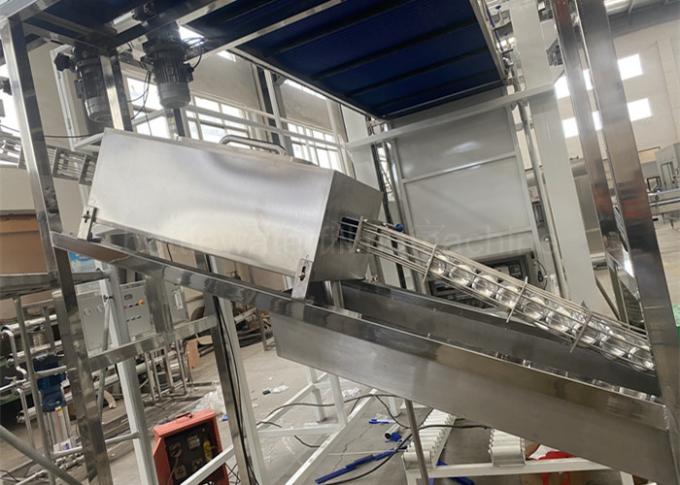

Can washer

6000can/H 54.9mm Fruit Juice Aluminum Can Filling Machine Non Gassy 0

Common faults and troubleshooting

No	Common faults	troubleshooting
1	the filling volume of each valve	Adjust the round nut of the fixed sealing ring
2	The lid does not fall smoothly	The distance of the lid faller is shifted. Check whether the bolt is loose. If it is found, adjust it and check whether the lid is damaged.
3	After the filled can is sealed, the lid is damaged	1. The bolt on the sealing shaft is loose, please adjust it. 2. There is burr on the sealing head, please polish it.
4	lid slide way is not smoothly	There is burr in the slide way,please polish it.
5	After the filled can is sealed,it can’t meet the technical requirement	1.The roller indenter produces burrs ,it need to be replaced. 2.The spring deformation or looseness in the chassis device,it should be adjusted or replaced. 3.The gap between the roller and the indenter is displaced, please adjust it.
6	The machine suddenly stops when it is running	1. There is a foreign matter stuck between the transmission gears, please remove it. 2. The small shaft of the mandrel in the support chassis is loose, and the small shaft bolt should be tightened. 3.The bearing in the rotating body is damaged, please replace it.
7	Cans fall down when feeding cans	1. the pulling wheel or the can feeding chain shift.Please adjust 2. The baffle in the can feeding device is displaced, please adjust it. 3. The baffle is shifted in the cover drop device, please adjust it.
