Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | CHINA |
| Brand Name: | JIAYUAN |
| Certification: | CE ISO |
| Model Number: | RCGF50-50-15 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | please inquire |
| Packaging Details: | standard wooden case |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 sets per year |
| Product: | Juice Bottling Machine | Function: | Rinser Filler Capper |
|---|---|---|---|
| Rinsing Heads: | 50 | Filling Heads: | 50 |
| Capping Heads: | 15 | Speed: | 24000BPH |
| Contraol: | PLC+Touch Screen | Suitable Bottle: | 200-2000ml |
| High Light: | Hanging Conveying 24000BPH juice filling machine,Hanging Conveying Juice Bottle Machine,24000BPH 2000ml juice bottle filling machine |
||
Automatic Hot Juice Filling And Sealing Machine, Fruit Juice Production Line
Product Application :
This washing filling capping machine is mainly used for hot filling beverage , such as beverage juice / tea and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit.
Capability Character :

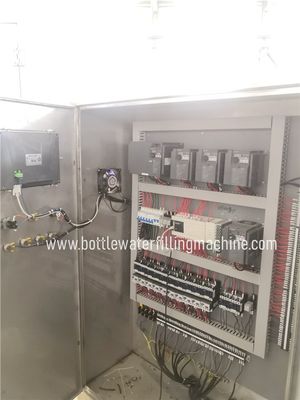

It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
| Equipment Type | Automatic |
|
Bottle Type |
PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm |
| Output <bph> | 1000 up to 30,000 bottles/hr |
| Your product | Beverage juice / tea and hot filling juice .etc |
| Certificates | CE / SGS / ISO 9001 |
Filling Machine Benefits
1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime

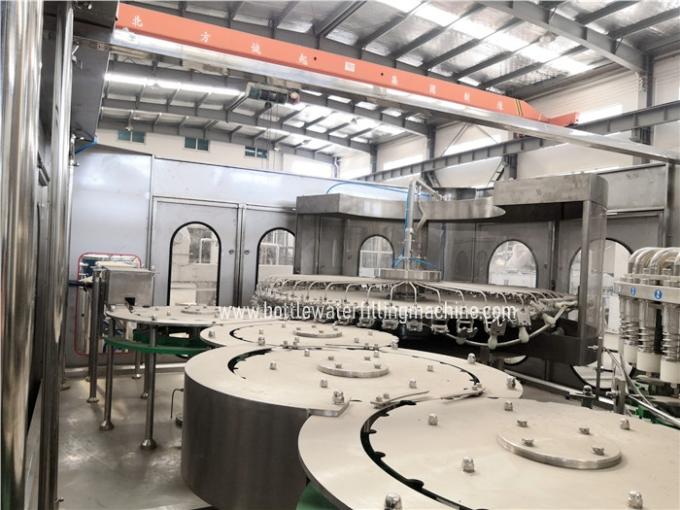

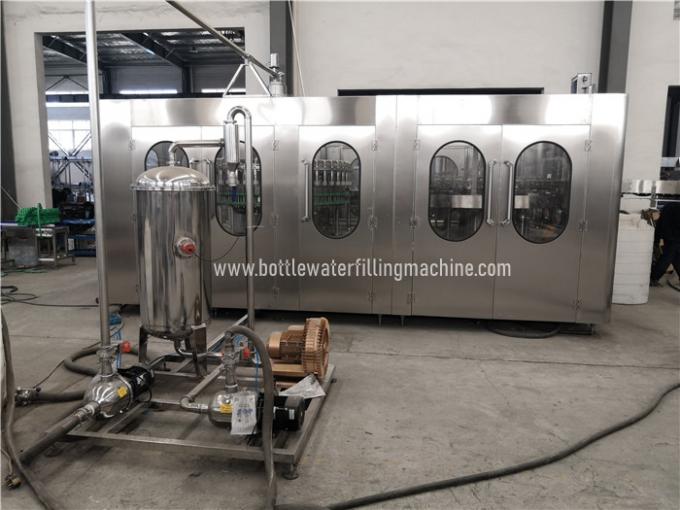

This is 24000BPH rinser filler capper 3-in-1 machine, CGF50-50-15
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
Rinsing Part
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Installation and commissioning
After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time.
Training
The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.
After-sales service
1) After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
