2.2KW 16 Heads 5500B/H PET Bottle Mango Fruit Juice Filling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE ISO
Model Number:	RCGF50-50-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	40 working days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets per year

Contact Now

Detailed Product Description

Product:	Juice Bottling Machine	Function:	Rinser Filler Capper
Rinsing Heads:	50	Filling Heads:	50
Capping Heads:	15	Speed:	24000BPH
Contraol:	PLC+Touch Screen	Suitable Bottle:	200-2000ml
High Light:	2.2KW 5500B/H juice filling machine , 2.2KW 5500B/H fruit filling machine , 16 Heads 2.2KW fruit juice filling machine

Technical Parameter

model	RCGF8-8-3	RCGF14-12-5	RCGF16-16-5	RCGF24-24-6
capacity(BPH)	1500	4000	5500	8000
washing heads	8	14	16	24
filling heads	8	12	16	24
capping heads	3	5	5	6
suitable bottle	PET bottle plastic bottle
diameter of bottle	55-100mm
height of bottle	150-300mm
suitable cap	plastic screw cap
weight(kg)	1500	2000	3000	5000
main motor power(kw)	1.2	1.5	2.2	2.2

Products Description

Pineapple Juice Filling Machiners, Lemon Juice Planting Machinery, Juice Bottling

Application
Tea,juice,functional drink,milk beverage etc.

Process of juice beverage production line

Raw water → raw water tank → booster pump → activated carbon filter → ion softener → precision filter → reverse osmosis unit → ultraviolet sterilizer → pure water tank → pure water pump → automatic filling line → high-speed shear tank → high-temperature pump → sugar → high-temperature pump → syrup filter → blending tank Tank → vacuum degassing machine → temporary storage tank → ultra-high temperature instantaneous sterilization → fully closed heat preservation tank → hot filling and blowing machine → automatic bottle machine → three-in-one machine → lamp detector → inverted bottle sterilizer → spray cooler → automatic set of standard shrinker, strong dryer → inkjet printer →PE film packing machine (packing machine)

The next machine is CGF50-50-15, which capacity is 22000-24000BPH

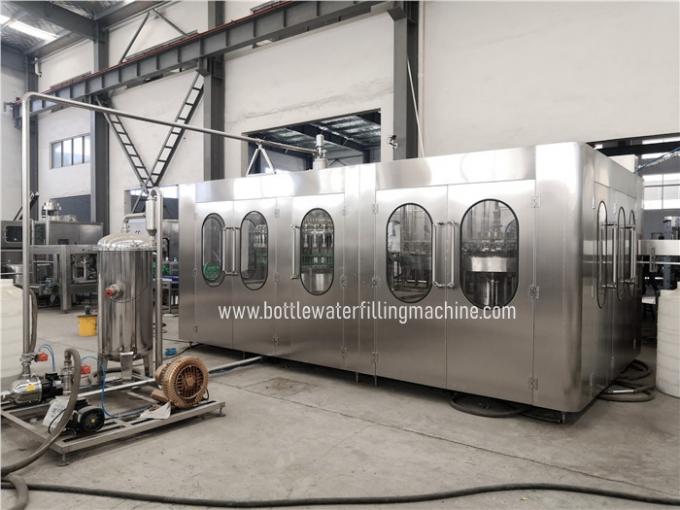

2.2KW 16 Heads 5500B/H PET Bottle Mango Fruit Juice Filling Machine 0

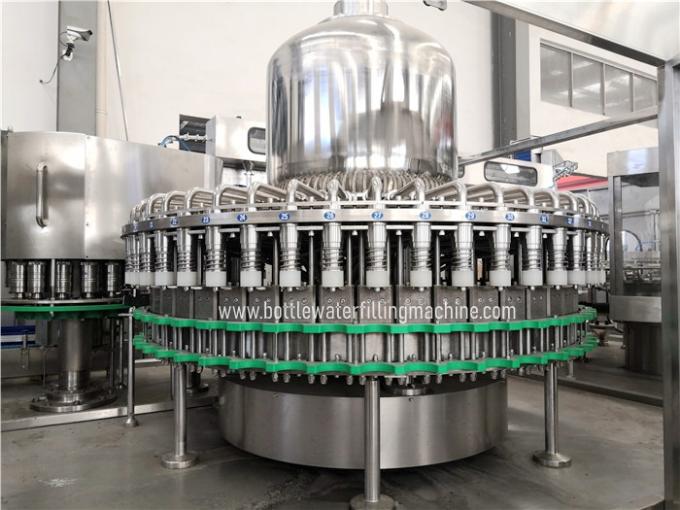

2.2KW 16 Heads 5500B/H PET Bottle Mango Fruit Juice Filling Machine 1

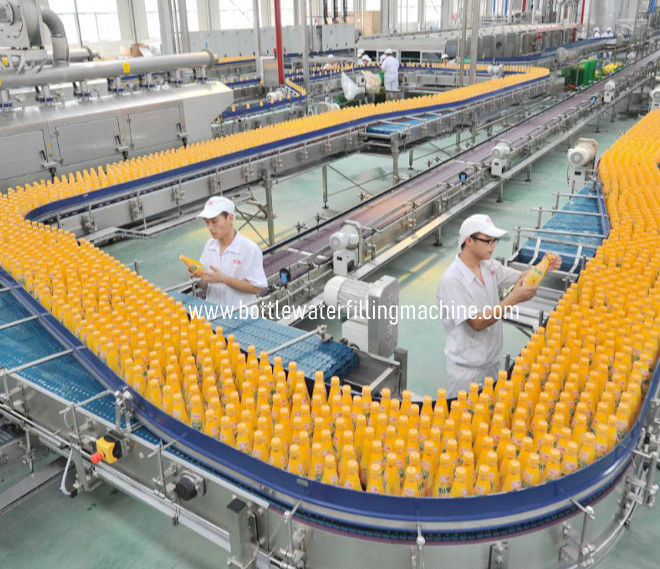

2.2KW 16 Heads 5500B/H PET Bottle Mango Fruit Juice Filling Machine 2

We provide the turn-key solution, including: water treatment system, injection system, bottle blowing machine, bottle filling machine, packaging machine, conveyor system, electrical system, cable wire, etc, and related raw materials: bottle preforms, bottle cap, plastic particles, labels, shrink film, clean room building material etc. The corresponding pre-sale whole plant planning drawings and after-sales installation and debugging maintenance, we all have a A to Z complete service.

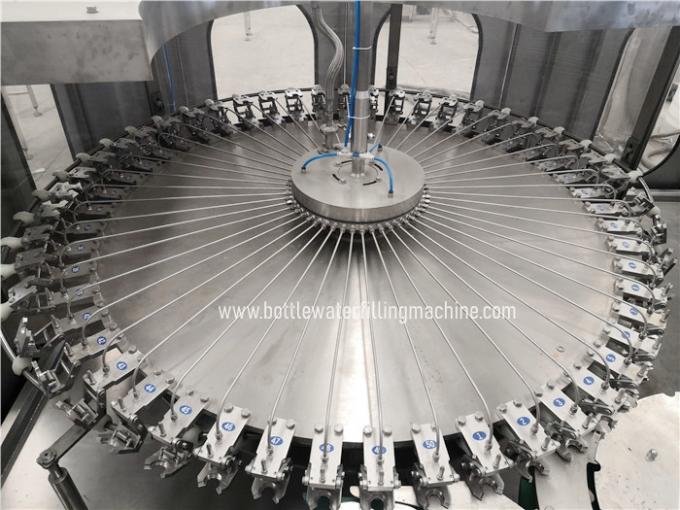

2.2KW 16 Heads 5500B/H PET Bottle Mango Fruit Juice Filling Machine 3

OUR SERVICE

Bottle Design Service

Our engineer can design different bottle drawing for your reference!
Contact Us: We will send design drawing!

Layout Design Service
We supply standard layout for each water filling machine line,
also available for customize design layout based on Customers Factory Area!
Give US: Factory Area

Label Design Service
Design colorful label for customers choice

FAQ

Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.

Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
