Rinser Filler Cacpper 1000bph Glass Milk Bottle Soda Filling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE ISO
Model Number:	BDCGF16-12-6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	40 working days
Supply Ability:	300 sets per year

Contact Now

Detailed Product Description

Product Name:	Glass Bottle Filler	Funtion:	Rinser Filler Cacpper
Filling Material:	Beer, Carbonated Soft Drink, Soda	Capacity:	1000-3000bottles/hr
Suitable Bottle:	Glass Bottle 20-200cl	Control:	PLC+HMI
High Light:	Rinser Filler Cacpper 1000bph filling machine , 1000bph glass milk Soda filling machine , PLC glass bottle packaging machine

Glass Bottle Filling Machine, Beer Equipment Filling Machine, Soft Drink Plant

Introduction

Final product: beer, carbonated soft drink, soda drink, cola

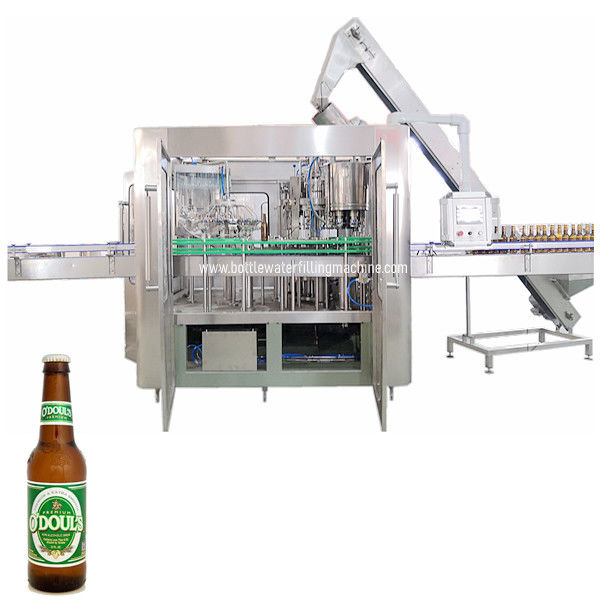

Rinser Filler Cacpper 1000bph Glass Milk Bottle Soda Filling Machine 0

This is glass bottle filling machine, which combines riner filler and capper

in one unit, can fill different size bottle, 200-2000ml only by changing some

changeoers.

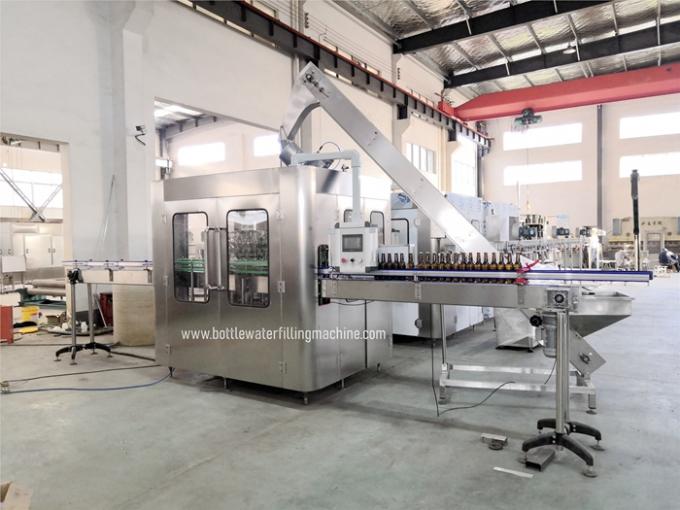

Machine show

16-12-6 Glass Bottle Beer Filling Machine

1, This machine is using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.

2, This machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

3, Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading,

reducing the rate of broken bottles.

5,This machine adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.

Rinser Filler Cacpper 1000bph Glass Milk Bottle Soda Filling Machine 1

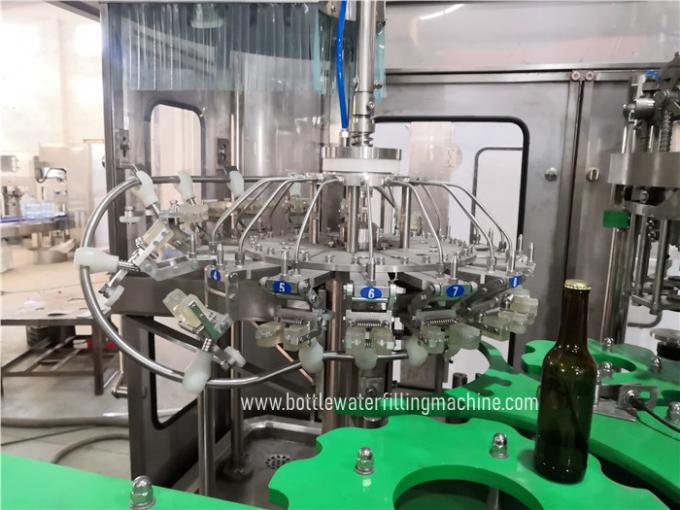

1. Washing part

1.The glass bottle washing filling capping machine is a rotary bottle washing machine, it adopts water spray

to clean the bottle.
2.Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber

clip to block the bottle thread parts may be caused by the pollution.

Rinser Filler Cacpper 1000bph Glass Milk Bottle Soda Filling Machine 2

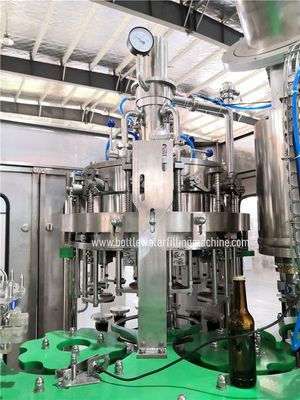

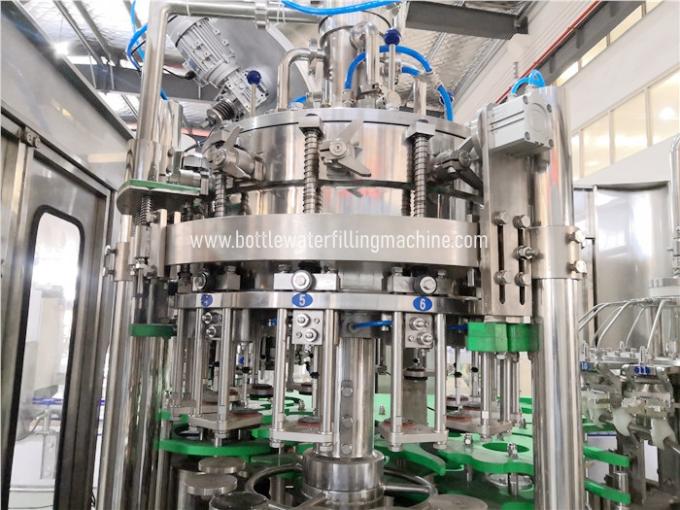

2. Filling part

Wine filling machine is specially designed according to the beer feature, and the filling part is designed to

be twice pre-evacuation.

The filling part is made up of main liquid pipe, rotating cylinder bearing base, filling cylinder fulcrum loop,

beer tank, filling valve, filling cylinder pipe, control loop device, ascending device, the distributor, height

adjusting control, stimulating bubble arm, vacuum system, etc.

Rinser Filler Cacpper 1000bph Glass Milk Bottle Soda Filling Machine 3

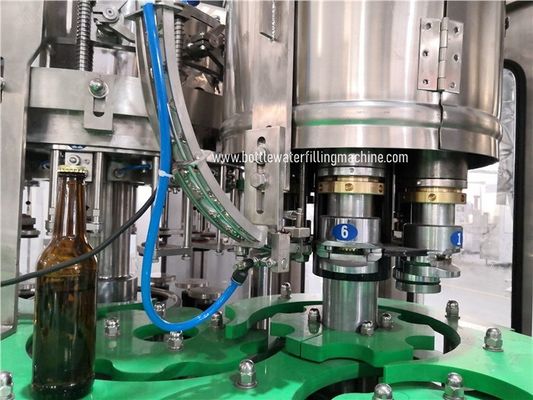

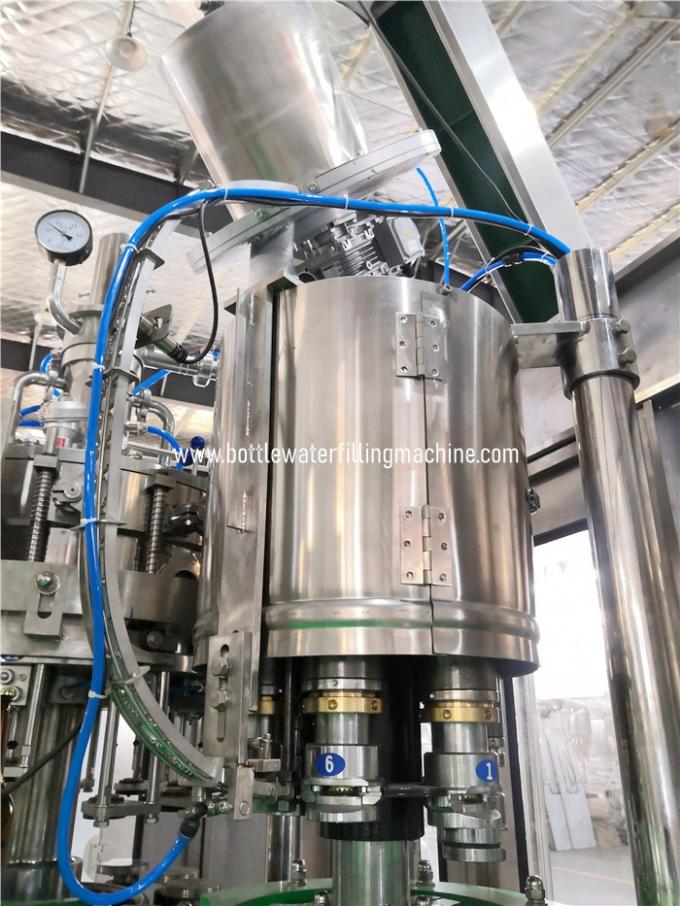

3 Capping part

The capping machine is made up of cap holder, capping slideway, capping upper part, capping lower part,

elevating part and anti-circling column.

After the bottle is transmitted from the filling machine, the capping nozzles have been fed with a bottle cap.

The capping nozzles moves downwards the bottle under the capping platform driven by cam guideway, then

the bottle cap with the aid of the damping ring.

Rinser Filler Cacpper 1000bph Glass Milk Bottle Soda Filling Machine 4

Parameter

Item	Parameters	Item	Parameters
Washing heads	16	Vacuum pump	0. 20m3/h
Filling heads	12	Power	main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor:1.1KW chain motor: 0.75KW
Capping heads	6	Dimensions	Accoring to the machine
Capacity	1000-3000BPH	N.W.	2500kg
Bottle type	height:150~ 300mm bottle neck:50~85mm bottle diameter: 50-75mm	Working voltage AC	It can be customized by the customers'electrical conditions.
Air consumption	0.15m3/min(0.4~0.6Mpa)	Control voltage DC	It can be customized by the customers'electrical conditions.
CO2consumption	1.6kg/l000L	Frequency converter	SIEMEMS
Water consumption	0. 8m3/h	PLC	SIEMEMS
Touch screen	PLC	Pneumatic element	SMC

Advantage:

The machine is our patent product.
The machine adopts the counter pressure filling technology which can realize the requirements of twice vacuum, co2 injection.
The machineadopts 3 in 1 compact design, easy to operate and maintain.
Using the external filling valve can ensure the quality of beer
Using mechanical gland instead of pneumatic gland improves the quality and stability of gland. All mechanical transmission, basically reaching zero failure rate.
Two times of vacuumizing and two times of carbon dioxide filling can minimize the amount of oxygen dissolved and maintain the taste of beer. Equal pressure filling makes the filling process more stable.
The application of the sensor realizes filling only when there is bottle, no bottle, no filling, and the beer scrap rate is less than 0.8%.
All cables are installed on the top of the equipment, making it safer to use.
