Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production

Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production

    • Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production
    • Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production
    • Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production
    • Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production
  • Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: RBCGF24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: please inquire
    Packaging Details: standard wooden cases
    Delivery Time: 50 days
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Glass Bottle Filling Machine Function: Washing Filling Capping
    Filling Material: Juice, Flavor Drink, Water Capacity: 1000-24000Bottles/hour
    Material: Stainless Steel SUS304 Voltage: 380V 50HZ(Can Be Customized)

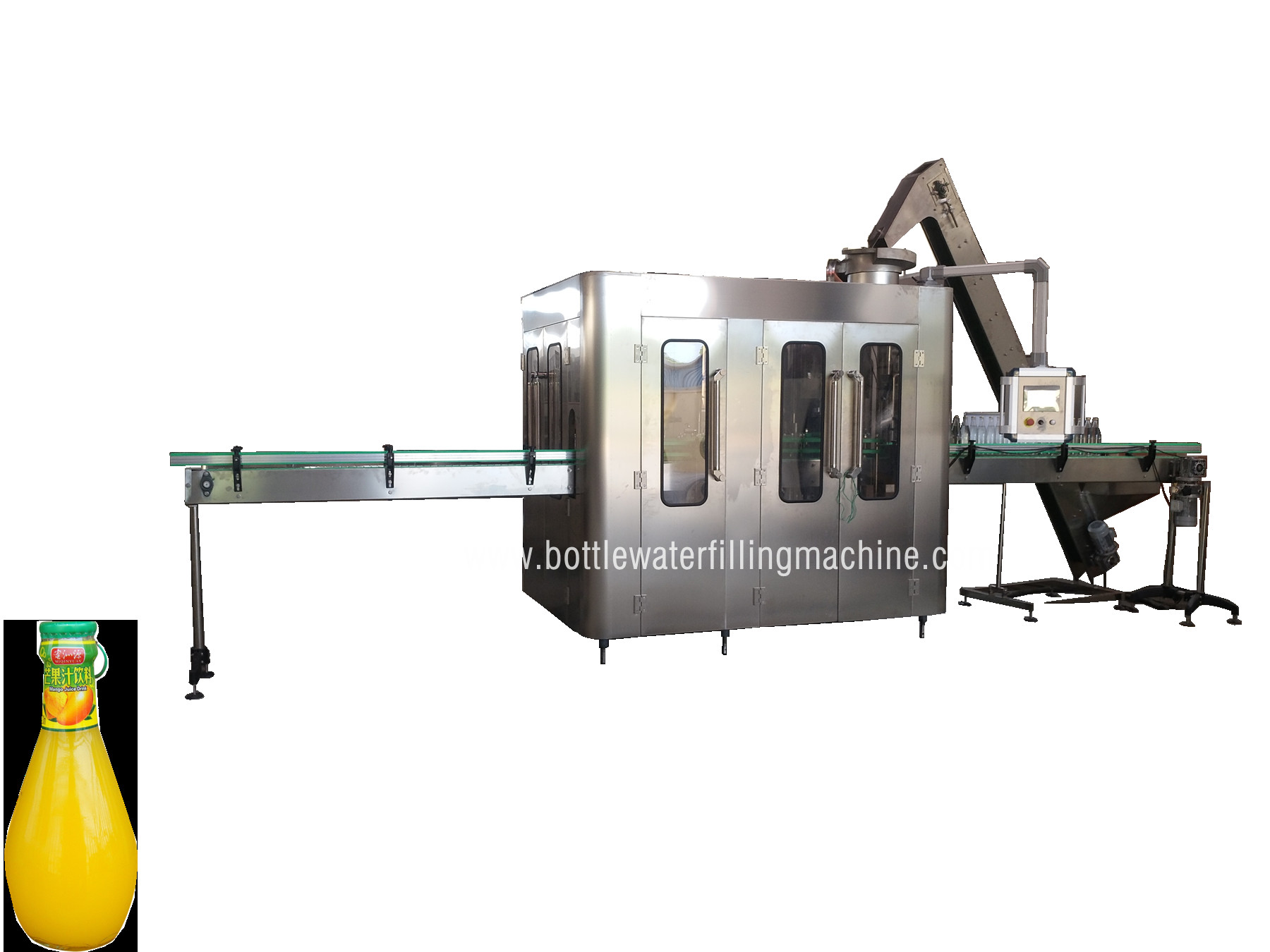

    Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production



    This machine is used to fill various glass bottle juice, flavor drink, liquor, alcoholic beverage,

    dairy drink, and other still beverage. The machine has many models, capacity ranges from

    1000 bottles per hour to 24000BPH, the suitable bottle is 200-2000ml.

    The capper can be customized, the available choise is twist-off cap, aluminum screw cap,

    crown cap, ring-off cap and others.

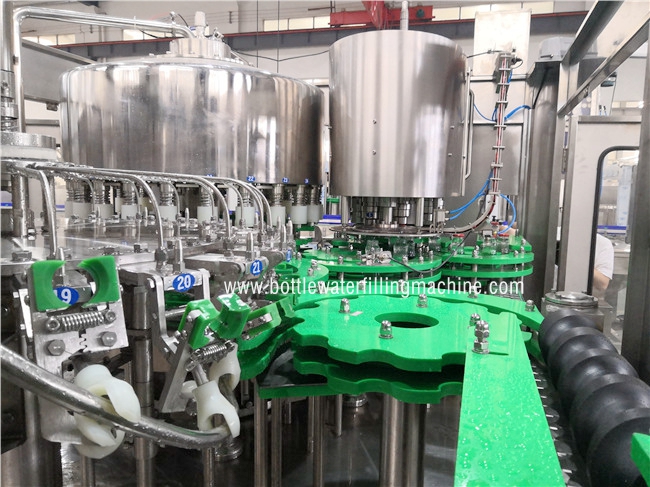

    Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production 0



    Feature

    1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic

    synchronized working.Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.

    2. Pressure or vacuum filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.

    3. No Bottle No Filling, no caps no capping, no caps auto stops.When bottle jam auto stop, machine accident auto stop.

    Open the window when machine running, machine auto paused.Heavy duty stainless steel filling pump & rinsing pump.

    Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles.

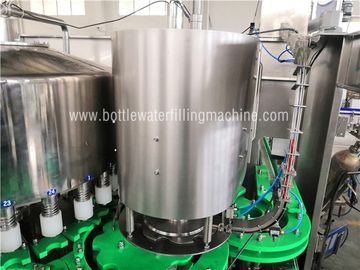

    Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production 1

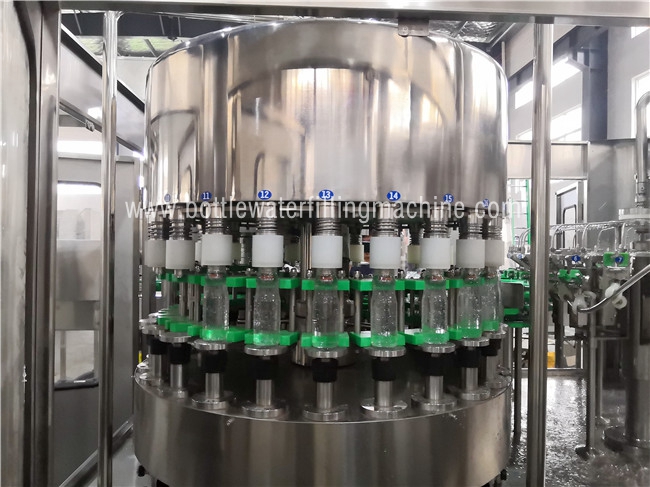

    Glass Bottle Filling Twist Off Sealing Packing Machinery, Small Juice Production 2



    The main technical parameters:



    Model BRCGF16-12-6 RBCGF18-18-6 BRCGF24-24-8 BRCGF32-32-10
    Production capacity(600ml)(b/h) 3000 5000 7000 10000
    Filling precision Less than or equal to +5MM
    Polyester bottle stand (mm)

    Bottle diameter 50-100;

    Height 150-320

    Suitable cap shape Plastic screw cap
    Water pressure of washing bottle (mpa) Less than or equal to 0.4
    Total power (kw) 4.4 5.2 6.2 6.2
    Total weight(kg) 2500 3000 4000 5000
    Dimension(lxwxh)mm 2250X1640X2100 2430X1800X2100 3050X2060X2100 4050X2300X2100



    FAQ

    Q1:Are you manufacturer or trading company ?

    A1: We are industrial manufacturer, which locates in Zhangjiagang city over 10years , and begin to export our machines and provides oversea installation services since 2010 .

    Q2:How can we get your suitable machines / production line ?

    1. Let me know what kind of products will you produce ?

    2. Let me knw what is the capacity(per hour) you want ?

    3. Let me know what kind of package , plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details



    Q3: Where is your factory?

    A3: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.

    Q4: Do you have any technical supports with your Beverage Filling Machines?

    A4: Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

    Q5: What kind certificates you already passed ?

    We already passed CE , SGS , CIQ , ISO etc.

    Q6: Do you support Alibaba Trade Assurance Order ?

    Yes , you could sponsor and place Trade Assuracne Order to get guarantee from ALIBABA guarantee .
