Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | CHINA |
| Brand Name: | JIAYUAN |
| Certification: | CE SGS |
| Model Number: | RCGF |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | please enquire |
| Packaging Details: | standard wooden case |
| Delivery Time: | 45 working days |
| Supply Ability: | 100 sets per hour |
| Product Name: | Bottling Machine | Material: | Stainless Steel SUS304 |
|---|---|---|---|
| Filling Material: | Juice, Flavor Water, Tea Drink | Suitable Bottle: | PET Bottle |
| Bottle Size: | 250-2000ml | Control: | PLC HMI |
| High Light: | 250ML litchi juice filling machine,automatic litchi juice filling machine,plastic litchi juice filling machine |
||

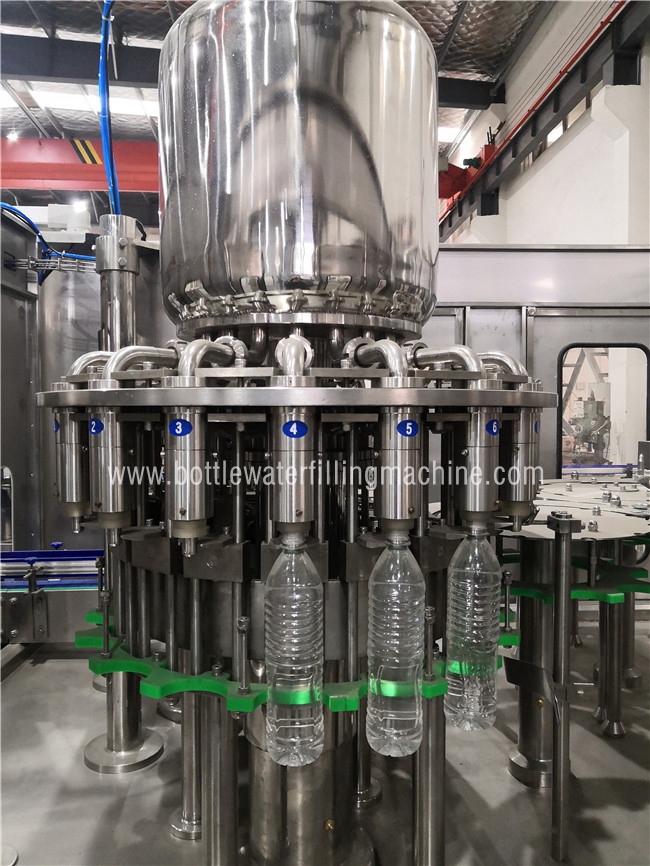

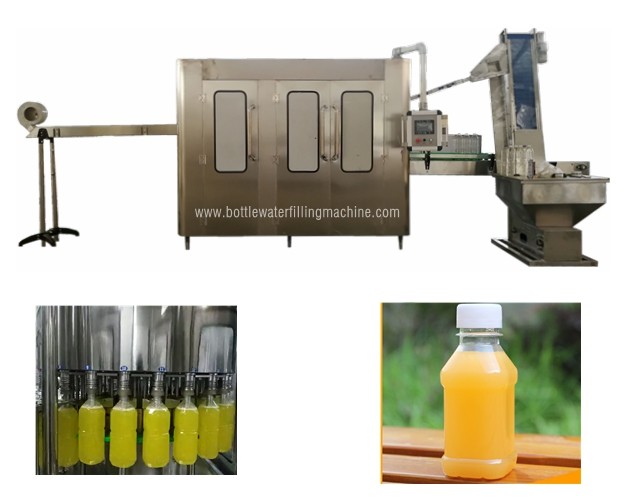

This machine is used to produce bottled juice, flavor water, drinking water, tea drink, vinegar, or other still beverage.
The available capacity is from 2000 bottles per hour to 30000BPH, the suitable bottle is from 250-2000ml,
only need to change some changeovers can use different bottle.

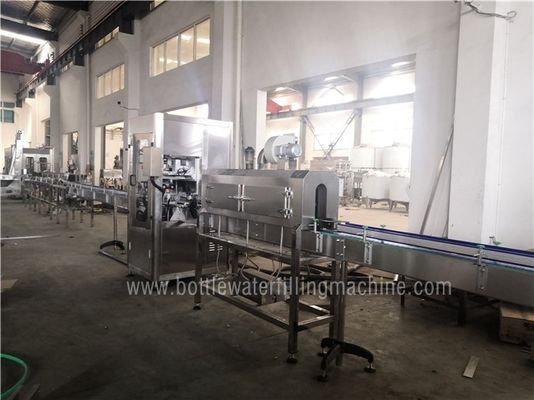

We can provide the complete line plants
Technical parameter
| Model | Washing heads | Filling heads | Capping heads | Productivity(b/h)
(500ml) |
Motor power (kw) |
Overall dimension (mm) |
Weight (kg) |
| RCGF14125 | 16 | 12 | 6 | 3000-4000 | 6 | 2250*1600*2300 | 2800 |
| RCGF18186 | 18 | 18 | 6 | 5000-6000 | 6 | 2300*1700*2300 | 3000 |
| RCGF24248 | 24 | 24 | 8 | 8000-12000 | 7 | 2900*1900*2300 | 5000 |
| RCGF323210 | 32 | 32 | 10 | 12000-15000 | 9 | 4300*3500*2300 | 6000 |
| RCGF404012 | 40 | 40 | 12 | 15000-18000 | 13 | 4300*3900*2300 | 8000 |
| RCGF505012 | 50 | 50 | 15 | 18000-22000 | 16 | 4600*4300*2300 | 10000 |
| RCGF606015 | 60 | 60 | 15 | 20000-25000 | 19 | 5100*4600*2300 | 12000 |
2.Quality control
JINYATE machines all parts adopts CNC (computer numerical control machine tools) for processing.Precision was improved greatly.
3. Reasonable Price
JINYATE machines are highest cost performance. Our machines and good service worth your cost.
4. Warranty
JINYATE provide 24 months long warranty, free parts and effective service in a timely manner. After the warranty, lifelong provide widely favorable technical support and after-sales service.
5. Turn-Key Project
JINYATE-turnkey Project including pre-sale and after-sale service, can provide the whole production line, factory design, design bottle, provide a layout diagram, provide auxiliary materials supply agent information, machine installation and debugging, staff training and so on.
