SGS 5 Gallon Water Bottle Filling Station 20L Jar Packaged Drinking Water

SGS 5 Gallon Water Bottle Filling Station 20L Jar Packaged Drinking Water

    • SGS 5 Gallon Water Bottle Filling Station 20L Jar Packaged Drinking Water
    • SGS 5 Gallon Water Bottle Filling Station 20L Jar Packaged Drinking Water
    • SGS 5 Gallon Water Bottle Filling Station 20L Jar Packaged Drinking Water
  • SGS 5 Gallon Water Bottle Filling Station 20L Jar Packaged Drinking Water

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: QGF-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 50000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Power: 3.8kw
    Warranty: 1 Year For Free Power Supply: 380V/50HZ(adjustable)
    Automatic Grade: Fully-automatic Dimension(L*W*H): 3800*1300*1600MM
    Filling Bottle Size: 3-5gallen/3-19L Capacity: 300bottles Per Hour
    High Light:

    5 gallon water bottle filling machine

    ,

    5 gallon filling machine

    20L Jar Packaged Drinking Water Bottling Machine Line / 5 Gallon Water Bottle Filling Station Near Me







    Introduction:

    QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.




    You can click this below picture to see the video:
    SGS 5 Gallon Water Bottle Filling Station 20L Jar Packaged Drinking Water 0
    https://youtu.be/fFrnRsd0lNw



    Technical parameter

    Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
    Filling heads 1 2 3 4 6
    Volume 18.9 18.9 18.9 18.9 18.9
    Barrel size 270*490 270*490 270*490 270*490 270*490
    Capacity 150 300
    Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
    Gas consumption 0.37 0.6 0.8 1 1.2
    Motor power 1.75 3.8 3.8 7.5 9
    Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
    Weight 700 1200 1600 2000 3500
    Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

    4200*2300*1600

    2800*1000*1600

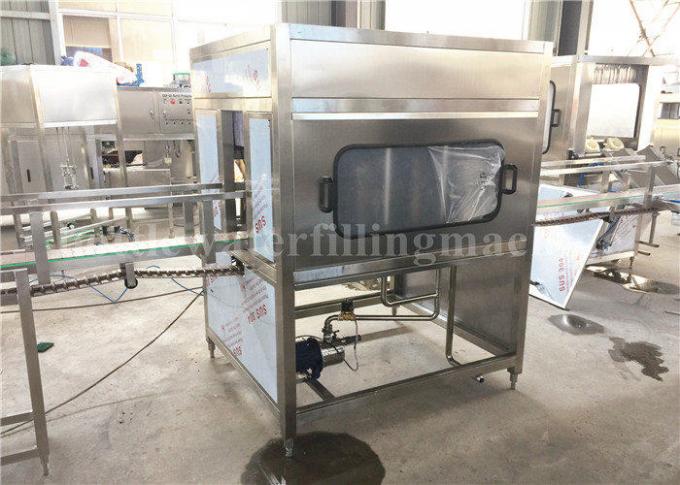

    Automatic outer brushing machine

    Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

    SGS 5 Gallon Water Bottle Filling Station 20L Jar Packaged Drinking Water 1

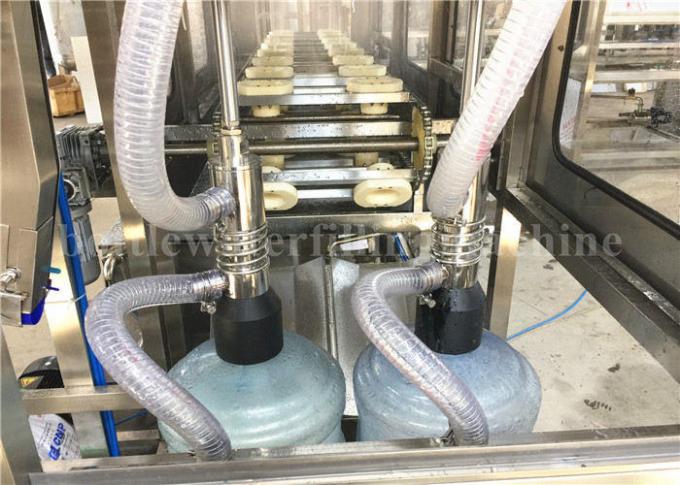

    2 heads filler
    1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
    2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
    SGS 5 Gallon Water Bottle Filling Station 20L Jar Packaged Drinking Water 2


    Characteristics:

    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

    2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

    3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

    4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

    5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

    6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
