Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JIAYUAN |
| Certification: | CE,ISO,SGS |
| Model Number: | DGCF18-18-6 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $30,000 - 560,000 / Set |
| Packaging Details: | wooden box |
| Delivery Time: | 30 working days |
| Supply Ability: | 10 Set/Sets per Month |
| Dimension(L*W*H): | 2450*1800*2200mm | Filling Capacity: | 4000BPH(500ml) |
|---|---|---|---|
| Filling Type: | Balanced Pressure | Weight: | 3000kg |
| Power: | 5.03KW | Voltage: | 380V/50HZ |
| Automatic Grade: | Fully-automatic | Function: | Washing Filling Capping |
| High Light: | glass bottling machine,glass bottle filler |
||
Video show:
https://www.youtube.com/watch?v=GPTohJGTaE4&feature=share
Click the below picture,you can see the video:

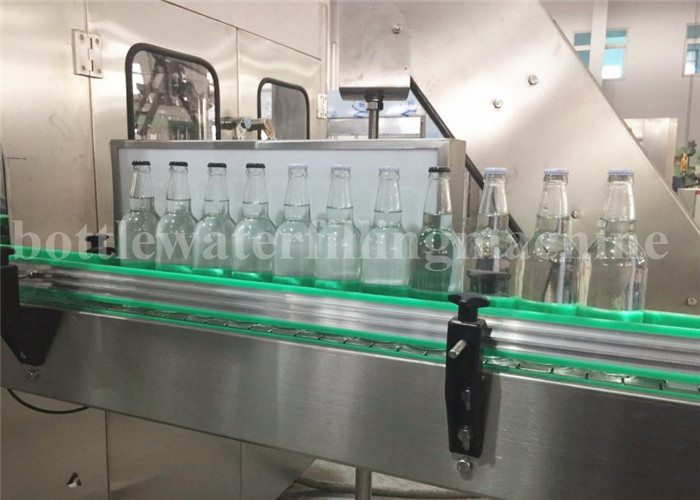

The glass bottle carboanted beverage filling machine adopts international advanced technology, scientific and reasonable design, beautiful appearance, convenient operation and maintenance, high degree of automation.This machine is the ideal equipment for beverage filling plant.
We provide seris carbonated drink filling machine, csd filling machine, csd filler for the carbonated
soft drink ( CSD ) plant for bottle filling
Bottle filling machine, Carbonated Drink Filling Machine, Csd Filling Line, Csd Filling Equipment,
Soft Drink Filling Machine, Carbonated beverage Filling Machine.
1. Material: The material which contact directly with the liquid is the SUS304 (Food grade),
made in China. The 3-in-1 is mainly used to fill pure water, Mineral water, carbonated drinks,
wine and juice, tea etc.
2. This machine is mainly for filling carbonated beverage, like Feda, sprite, coca cola.and energy drink.
Technique parameter:
| Model: | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-12 | DCGF40-40-12 | ||
| Capacity :500ml | 3000 | 8000 | 12000 | 16000 | ||
| Bottle shape: | roud or square | |||||
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
| Cap: | PE srew cap | |||||
| Filling precision: | ≤±5mm | |||||
| Filling pressure:(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | ||
| Rinsing pressure:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | ||
| Filling volume :(L) | 3.5 | 4 | 6 | 8 | ||
| Overall size:(mm) | 2450*1800*2200 | 2780*2200*2350 | 3600*2650*2350 | 3800*2950*2400 | ||
| Weight: (kg) | 3000 | 4000 | 5000 | 6000 | ||
Features:
1. Adopts the negative pressure filling which we specifically design for CSD filling, it ensures
minimal loss of CO2 from the product
2. The configuration of filler is advanced, pithy and rational and the driving and up-down transmission
is located between the stainless steel working plat and the bracket and their waterproof is good,
sanitary and credible and adjusting and maintaining are very easy.
3. We design the filling valves on basis of foreign advanced technique for adapting high-speed hot
filling. It can ensure the valves open and close flexibly because of using guide sheath. Adopting
easy-fixed configuration, the valve is easy to cleaning promptly and has automatic cleaning function.
4. The filling operation is faster and more stable because the new type micro pressure filling system
is adopted.
Advantages of csd filler, csd filling line
A. High automation level, compact structure, attractive appearance, convenient and simple operation,
safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as
Mitsubishi and Siemens.
These series carbonated drink filling machine can handle max 2 liter pet bottle. Welcome to inspect
Carbonated Drink Filling Machine in our factory.
