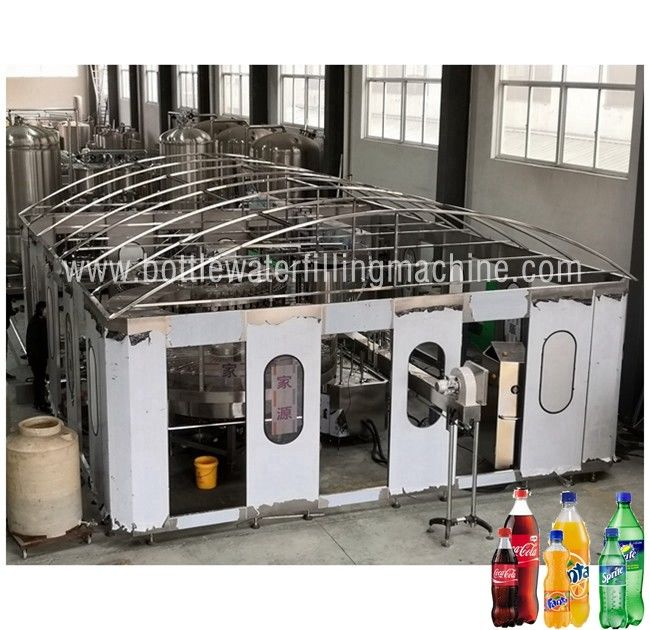

Soft Carbonated Drink Filling Machine , Pepsi Making Machine Complet Line

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE SGS
Model Number:	DCGF60-60-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	pls inquire
Packaging Details:	standard wooden case
Delivery Time:	60 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Name:	Energy Drink Bottling Machine	Function:	Filling Capping Packaging
Filling Matereial:	Soda Water, Sparkling Water, Cola, Beer	Suitable Bottle:	PET Bottle 250-2000ML
Capacity:	24000BPH	Voltage:	380V 50HZ Or Customize
High Light:	Carbonated Soft Drink Filling Machine , CSD Filling Machine

Product features

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

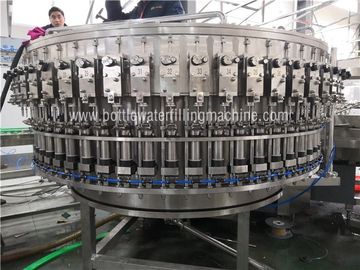

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Technical parameter

Model	DCGF 16-12-6	DCGF 18-18-6		DCGF 24-24-8	DCGF 32-32-10	DCGF 40-40-12	DCGF 50-50-15	DCGF 60-60-15
Production Capacity(500ml b/h)	2000	4000		6000	8000	10000	16000	24000
Washing Heads	16	18		24	32	40	50	60
Filling Heads	12	18		24	32	40	50	60
Capping Heads	6	6		8	10	12	15	15
Suitable bottles	PET Round or Square
Bottle diameter(mm)	50-108
Bottle height (mm)	150-310
Compressed Air Pressure(Mpa)	0.3-0.7
Washing Medium	Aseptic Water
Washing water pressure(Mpa)	0.25
Power(Kw)	1.5	1.5	2.2		3	4	5.5	7.5
Overall size(cm)	200x161 x225	235x196 x225	301x218 x240		400x220 x250	360x280 x230	550x300 x230	620x450 x230
Weight(kg)	2200	3500	4200		6000	8500	9800	12800

This cabonated soft drink machine capacity is 24000 bottles per hour (500ml).

Why Choose JIAYUAN?

1.Experience
JIAYUAN Since 2002. We are professional in water&beverage solutions over 16 years.Modern factory of 6000 square meters.over 40 countries’ customers are using JIAYUAN machines.

2.Quality control
JIAYUAN machines all parts adopts CNC (computer numerical control machine tools) for processing.Precision was improved greatly.

3. Reasonable Price
JIAYUAN machines are highest cost performance. Our machines and good service worth your cost.

4. Warranty
JIAYUAN provide 24 months long warranty, free parts and effective service in a timely manner. After the warranty, lifelong provide widely favorable technical support and after-sales service.

5. Turn-Key Project
JIAYUAN-turnkey Project including pre-sale and after-sale service, can provide the whole production line, factory design, design bottle, provide a layout diagram, provide auxiliary materials supply agent information, machine installation and debugging, staff training and so on.
