Zhangjiagang Jiayuan Machinery Co.,Ltd.

Zhangjiagang Jiayuan Machinery CO., LTD

Professional liquid beverage filling and packing machinery manufacturer

Home ProductsCarbonated Drink Filling Machine

Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment

Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment

    • Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment
    • Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment
    • Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment
    • Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment
  • Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: DCGF24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: pls inquie
    Packaging Details: standard wooden case
    Delivery Time: 45 working days
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Name: Carbonated Soft Drink Filling Machine Filling Material: Carbonated Soft Drink
    Suitable Bottle: PET Bottle Capacity: 6000BPH@500ML
    Bottle Volum: 250-2000ml Spare Parts: Free
    PLC: Mitsubishi Pneumatic: Airtac
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine



    Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment



    Machine brief introduction

    1,The machine is mainly used in the beverage filling operations.

    2,The three functions of bottle wash, fill and seal are composed in one body of the machine.

    3,The whole process is automatic.

    4,The machine is used in filling carbonated drink in bottles made of polyester and plastics.

    5,The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

    6,The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.

    7,There the output and benefit of the machine is higher than the machines of the same specifications.

    8,The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is 10,used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

    10,It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, 12,On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.



    Technical parameter



    Model DGCF24-24-8
    Production capacity(500ml) 6000-8000
    Filling material Carbonated soft drink, soda water, energy drink, cola, sparkling water
    Filling precision ≤±5mm(liquid level)
    Filling pressure(MPa) <0.4
    Polyester bottle standard(mm) Bottle neck: 50-100 bottle height:150-320
    Suitable cap shape Plastic screw cap
    Water pressure of washing bollte(MPa) 0.18-0.25
    Water consumption for water bottle(kg/h) 2500
    Spraying positon 6
    Dripping bottle position 3.5
    Gas source pressure 0.4
    Gas consumption (m3/min) 0.4

    Total power

    (kw)

    6.57
    Total weight 4000

    Dimension(L*W*H)

    mm

    2750*2180*2200

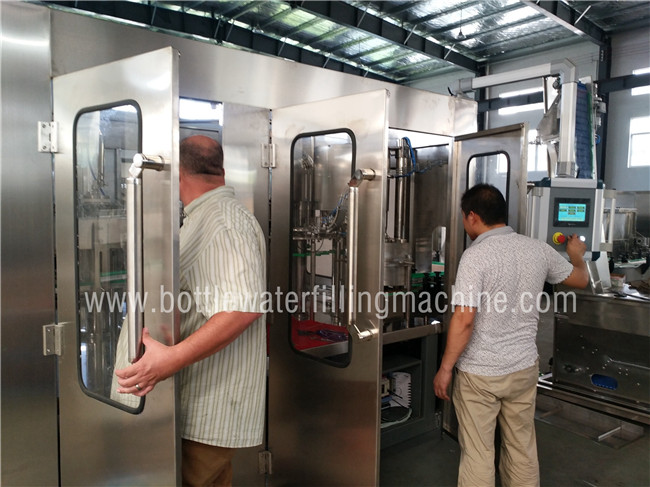

    Machine picture

    Pls click the picture to watch the video

    Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment 0

    Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment 1



    Energy Drink Manufacturing Beer Filling Machine , Soda Water Machine / Equipment 2



    Our service



    The sample service

    1.We can send you the video of the running machine.

    2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.

    3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.

    Customized service

    1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

    2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.

    3.We are certificated by many famous certificated authories
