Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | JIAYUAN |
Certification: | CE,ISO,SGS |
Model Number: | DGF24-8 |
Minimum Order Quantity: | 1 Set/Sets |
---|---|
Price: | US $30,000 - 560,000 / Set |
Packaging Details: | wooden box |
Delivery Time: | 30 working days |
Supply Ability: | 10 Set/Sets per Month |
Automatic Grade: | Fully-automatic | Machine Material: | Stainless Steel 304 |
---|---|---|---|
Bottle Volume: | 200-2000ml | Filling Capacity: | 6000BPH(500ml) |
Filling Pressure: | Balanced Pressure | Weight: | 3500kg |
Power: | 6.57kw | Dimension(L*W*H): | 2550*22550*2180*2200mm |
High Light: | Carbonated Soft Drink Filling Machine,CSD Filling Machine |
Brief specifications
1. Filling pressure:Isobaric pressure,balanced pressure.
2. Machine structure:2-in-1 monoblock,filling capping
3. Bottle volume:200ml-2000ml,if larger than 2L,the machine need to be expanded.The cost will be more expensive than normal size.
4. Capacity:6000bottles per hour based on 500ml pet bottle
3000bottles per hour based on 1000ml pet bottle;
...If you want to fill different volume bottle in one machine,you must keep their bottle mouth diameter same.
5. We also produce glass bottle carbonated beverage filling machine,but glass bottle and PET bottle can't be filled in one machine.They are two different machines.
Advantage
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

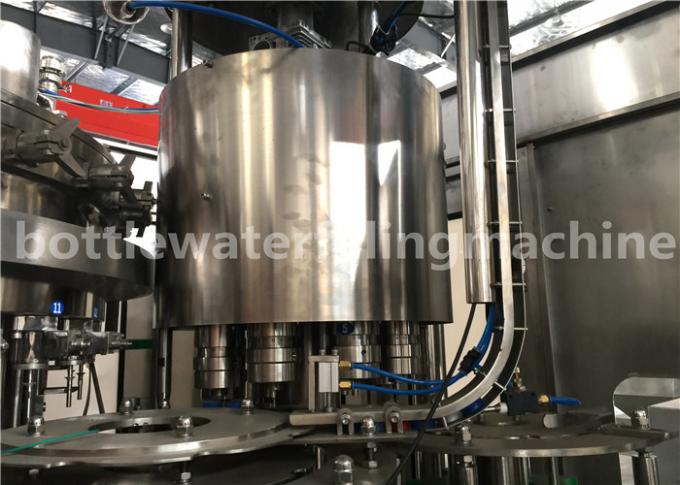

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, Siemens.
Technique parameter
Model: | DGF12-6 | DGF18-6 | DGF24-8 | DGF32-10 | DGF40-12 | ||
Production Capacity (500ml) (B/H) |
2000-4000 | 4000-6000 | 6000-8000 | 8000-10000 | 10000-12000 | ||
Bottle standard (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | ||||||
Suitable Cap shape |
Plastic srew cap
|
||||||
Filling precision |
≤±5mm
|
||||||
Filling pressure(Mpa) | <0.4 | ||||||
Water consumption for water bottle(kg/h) |
1300 | 2000 | 2500 | 3000 | 3000 | ||
Dripping Bottle Position | 2.5 | 3.0 | 3.5 | 7 | 7 | ||
Gas source Pressure(Mpa) | 0.4 | ||||||
Gas consumption (m³/min) |
0.3 | 0.4 | 0.4 | 0.5 | 0.5 | ||
Total power (kw) |
5.03 | 5.03 | 6.57 | 8.07 | 8.07 | ||
Overall size:(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3600*2200*2600 | 3600*2200*2600 | ||
Weight: (kg) | 2000 | 3000 | 4000 | 5000 | 5000 |
JINYATE supply and manufacture the followings machines for you
1) Water treatment equipment---RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner,raw water pump,storage tank
2) Filling Machine----3 in 1 Washing filling capping---for your water,cabonated drink, juice,wine,vinegar, milk,tea,oil and so on.
----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)
----PET bottle, Glass bottle, PP bottle and Can
----Screw cap, Aluminum cap, Crown cap and three (four) twist caps etc.
3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer , Inkjet printer , Laser printer
5) Packing Machine----Shrink film, Cartons packing machine
6) Bottle Blowing Machine--- for making plastic bottle
7) Injection Molding Machine---for your cap and proform.
8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
