500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine

500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine

    • 500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine
    • 500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine
    • 500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine
  • 500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: CGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: pls inquiry
    Packaging Details: standard wooden case
    Delivery Time: 50 working days
    Supply Ability: 99 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Water Bottling Machine Function: Washing Filling Capping
    Filling Material: Mineral Water, Drinking Water Machine Material: Stainless Steel SUS304
    Voltage: 380V 50HZ 3 Phases Cap Size: 28-38mm
    High Light:

    liquid bottle filling machine

    ,

    water bottling machine



    500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine



    Product description



    Three-in-one machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of natural mineral water, pure water, mineralized water and etc.

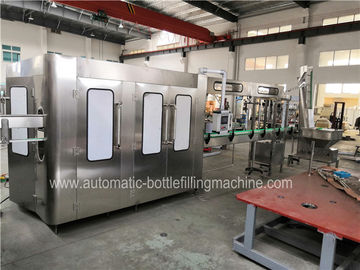

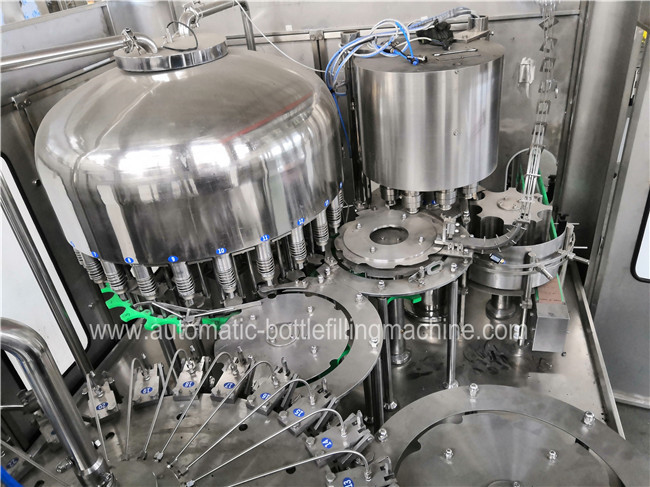

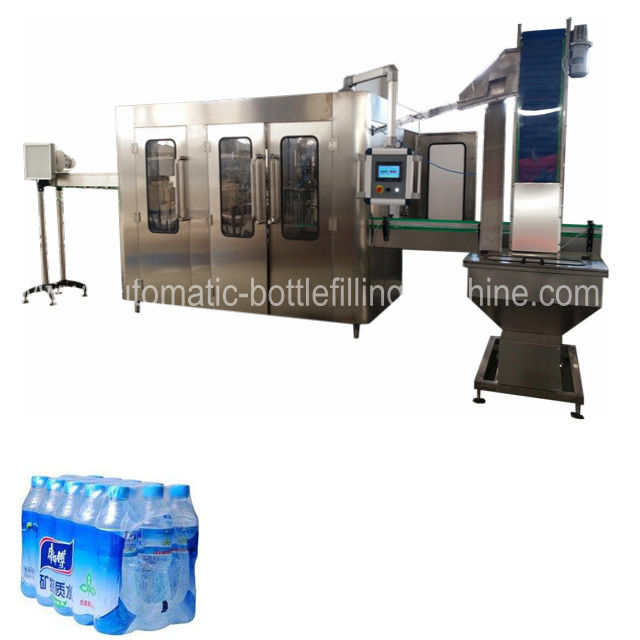

    machine pictures



    500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine 0

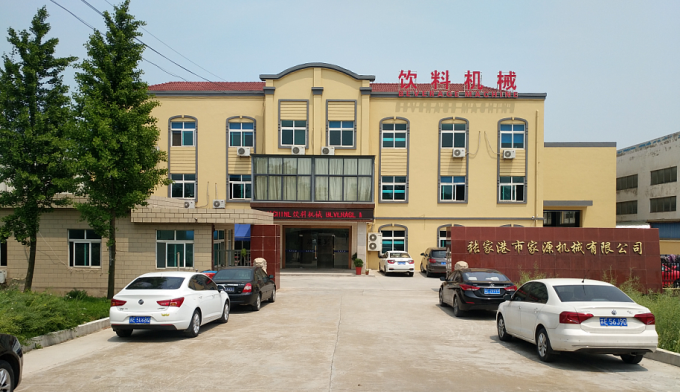

    company profile

    500 Ml Bottled Water Equipment , Stainless Steel Mineral Water Filling Machine 1



    parameter

    Model CGF8-8-3 CGF16126 CGF18186 CGF24248
    Number of washing, filling and capping heads 8-8-3 16-12-6 18-18-6 24-24-8
    Production capacity(500ml)
    (B/H)
    2000BPH 4000 7000-8000 10000-12000
    Suitable bottle specification(mm) volume=330-2000ml φ=50-110 H=150 ~340mm volume=330-2500ml
    Washing pressure(kg/cm 2 ) 2-3
    Motor power(kw) Main motor
    1.9kw
    Main motor
    3.5kw
    Main motor
    4.0kw
    Main motor
    4.8kw
    Overall dimensions (mm) 1900*1420*2000 2450*1800*2400 2650*1900*2400 2900*2100
    *2400
    Weight (kg) 1500 2500 3500 4500
    Model CGF323210 CGF404012 CGF505015 CGF606015
    Number of washing, filling and capping heads 32-32-10 40-40-12 50-50-15 60-60-15
    Production capacity(500ml)
    (B/H)
    12000-15000 15000-18000 20000-22000 22000-25000
    Suitable bottle specification(mm) φ=50-110 H=150~340mm Volume=330-2500ml
    Washing pressure(kg/cm 2 ) 2-3
    Motor power(kw) Main motor
    7.6kw
    Main motor
    8.3kw
    Main motor 9.6kw Main motor 15Kw
    Overall dimensions (mm) 4100*2000
    *2400
    4550*2650
    *2400
    5450*3210
    *2400
    5500*3510
    *2400
    Weight (kg) 6500 8500 9800 12000





    After-sales service

    1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

    2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

    3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

    4.We provide one year warranty

    5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
