4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant

4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant

    • 4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant
    • 4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant
    • 4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant
    • 4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant
    • 4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant
  • 4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: CGF16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: $6,000-20,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 4000BPH Control System: PLC Control+Touch Screen
    Warranty: One Year For Free Power: 4.23kw
    Driven Type: Electric Filling Temperature: Room Temperature
    Material: Food Grade Stainless Steel 304 Weight: 2000kg
    High Light:

    glass bottling machine

    ,

    glass bottle filler



    4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant





    Technique parameter

    Model CGF16-12-6 CGF18-18-6 CGF24-24-8
    Productivity 3000BPH 6000BPH 10000BPH
    Rinsing Head 16 18 24
    Filling Head 12 18 24
    Capping Head 6 6 8
    Bottle Volume 350ml~2000ml±10ml
    Bottle Diameter φ50-92mm
    Bottle Height 150-310 mm
    Filling Tolerance ±2%
    Cap Size 28mm and 30mm PE Standard Caps
    Air Pressure 0.6MPa
    Air Consumption 500 L/min
    Filling Water Consumption 1.5 m3/h 3 m3/h 6 m3/h
    Rinsing Water Consumption 0.5 m3/h 1 m3/h 2 m3/h
    Motor Power 5.88kW 6.68kW 7.68kW
    Voltage 380V
    Dimension

    (L*W*H)

    2100*1500*2200mm

    (L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
    Weight 2500kg 3000kg 5300kg
    Filling Principle Gravity Filling



    Product description

    1. Normal pressure filling

    2. Production capacity:4000Bottles per hour

    3. Suitable for PET or Glass bottle with different shape and 200-2000ml volume



    Features:

    1. The whole process is automatic ,suitable for glass bottle filling mineral water and pure water,juice,milk.
    2. Filling way using the gravity or micro pressure filling ,make the speed faster and more stable,so compared with the same model our machine output is higher and more efficient.
    3. The machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine adopts advanced automatically, interworking with inverter with inverter running more stable and reliable the photoelectric sensor detect all part running state with high degree of automation, easoperation.

    4. all parts of the filling machine touch with the material adopt high quality stainless still. Through the polishing treatment the surface become easy to clean. Sealed material is rubber or EPDM material.

    5. Using programmle controller as the central control,using pressure transmitter, electromagnetic chaos pneumatic servo measurement level to maintian the balance of filling pressure in order to ensure the stability of the liquid surface.

    6. Designed new filling valve for plastic bottle, return-air and filling tank liquid are separation to ensure the cleaning of filling materials.

    7. The filling machine adopts advanced magnetic clutch-type screw cover head, torque is adjustable. Screwing cap is safe and reliable.

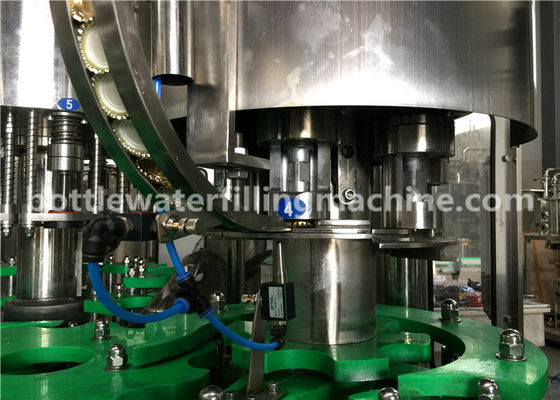

    4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant 0



    4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant 1



    4.23KW Small Glass Bottle Filling Machine Germany Purified Mineral Pure Water Bottling Plant 2
