Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic

Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic

    • Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic
    • Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic
    • Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic
    • Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic
    • Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic
  • Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: CGF16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: $6,000-20,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 4000BPH Control System: PLC Control+Touch Screen
    Warranty: One Year For Free Power: 4.23kw
    Driven Type: Electric Filling Temperature: Room Temperature
    Material: Food Grade Stainless Steel 304 Weight: 2000kg
    High Light:

    glass bottling machine

    ,

    glass bottle filler



    Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic


    Product description

    1. Normal pressure filling

    2. Production capacity:4000Bottles per hour

    3. Suitable for PET or Glass bottle with different shape and 200-2000ml volume

    Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic 0

    Detailed pictures

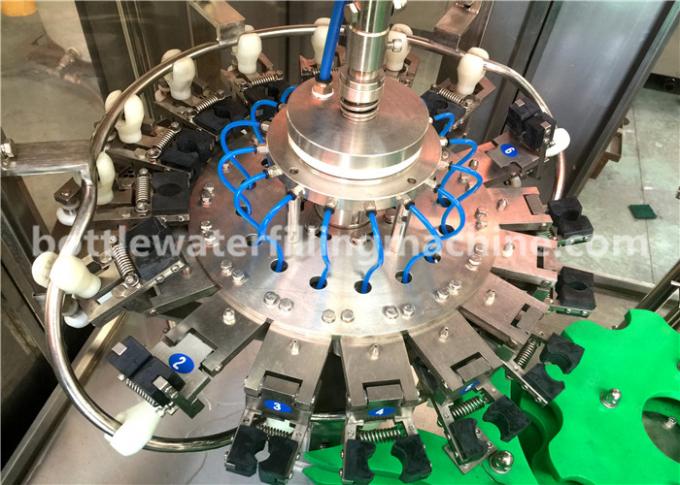

    1.Washing part

    1). The rotary disk is fully made of SUS304 stainless steel.

    2). Using company original tilting bottle clip, bottle clamp stuck bottle neck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is made of SUS304 stainless steel, health and durable.

    3). Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.

    4). Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance.

    5). Washing part moves by a frame in the transmission system through the gear transmission.

    Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic 1

    2.Filling part

    1). The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.

    2). The rotating disk is all made of SUS304 stainless.

    3). Filling method is gravity filling.

    4). Filling valve manufactured by SUS304.

    5). The filling valve structure design is reasonable, the filling quantity is accurate.

    Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic 2

    3.Capping part

    The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.



    Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiaotong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.

    Juice / Water 330ml Glass Bottle Filling Crown Cap Sealing Machine Fully Automatic 3



    Technique parameter

    Model CGF16-12-6 CGF18-18-6 CGF24-24-8
    Productivity 3000BPH 6000BPH 10000BPH
    Rinsing Head 16 18 24
    Filling Head 12 18 24
    Capping Head 6 6 8
    Bottle Volume 350ml~2000ml±10ml
    Bottle Diameter φ50-92mm
    Bottle Height 150-310 mm
    Filling Tolerance ±2%
    Cap Size 28mm and 30mm PE Standard Caps
    Air Pressure 0.6MPa
    Air Consumption 500 L/min
    Filling Water Consumption 1.5 m3/h 3 m3/h 6 m3/h
    Rinsing Water Consumption 0.5 m3/h 1 m3/h 2 m3/h
    Motor Power 5.88kW 6.68kW 7.68kW
    Voltage 380V
    Dimension

    (L*W*H)

    2100*1500*2200mm

    (L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
    Weight 2500kg 3000kg 5300kg
    Filling Principle Gravity Filling
