Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | JIAYUAN |
Certification: | CE,ISO,SGS |
Model Number: | QGF-150 |
Minimum Order Quantity: | 1piece |
---|---|
Price: | US $30,000 - 50000 / Set |
Packaging Details: | wooden box |
Delivery Time: | 30 working days |
Supply Ability: | 10 Set/Sets per Month |
Material: | Stainless Steel 304 | Driven Type: | Electric |
---|---|---|---|
Warranty: | 1 Year For Free | Voltage: | 380V/50Hz |
Power: | 3.8kw | Dimension(L*W*H): | 2800*1100*1600MM |
Filling Bottle Size: | 1-5gallen/3-19L | Weight: | 700kg |
High Light: | 5 gallon water bottle filling machine,5 gallon filling machine |
Please click the follow picture to see the video,https://youtu.be/F5XKJSwRdIU
Description

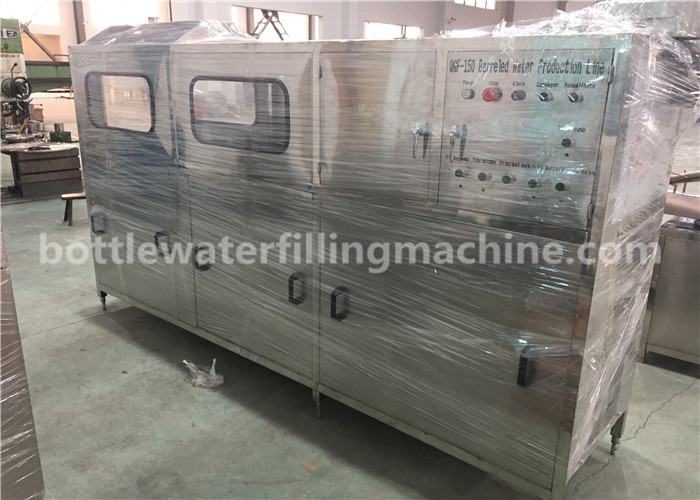

The production line is designed for 3-5 gallon barreled drinking water, with different capacity QGF-150,QGF-300,QGF-450,QGF-600,QGF-900 for optional. It combined bottle washing, filling capping in one unit. In order to achieve the purpose of washing and sterilizing, the washing machine uses multi-washing liquid spray and thimerosal spray. The thimerosal can be used circularly. The capping machine can cap barrel automatically. This line equips with water spraying device in order to ensure those caps sterile and clean. It also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and discharging. With complete function, modern design and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.
Features
1) Our barreled water producing line is specially designed for 3-5 gallon drinking water;

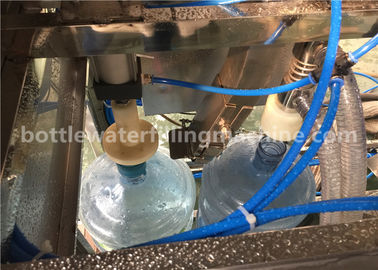

2) The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;

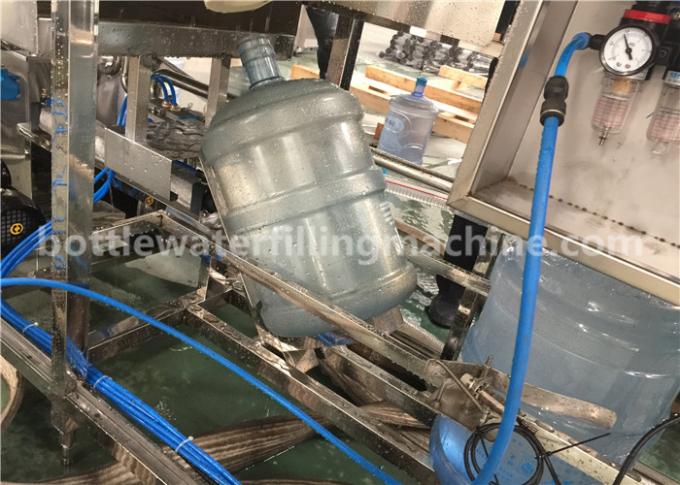

3) Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically
4) In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;
5) Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging
Technical parameter
Model | QGF-80 | QGF-150 | QGF-300 | QGF-450 | QGF-600 |
Filling heads | 1 | 1 | 2 | 3 | 4 |
Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
Capacity | 80 | 150 | 300 | ||
Gas pressure | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 |
Gas consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 |
Motor power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 |
Motor voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Weight | 500 | 700 | 1200 | 1600 | 2000 |
Dimension | 2500*1100*1600 | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |
JIAYUAN supply and manufacture the followings machines for you
1) Water treatment equipment---RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner,raw water pump,storage tank
2) Filling Machine----3 in 1 Washing filling capping---for your water,cabonated drink, juice,wine,vinegar, milk,tea,oil and so on.
----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)
----PET bottle, Glass bottle, PP bottle and Can
----Screw cap, Aluminum cap, Crown cap and three (four) twist caps etc.
3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer , Inkjet printer , Laser printer
5) Packing Machine----Shrink film, Cartons packing machine
6) Bottle Blowing Machine--- for making plastic bottle
7) Injection Molding Machine---for your cap and proform.
8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
