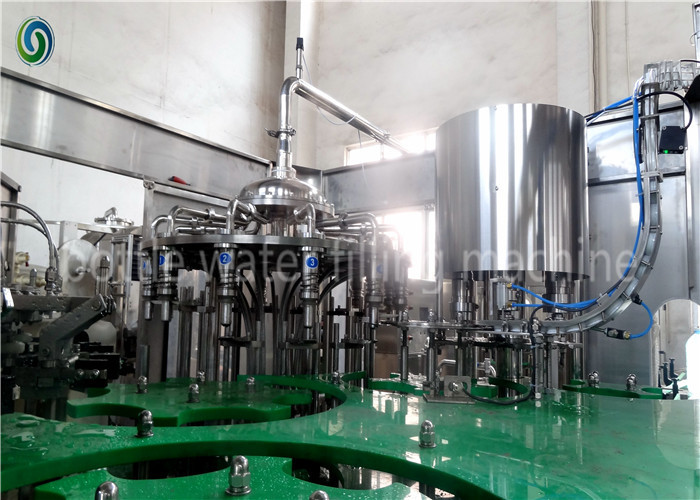

3 - 10L Plastic Water Bottle Filling Machine PLC Control Easy To Operate

3 - 10L Plastic Water Bottle Filling Machine PLC Control Easy To Operate

3 - 10L Plastic Water Bottle Filling Machine PLC Control Easy To Operate

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jiayuan
Certification: CE SGS ISO
Model Number: CGF12-12-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: US $15,000 - 1,000,000 / Set
Packaging Details: Wooden Box
Delivery Time: 30 Working Days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Machine Type: Filling Machine Packaging Type: Barrel, Bottles
Packaging Material: Paper, Plastic, Wood Automatic Grade: Automatic
Voltage: 380V/50HZ Power: 8kw
Dimension(L*W*H): 3500mm*2500mm*2600mm Capacity: 1500b/h
High Light:

liquid bottle filling machine


water bottling equipment



3-10L Plastic Bottle Water Filling Machine / Purified Mineral Water





Introduction of the machine


(1) 3-10L Automatic PET Water Bottle Filling Machine includes: Washing-filling-capping 3 in 1 machine,


lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full


automatic production line.


(2) The 3-10L Automatic PET Water Bottle Filling Machine used in the beverage filling operations. The


three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process


is automatic.


(3) The 3-10L Automatic PET Water Bottle Filling Machine is used in filling juices, mineral water and


purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if


being installed with temperature controlling device. The handle of the machine can be freely and


conveniently turned to adjust the machine to fill various types of bottles.


(4) The filling operation is faster and more stable because the micro pressure filling operation of the new


type is adopted. There the output and benefit of the machine is higher than the machinery of the same




(5) The advanced Siemens programmed controller (PLC) is adopted to control the machine to run


automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated


with the transducer of the main machine to make the operations of moving bottle forward steadily and




(6) It is convenient to operate with higher automation because every part of the machine is inspected to


run with photo electricity, On the bases, the filling parts of the machine can be changed into filling


methods of lower vacuum.


(7) The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy


and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an


idea-preferred equipment for beverage maker.



Technical parameter


Machine name 5 liter purified water pet bottle filling machine / drinking water bottling line
Model CGF12-12-4
Filling speed 1500BPH(5L)

When the plastic bottle change from 3L to 10L, there's no need to change any spare parts in the monoblock filling machine
Rinsing head 12
Filling head 12
Capping head 4
Dimension 3500mm*2500mm*2600mm
Weight 4.5MT
Power 8KW
Control system Siemens PLC+touch screen
Electrical element Schneider
