Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment

Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment

    • Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment
    • Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment
    • Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment
    • Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment
  • Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: JIAYUAN
    Certification: CE SGS
    Model Number: DCGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD5000 per set
    Packaging Details: standard wooden cases
    Delivery Time: 35 working days
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Name: Carbonated Drink Bottling Machine Function: Bottle Washing Filling Capping
    Suitable Bottle: PET Bottle Bottle Volume: 330-2000ml
    Filling Material: Carbonated Drink, Sparking Water, Soda Water ... Capacity: 2000-24000BPH
    Material: SUS304 Warranty: 1 Year
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine

    Carbonated beverage rising filling capping 3 in 1 machine

    Features:

    1. This DCGF Wash-filling-capping 3-in-1unit:

    2. Beverage Machinery is used to produce Gas beverage (CSD)

    3. The DCGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing,

    4. it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.



    This machine works harmoniously with air-conveyor belt; it holds the bottles by the neck when transporting

    This machine is used to fill carbonated drink into pet bottle and with screw caps capping function.
    Integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles



    Technical parameter

    odel

    DCGF

    16-12-6

    DCGF

    18-18-6

    DCGF

    24-24-8

    DCGF

    32-32-10

    DCGF

    40-40-12

    DCGF

    50-50-15

    Washing No 16 18 24 32 40 50
    Filling No 12 18 24 32 40 50
    Capping No 6 6 8 10 12 15
    Production Capacity(500ml) 3000BPH 5000BPH 8000BPH

    12000

    BPH

    15000

    BPH

    18000

    BPH

    Install Capacity(KW) 3.5 4 4.8 7.6 8.3 9.6
    Overall size 2450×1800×2400 2650×1900×2400 2900×2100×2400 4100×2400×2400 4550×2650×2400

    5450×3210×2400

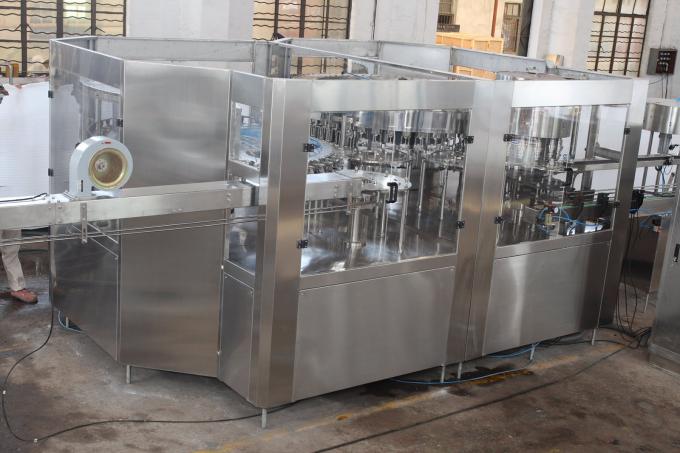

    Machine pictures

    Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment 0

    Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment 1

    inner look

    Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment 2

    Rinser

    -Rotative rinsing turret one treatment, fixed nozzles, with grippers.

    -The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.



    -After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

    Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment 3

    Filler

    -The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.

    -Product bowl is to reduce the loss of heat.



    -If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.

    Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment 4

    Capper

    -Rotative capping turret, suitable to the application of screw plastic caps on PET bottles

    -The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.





    -The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

    Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment 5

    production line

    Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment 6

    final products

    Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment 7



    about our company



    our main production lines:

    1. bottling minereal/pure water production line;

    2. barrel mineral/ pure water production line

    3. bottling carbonated beverage production line (like coca cola);

    4. bottling juice production line;

    5. canning beverage production line;

    6. glass bottle beer production line;

    7. milk/tea filling&package line;

    8. oil filling&package line;

    carbonated water bottling plant,soft drink filling machine india

    our two workshops

    carbonated water bottling plant,soft drink filling machine india

    certificate

    Industrial Soda Water Filling Machine / Sparkling Water Processing Equipment 10
