    Name: Carbonated Drink Bottling Machine Function: Bottle Washing Filling Capping
    Suitable Bottle: PET Bottle Bottle Volume: 330-2000ml
    Filling Material: Carbonated Drink, Sparking Water, Soda Water ... Capacity: 2000-24000BPH
    Material: SUS304 Warranty: 1 Year
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine

    HIGH quality automatic Carbonated Beverage Bottling Machine For PET bottle



    Characteristics:



    1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.

    2. It is very convenient to change diverse sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology.

    3. Advanced programmable PLC is equipped to control the main machine.

    4. Working speed can be adjustedby frequency conversion device.

    5. Main electronic components are all from famousinternational enterprises, like Siemens and Mitsubishi.



    2.Main components:

    1) driving system;

    2) bottle-loading air conveyor system,;

    3) bottle-rinsing system;

    4) handing-over system between rinsing and filling;

    5) filling system;

    6) handing-over system between filling and capping;

    7) capping system;

    8) cap-unscrambling system;

    9) bottle-unloading system;

    10) frame;

    11) electrical system.



    Technical parameter

    Model

    DCGF

    16-12-6

    DCGF

    18-18-6

    DCGF

    24-24-8

    DCGF

    32-32-10

    DCGF

    40-40-12

    DCGF

    50-50-15

    Washing No 16 18 24 32 40 50
    Filling No 12 18 24 32 40 50
    Capping No 6 6 8 10 12 15
    Production Capacity(500ml) 3000BPH 5000BPH 8000BPH

    12000

    BPH

    15000

    BPH

    18000

    BPH

    Install Capacity(KW) 3.5 4 4.8 7.6 8.3 9.6
    Overall size 2450×1800×2400 2650×1900×2400 2900×2100×2400 4100×2400×2400 4550×2650×2400

    5450×3210×2400



























    Machine pictures

    Automatic Rotary Bottle Carbonated Drink Filling Machine / Soft Drink Production Line 0

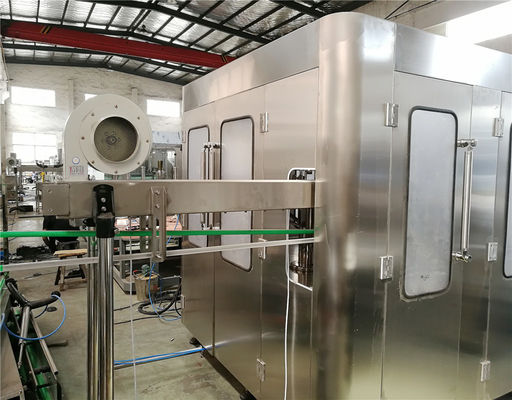

    inner look (filling capping)

    Automatic Rotary Bottle Carbonated Drink Filling Machine / Soft Drink Production Line 1

    washing

    Automatic Rotary Bottle Carbonated Drink Filling Machine / Soft Drink Production Line 2

    filling

    Automatic Rotary Bottle Carbonated Drink Filling Machine / Soft Drink Production Line 3

    capping

    Automatic Rotary Bottle Carbonated Drink Filling Machine / Soft Drink Production Line 4



    3. The working process

    The bottle enters into the rinsing part of three-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays juice to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts equal pressure filling way. The filling valve opens and begins filling when it moves down and touches thebottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet.
