20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice

20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice

20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice

Product Details:

Place of Origin: JiangSu China
Brand Name: JiaYuan
Certification: CE SGS
Model Number: RCGF40-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1-2
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
After Sale Service: Engineers Available To Service Machinery Overseas Dimension: 3600*2800*3150
Certificates: CE SGS Weight: 5000kg
Power: 9.18 Voltage: 220/380V
Driven Type: Electric Automatic Grade: Automatic
Application: Beverage Pacakaging Material: PET Plastic
Packaging Type: Bottles Capacity: 15000-20000 Bottles Per Hour
Product Name: Juice Filling Machine Filling Method: Hot Filling
Bottle Volume: 300ml-2500ml Machine Control: Siemens PLC System
Filling Precision: Within Error Of 5 Mm
High Light:

juice bottling equipment

,

juice bottling machine

Briefs on product

a. Hygienic design for easy resource-saving sanitizing.

b. Heavy duty 304 stainless steel welded frame, 316 stainless steel hygienically processed filling nozzles and capping heads

c. Siemens PLC system along with Omron photoelectric sensor make this machine smart.

d. 7-inch touch screen tames this steel beast perfectly.

e. The capacity is around 14000 bottles per hour.

f. The filling nozzle stroke is adjustable to the different volumes of bottle.(200ml-2500ml)

g. Faster and more effective product and bottle changeover reduces your product losses.






Detailed Description and Images

Rinsing: The rinser clutches bottles from the starwheel, holding bottles by their necks. gradually turn them upside down while rotating, It will send the bottles to the rinsing area where spraying water come from up above, washing bottles throughly.small juice filling machine



Hot Filling: In order to avoid any kind of shape change while doing hot filling, The bottles will be grabbed at their necks. Once bottles in the right position, those filling nozzles move down half inside the bottles. The outlet channel of the filling valve opens up, and the hot liquid(tempereture ranges from 85 to 95 degrees celsuis) flows down. As the bottles getting filled up, the inlet channel opens up to allow the superfluous amount to flow back. This whole process makes sure bottles get fully filled.

The temperature of the liquid is monitored, and the backup recirculation system allows the liquid to flow back from the filling station once the temperature drops down below the pre-set.



Capping: Bottles will be sent over to the capping station, Cap sorter will put a cap onto each bottle, and then thephotoelectric sensor enhanced capper will do the swiveling motion to tighten the cap.

20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice 0



20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice 120000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice 2

20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice 320000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice 4

 20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice 4



20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice 6

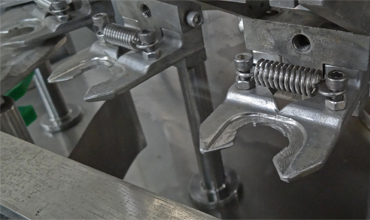

a. Plier-like clutches could easily hook up bottle's neck without doing any damage.

b. Neck-catching design makes it fit bottles with a large range of size.

c. Made of stainless steel where durability comes from.

a. 316 stainless steel made filling nozzles, sanitarily reliable and durable.

b. Nozzle stroke can be adjusted through a certain range, making the filler variably fit different bottle volumes(200ml-2500ml).

c. Stabilizer contacting bottle's bulk down below is made of polymer materials.

d. Enhanced by the photoelectric sensor, no bottle no fill.

e. Bulged constituents make nozzle easy to clean.

20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice 7
20000BPH PET Plastic Bottle Hot Filling Machine for Fruit Juice 8

a. Made of stainless steel 316, ensuring durability.

b. Caps are put onto the bottles by the cap sorter upstream

c. Enhanced by the photoelectric sensor, no bottle no cap.

d. Easily adjustable cap torque settings make it smooth to operate.

e. Simple and easy-to-change parts facilitate the adjustment between different sizes of bottles and caps.

After-sales service

a. We set your shopping experience as our top priority, we will produce as exactly you require and let you get your machine as soon as possible.
b. Our engineers will arrive at your factory right after the machine's arrival. They will help install the machine and teach your employees how to operate properly.
c. We provide one year warranty with free spare components.
