Pulp Juice Filling Machine / Mirinda Soft Drinks Automatic Liquid Filling Machine

Pulp Juice Filling Machine / Mirinda Soft Drinks Automatic Liquid Filling Machine

    • Pulp Juice Filling Machine / Mirinda Soft Drinks Automatic Liquid Filling Machine
    • Pulp Juice Filling Machine / Mirinda Soft Drinks Automatic Liquid Filling Machine
    • Pulp Juice Filling Machine / Mirinda Soft Drinks Automatic Liquid Filling Machine
    • Pulp Juice Filling Machine / Mirinda Soft Drinks Automatic Liquid Filling Machine
  • Pulp Juice Filling Machine / Mirinda Soft Drinks Automatic Liquid Filling Machine

    Product Details:

    Place of Origin: CHINA,MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: RCGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 16000 -55000 set
    Packaging Details: wooden case
    Delivery Time: 15 work days
    Payment Terms: T/T
    Supply Ability: 15 sets per month
    Contact Now
    Detailed Product Description
    Color: Silvery White Certification: CE,SGS
    Product Capacity: 3000bph Power: 5.88kw
    Voltage: Customized Filling Material: Flow Liquid
    Packing: Wooden Service: Top Service
    High Light:

    automatic bottling machine

    ,

    automatic water bottle filling machine



    easy change bottle size pulp juice filling machine /mirinda soft drinks



    Specifications



    1.washing,pulp filling, capping 4-in-1 monobloc

    2.Material: Stainless steel

    3.Juice filling machine, hot filling production line, fruit pulp juice making machine, juice bottling machine, fruit juice pacing machine, hot tea filling plant

    3.Zhangjiagang, Suzhou, Jiangsu province



    Technique parameters:



    Model RCGFB24-24-24-8 RCGFB32-32-32-10 RCGFB40-40-40-12 RCGFB50-50-50-15
    Bottle washing head 24 32 40 50
    Pulp filling head 24 32 40 50
    Juice filling head 24 32 40 50
    Cap screwing head 8 10 12 15
    Rated production capacity 8000BPH 12000BPH 15000BPH 20000BPH
    Installed capacity 6.5KW 8.7KW 9.5KW 12KW
    Overall size 4070*2350*2400mm 5100*2600*2400mm 6250*3050*2400mm 7500*3900*2400mm

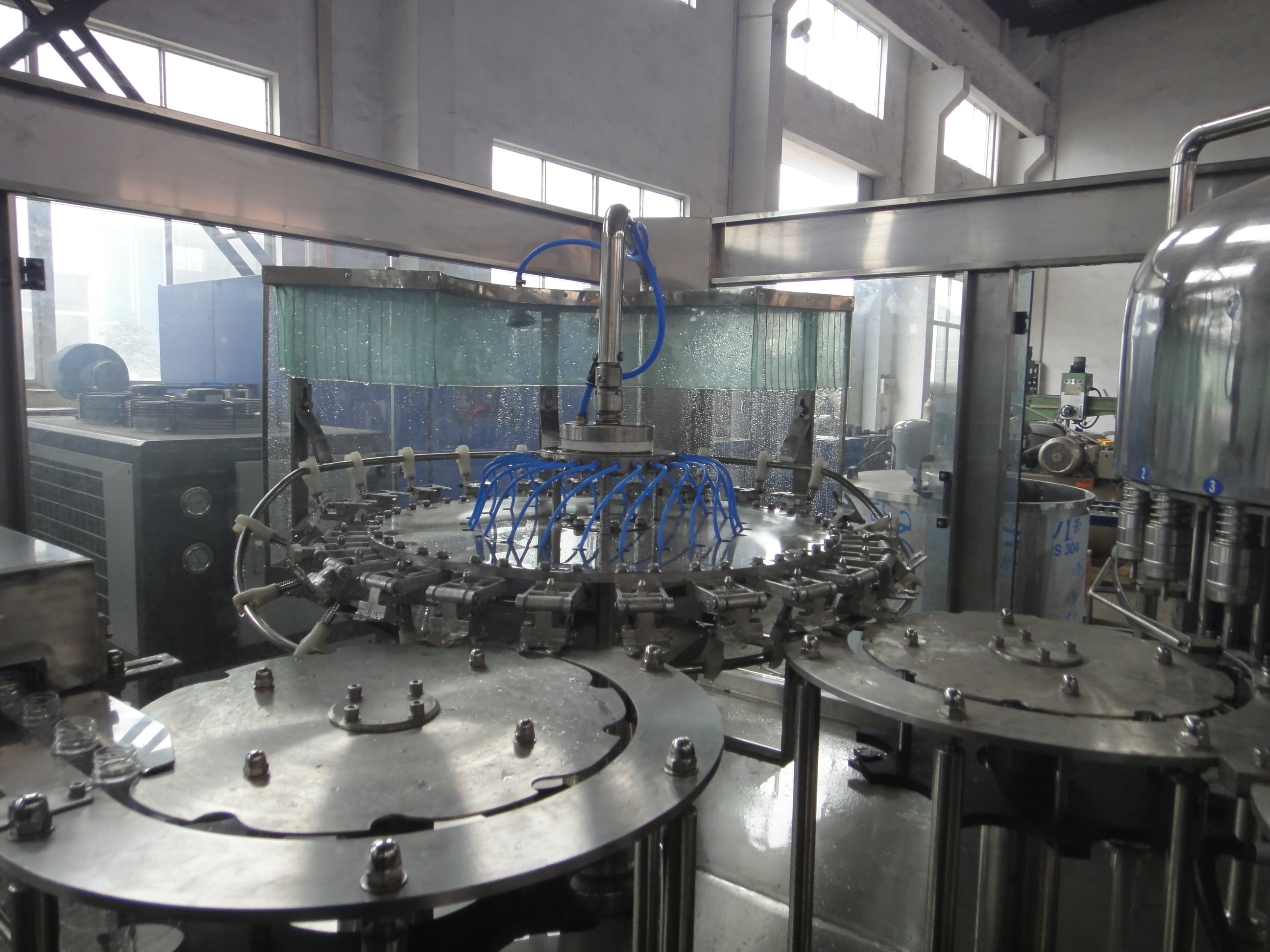

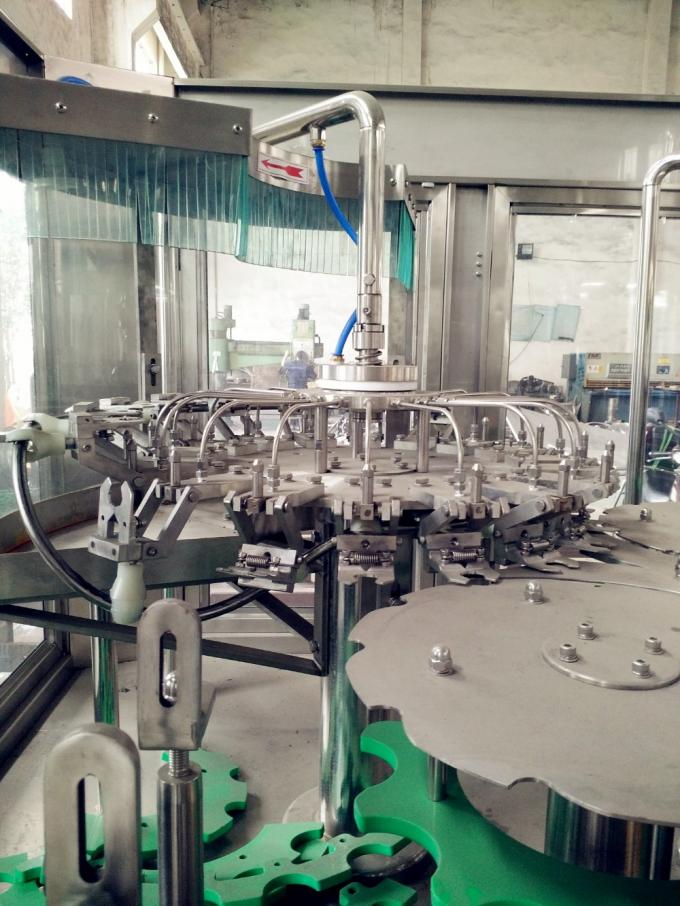

    Machine Details

    Rinser :

    Adopting advanced international technology , we design the QS series rotary bottle rinsing machine by ourselves . With theindependent innovative design, this series machine has been the advanced bottle rinsing machine in China.



    1 .Professional cleaning machine for empty plastic bottle or glass bottles .



    2.Fixed structure, impeccable controlling system and easily for operating and maintain.



    3. Reliable cleaning theory and spraying method to rinse the inside and outside of the bottles.



    4. When change the bottles, only need to change the starwheel and guide plate, no other machine accessory need to change; this machine is suitable for rinsing PET bottles and glass bottle, can be used for large and middle-size enterprise, not only for the whole filling line, but also for the separate working;




    Filler :

    1.This machine has speed regulating motor so that the production capacity can be adjusted according to customer requirement easily.



    2. Our filling valve is adopting German advanced technology, even with running speed 32000 bottles per hour, our machine can fill stably and exactly;



    3. All our filling accessory have been well polished, and have nice appearance , fast filling speed, without any leakage;






    Capper :

    1.Our capping machine is suitable for plastic screw cap , aluminum screw cap, theft deterrent cap, etc which is mainly used in the PET bottled no-gas drinking ;



    2. Our capping machine have the stable transmission system, great sealing performance, easy operation, convenient maintance character.







    Service

    1.Installation

    After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.

    2.Quality Guarantee

    We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

    3.Aftersales

    After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.





    Advantages
    Industry Application
    Electronic industrial Cleaning water of electronic components (Integrated circuits, silicon chips, display tube, electrode foil
    pharmaceutical industry Transfusion, injections, tablets, biochemical products, equipment cleaning, etc.
    Chemical industry chemical recycling water,chemical products manufacturing,chemical fertilizer
    Electric power industry,Boiler Feed water Thermal power boiler, low pressure boiler power system in factories and mines
    Food industry Pure drinking water, beverages, beer, wine, health products
    Seawater, brackish water desalination Island, ships, offshore drilling platforms, brackish water
    Drinking water Estate, communities, enterprises
    Others Grey water reuse, coated glass, fine chemicals, printing and dyeing


    Competitive Advantage:

    Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

    1. The company around 110 KM away from Shanghai, has convenient traffic.

    2. The company was established in 1999, has rich experience.

    3. We are an CE&SGS certified company.

    4. We can produce kind of filling&packing machine, such as

    1. Bottled water production line
    2. Carbonated soft drinks production line
    3. Hot-fill juice and tea production line
    4. 5 Gallon bottled water production line
    5. Water treatment machine and packing machine

    5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
