Easy Operated Automatic Bottle Filling Machine Maintain Juice Processing Machinery

Easy Operated Automatic Bottle Filling Machine Maintain Juice Processing Machinery

    • Easy Operated Automatic Bottle Filling Machine Maintain Juice Processing Machinery
    • Easy Operated Automatic Bottle Filling Machine Maintain Juice Processing Machinery
    • Easy Operated Automatic Bottle Filling Machine Maintain Juice Processing Machinery
    • Easy Operated Automatic Bottle Filling Machine Maintain Juice Processing Machinery
  • Easy Operated Automatic Bottle Filling Machine Maintain Juice Processing Machinery

    Product Details:

    Place of Origin: CHINA,MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: RCGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 15800 -55000 set
    Packaging Details: wooden case
    Delivery Time: 30 work days
    Payment Terms: T/T
    Supply Ability: 15 sets per month
    Contact Now
    Detailed Product Description
    Driven Type: Electric Automatic Grade: Automatic
    Processing Type: Rinsing Filling Capping Control: Touch Screen
    Bottle Type: Glass Bottle Service: Engineer Oversea
    Packing: Wooden



    easy operated & maintain juice processing machinery in professional manufacture







    Parameter



    Model RCGF18-18-6 RCGF24-24-8 RCGF32-32-10
    Production capacity(500ml)(b/h) 6000 10000 14000
    Feedback consumption ≤10% ≤10% ≤10%
    Water pressure of washing bottle(Mpa) 0.18 0.18 0.18
    Wash pressure of washing bottle(kg/h) 1600 2500 3500
    Gas sourse pressure(Mpa) 0.6 0.6 0.6
    Gas consumption(m3/min 0.3 0.4 0.5
    Total power 6.68 7.68 9.18
    Total weight 3000 4000 5000
    Dimensions(L*W*H)(mm) 2450×1800×2200 2750×2180×2200 3600×2800×3150







    Description



    The equipment is used for the production of wine, alcohol drink,mineral water, pure water, juice, etc.

    It integrates washing ,filling ,capping together.The design is scientific and reasonable ,It's oppearance is beautiful ,operation and maintentic is convenient.

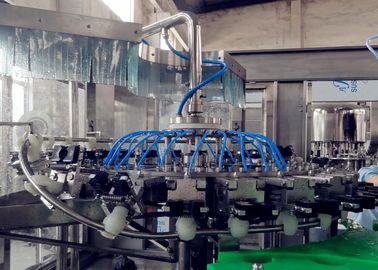

    Washing part of bottle washing filling capping machine

    a) Rotary pan is made of stainless steel 304.

    b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.

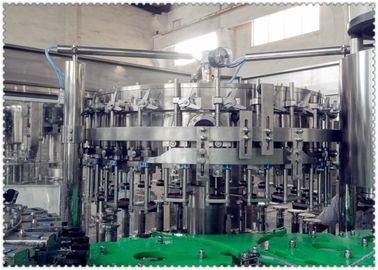

    Filling part of bottle washing filling capping machine

    a) Rotary pan is made of stainless steel 304

    b) The way of filling is gravitation filling.

    c) The filling valve is adopted best stainless steel 304

    d) The structure of filling valve is reasonable, the amount is correct

    e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle

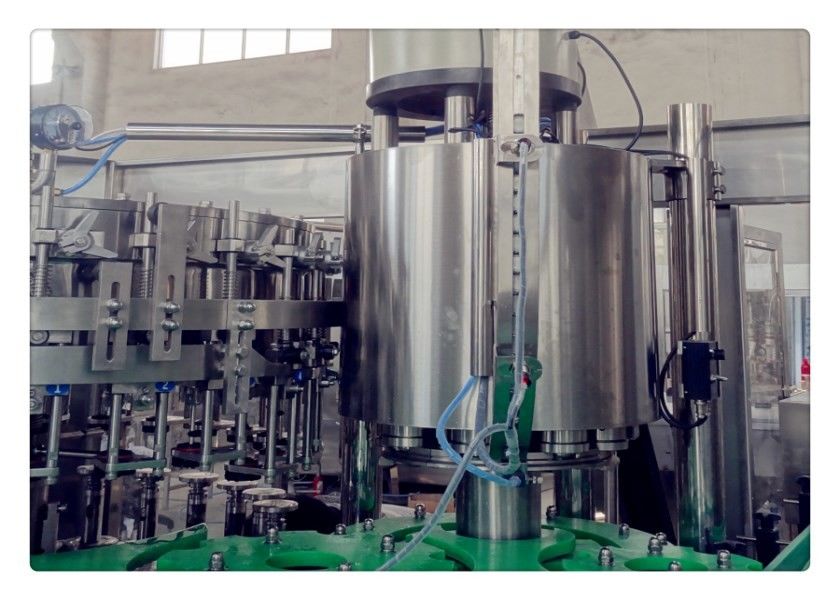

    Capping part of bottle washing filling capping machine

    a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can

    stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.

    b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.











    Competitive Advantage:



    1. Perfect CIP system.
    2. Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
    3. Sanitary filling head system is of umbrella structure, high filling speed.
    4. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
    5. Recirculation tank system has the function of supplying the material automatically.
    6. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
    7. Perfect filling temperature control system.











    Features
    • This equipment can satisfy with filing request of lower than 95 hot filling, filling valves and pipes material are according to sanitation standard, at the same time.
    • The CIP self-cleaning interface there is RO water rinsing device before capping ensure bottle mouth is clean. We adopt magnetic torque capping head.
    • Hot shrink packing machine adopted original imported parts from Germany, Japan. It is easy to adjust for different size of bottle and package.
    • The whole beverage filling line adopts human-machine interface, touch-screen, PLC computer controller and other advanced technologies. With automatic inspect system of filing temperature automatic, caps supplying material, high-temperature alarm, low-temperature shutdown and automatic return, no bottle, no filling, wait when lack of bottle, lacking caps shutdown and so on, realize no bottle, no filling.


    milk tea production line/RCGFB50-40-50-15 juice production line machine with engineer oversea service


    Company Information



    • Zhangjiagang Jiayuan Machinery Co., Ltd. is located in Zhangjiagang city, which is near to Shanghai. We professionally research, develop and manufacture beverage packaging machines. We are a high technology enterprise of Jiangsu Province, and the best supplier of China beverage packaging machinery area.
    • Since its founded 20 years ago. We are dedicated to the most advancement technology of beverage packaging machinery, and have always been conducting good up-to-date technical communication and exchange with leading Italy, Germany, France packaging companies.

    • We have a strong technology team for beverage packaging machines’ manufacture. There are many beverage experts in our company. We provide marketing analysis, project budget, equipment technical configuration, and training for operator etc.

    Our Services

    1.Installation

    After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.

    2.Quality Guarantee

    We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
