Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | China Mainland |
| Brand Name: | Jiayuan |
| Certification: | CE,SGS |
| Model Number: | QS-12; CYG-12; FXZ-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8500-100000 |
| Packaging Details: | Wooden case for shipment |
| Delivery Time: | 20 days |
| Payment Terms: | T/T; L/C |
| Supply Ability: | 10 sets/month |
| Condition: | New | Bottle Type: | Glass Bottle |
|---|---|---|---|
| Material: | Stainless Steel 304 | Pcaking: | Wooden Cases |
| Service: | Top Service | Filling Material: | Flow Liquid |
| High Light: | PET Bottle Filler Machine,Beverage Filling Line |
||

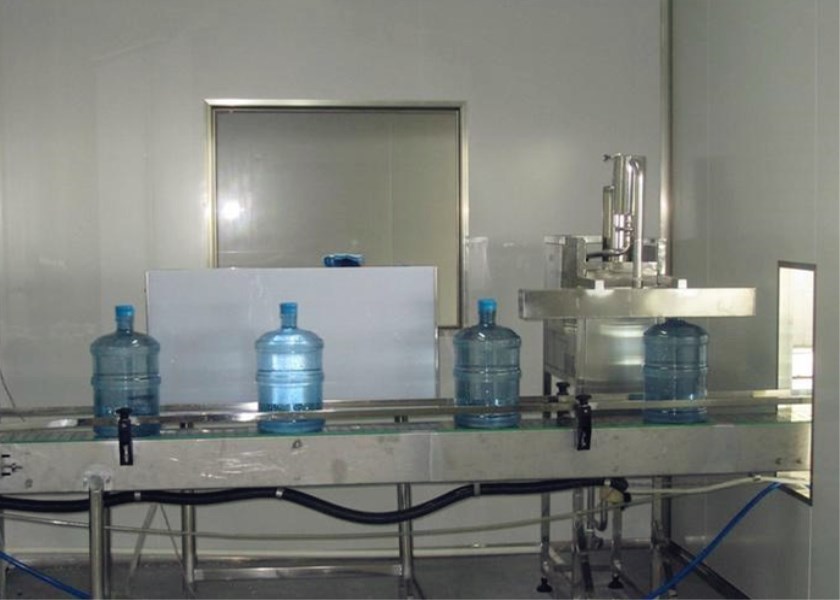

5 gallon bottle filling equipment/mineral water filling machine with low consumption
1. QGF series barreled production line consists of washing, filling and capping.
2. It is suitable for filling all kinds of round and square barrels with drinking water.
3. Those types(barrels/hour) are:100 type,150 type,200 type,300 type,450 type,600 type,900 type,1200 type.
4. The whole line is made of superior stainless steel, anti-corrosive and easy to clean.
5. The bottle washer can carry out multiple injections of washing to sterilize the bottles.
6. This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy.
Introduction
The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.
Parameter
| Model | QGF-450 | QGF-600 | QGF-900 |
| Filling heads | 3 | 4 | 6 |
| Volume | 18.9 | 18.9 | 18.9 |
| Barrel size | 270*490 | 270*490 | 270*490 |
| Capacity | |||
| Gas pressure | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 |
| Gas consumption | 0.8 | 1 | 1.2 |
| Motor power | 3.8 | 7.5 | 9 |
| Motor voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 1600 | 2000 | 3500 |
| Dimension | 4200*1600*1600 | 4800*1800*1600 |
4200*2300*1600 2800*1000*1600 |
Zhangjiagang Jiayuan Machinery Co., Ltd. is located in Zhangjiagang city, which is near to Shanghai. We professionally research, develop and manufacture beverage packaging machines. We are a high technology enterprise of Jiangsu Province, and the best supplier of China beverage packaging machinery area. We are dedicated to the most advancement technology of beverage packaging machinery, and have always been conducting good up-to-date technical communication and exchange with leading Italy, Germany, France packaging companies. We have a strong technology team for beverage packaging machines’ manufacture. We provide marketing analysis, project budget, equipment technical configuration, and training for operator etc.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
3.We are certificated by many famous certificated authories.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they canoperate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free.
