Washing Filling Capping Pure Water Glass Bottle Filling Equipment Stainless Steel

Washing Filling Capping Pure Water Glass Bottle Filling Equipment Stainless Steel

    • Washing Filling Capping Pure Water Glass Bottle Filling Equipment Stainless Steel
    • Washing Filling Capping Pure Water Glass Bottle Filling Equipment Stainless Steel
  • Washing Filling Capping Pure Water Glass Bottle Filling Equipment Stainless Steel

    Product Details:

    Place of Origin: CHINA,MAINLAND
    Brand Name: JiaYuan
    Certification: CE,SGS
    Model Number: CGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD 25000/ SET
    Packaging Details: wooden case
    Delivery Time: 15-30 working days
    Payment Terms: T/T, L/C
    Supply Ability: 15SET PER MONTH
    Contact Now
    Detailed Product Description
    Production Capacity: 2000~40000BPH CCC: SUS 304 316
    Bottle Type: Plastic Screw Cap Processing Types: Washing Filling Capping
    Filling Material: Flowing Liquid Processing: Reverse Osmosis System
    High Light:

    glass bottling machine

    ,

    glass bottle filler

    3 in 1 pure wate Glass Bottle Filling Machine Stainless steel PLC control



     Details:



    1. Product: 10000bph automatic mineral water plant machine

    2. Main Material: SS304

    3. Production capacity: 2000-4000phd

    4. Usage: Fill pure/mineral/distilled water and so on

    5. Dimension:2100*1500*2200mm

    6. Warranty: 1 year







    Description:



    Automatic 10000bph automatic mineral water plant machine

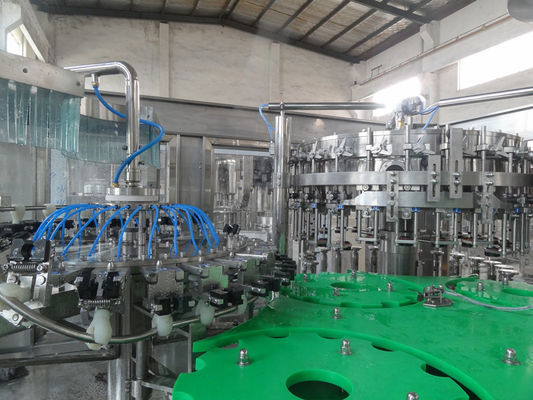

    This CGF24-24-8 Wash-filling-capping 3-in-1 unit : automatic mineral water plant machine is used to produce plastic bottled mineral water, purified water, and other non-gas beverage machinery. automatic mineral water plant machine can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.





    Characteristics:


    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.


    2. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

    3. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..


    4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.


    5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.


    6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.





    Application:


    This automatic mineral water plant machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
    integrates bottle washing, filling and capping into one monobloc unit.





    Specifications:





    1.Electrical elements
    PLC MITSUBI
    Frequency converter MITSUBI
    Touch screen WEINVIEW
    Contactor DELIXI
    Cylinder Airtac
    Pump Nan fang pump
    Switch Omron
    Electromotor Wannan Motor
    2.Suitable bottle: Round or square plastic bottle
    Bottle size 250-2000ml
    Bottle body:Φ90mm, Bottle height H:150-320mm
    Bottle neck diameter: Φ20-Φ35mm
    Cap: Plastic screw cap
    DiameterΦ25-Φ35mm Cap height:15-25mm
    3.Main parameters:
    Production capacity: 500ml,10000BPH
    Position: Washer24,filler24,capper8
    Filling temperature: Normal filling,gravity filling
    Air pressure: 0.6mpa(self-prepare)
    4.Motor powder:
    Main motor: 1.5kw Capper loading: 0.09kw
    Washing pump: 0.37kw Filling pump: 1.5kw
    Convoying motor:0.55kw Air conveyor motor:0.75kw







    Certifications

    Perfect performance water bottle glass filling machine



    Our Services

    The sample service

    1.We can send you the video of the running machine.

    2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.

    3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.

    Customized service

    1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

    2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.

    3.We are certificated by many famous certificated authories.

    After-sales service

    1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

    2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they canoperate the machine well.

    3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

    4.We provide one year warranty with spare parts free.
