Easy Operation SUS304 Carbonated Beverage Filling Machine For Plastic Bottle

Easy Operation SUS304 Carbonated Beverage Filling Machine For Plastic Bottle

    • Easy Operation SUS304 Carbonated Beverage Filling Machine For Plastic Bottle
    • Easy Operation SUS304 Carbonated Beverage Filling Machine For Plastic Bottle
    • Easy Operation SUS304 Carbonated Beverage Filling Machine For Plastic Bottle
    • Easy Operation SUS304 Carbonated Beverage Filling Machine For Plastic Bottle
  • Easy Operation SUS304 Carbonated Beverage Filling Machine For Plastic Bottle

    Product Details:

    Place of Origin: CHINA, MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: DGCF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 22000-100000 SET
    Packaging Details: WOODEN
    Delivery Time: 30WORK DAYS
    Payment Terms: T/T
    Supply Ability: 15 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Application: Beverage Filling Material: Flow Fluid
    Warranty: 1year Free Service: Oversea Service
    Driven Type: Electric Material: SUS304
    Feature: Easy Operation Packing: Wooden Cases
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    carbonated beverage filling machine

    beer making machine/carbonated beverage production line for plastic bottle





    Introduction



    Drink Filling Machine combines washing, filling and rotary capping functions in one unit, it is a fully automatic and high efficiency liquid packing equipment. It is suitable for packing beverage containing gas. Its performance is as follwing: all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material.





    Technical parameters



    Item DCGF24-24-8 DCGF32-32-10
    Capacity 8000bph(500ml) 15000bph(500ml)
    Rising heads 24 32
    Filling heads 24 2
    Capping heads 8 10
    Bottle Diameter Commonly 50-110mm (can adjustable)
    Bottle Height Commonly 150-340mm(can adjustable)
    Filling pressure 0.15-0.35Mpa
    Rising pressure 0.2-0.25Mpa
    Overall size 2780*2200*2350 3600*2650*2350
    Weight 4.5t 5.5t

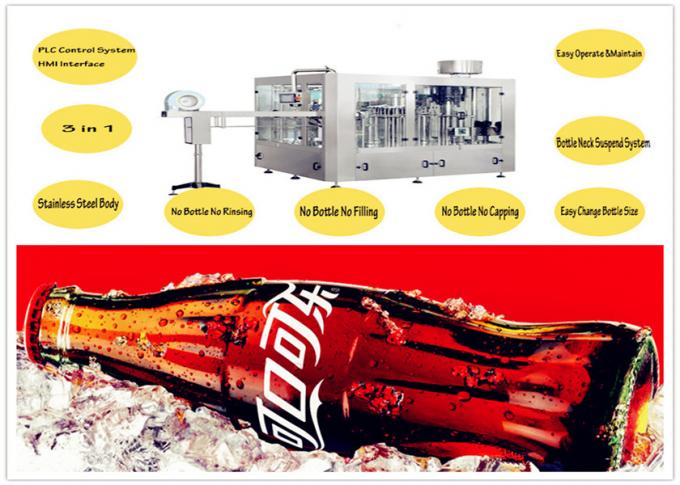

    Easy Operation SUS304 Carbonated Beverage Filling Machine For Plastic Bottle 0



    Characteristics



    a. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

    b. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

    c. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

    d. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

    e. Host adopts advanced PLC automatic control technology, the key electrical component from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



    Rinsing machine

    new design beer making machine/carbonated beverage production line with developed technology

    The rotary wheel is a fully AISI304 stainless steel welded structure.The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. The rinse is driven by driving system positioned inside machine frame via gear transmission







    Filling machine

    new design beer making machine/carbonated beverage production line with developed technology

    The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss. Rotary wheel are fully made of stainless steel AISI304. Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.





    Capping machine

    new design beer making machine/carbonated beverage production line with developed technology

    The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively. It also has the bottle check-up switch.





    Company Information



    Jiayuan company was established in 1997, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have such as CE,ISO etc certification.
    We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc.



    Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported over 20 countries, and gained favorable feedback from users. Our major engineering projects include complete dairy products production line, beverage production line, biochemical engineering production line.

    Easy Operation SUS304 Carbonated Beverage Filling Machine For Plastic Bottle 4
