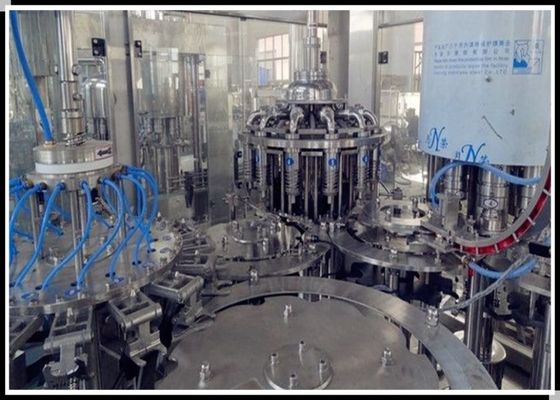

2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level

2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level

    • 2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level
    • 2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level
    • 2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level
    • 2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level
  • 2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level

    Product Details:

    Place of Origin: CHINA,MAINLAND
    Brand Name: JIAYUAN
    Certification: CE,SGS
    Model Number: RCGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 12000-53300 set
    Packaging Details: wooden
    Delivery Time: 15 work days
    Payment Terms: T/T
    Supply Ability: 15 sets per month
    Contact Now
    Detailed Product Description
    Control: Touch Screen Service: Oversea Service
    Capacity: 3000bph Weight: 2500kg
    Model: RCGF 16-12-6 Packing: Wooden Cases
    Voltage: Customized Filling Volume: Adjustable
    High Light:

    juice bottling machine

    ,

    pet bottle filling line



    2100*1500*2200 international level fruit juice production line with high quality



    Introduction



    Washing part of bottle washing filling capping machine

    a) Rotary pan is made of stainless steel 304.

    b) The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.



    Filling part of bottle washing filling capping machine

    a) Rotary pan is made of stainless steel 304

    b) The way of filling is gravitation filling.

    c) The filling valve is adopted best stainless steel 304

    d) The structure of filling valve is reasonable, the amount is correct

    e) When filling the bottle, the bottle is move but the valve is stationary. The splint of bottle-neck seizes mouth of bottles. The elevator device with the action of gear realize the up and down of bottle



    Capping part of bottle washing filling capping machine



    a) The dropping cap guide track fixes the device which can protect the cap from turning over and also set the device which can take out the inverse cap, equip a photo electricity switch which can

    stop the machine when lacking the cap and also avoid the situation that there is bottle without cap.

    b) The bottle inlet switch which is set in the capping machine, with the locking cap which is the connection of the dripping cap guide track and dialing cap pan controls the discharging of cap, making sure that stop conveyor cap when there is no bottles ,avoid the waste of cap.





    2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level 0



    Feature:

    1. The juice filling machine is used to fill PET heat-resistant bottle for fruit tea, juice and other high-temperature juice.

    2. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

    3. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer. The machine structure is reasonable and firm, the running state is stable

    4. The suspension bottle neck catcher allows the machine change the bottle type easily. Safe protective devices ensure safety of operator and machine

    5. Unique control mechanism keeps circumfluence volume below 5%. Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

    6. High efficient clean air filter circulation system ensures high sanitary requirements. Low overall machines noise that is comparable to any internationally known equipments in its class



    2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level 1

    2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level 2

    Parameter



    model RCGFB32-24-32-10 RCGFB40-32-40-12 RCGFB50-40-50-15
    bottle washing head 32 40 50
    pulp filling head 24 32 40
    juice filling head 32 40 50
    cap screwing head 10 12 15
    rated production capacity 12000BPH 15000BPH 20000BPH
    installed capacity 8.7KW 9.5KW 12KW
    overall size 5100*2600*2400mm 6250*3050*2400mm 7500*3900*2400mm





    2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level 3

    Our Service



    1.Installation

    After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.

    2.Quality Guarantee

    We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

    3.Aftersales

    1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures.



    2,After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures.





    Company Information

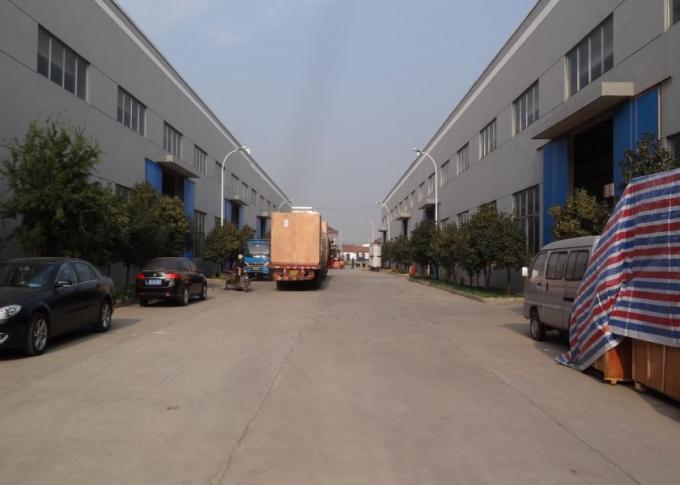

    Zhangjiagang Jiayuan Machinery Co., Ltd. is located in Zhangjiagang city, which is near to Shanghai. We professionally research, develop and manufacture beverage packaging machines. We are a high technology enterprise of Jiangsu Province, and the best supplier of China beverage packaging machinery area. We are dedicated to the most advancement technology of beverage packaging machinery, and have always been conducting good up-to-date technical communication and exchange with leading Italy, Germany, France packaging companies. We have a strong technology team for beverage packaging machines’ manufacture. We provide marketing analysis, project budget, equipment technical configuration, and training for operator etc.

    2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level 4
    2100 * 1500 * 2200 PET Juice Filling Machine Production Line International Level 5
