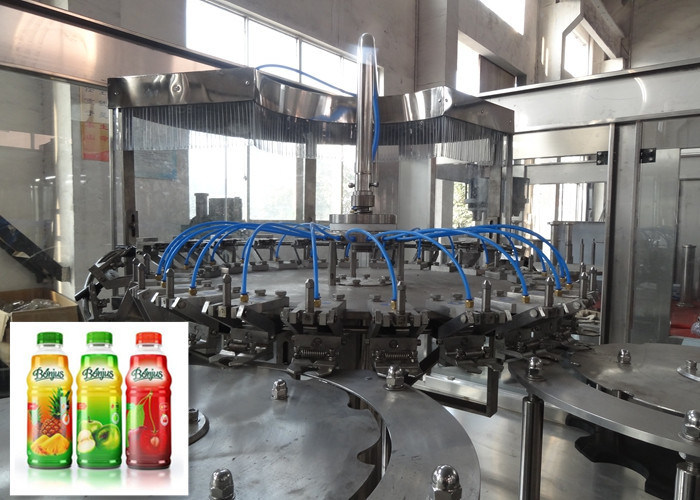

380V Fresh Blueberry Juice Filling Machine with 28mm / 30mm PE Standard Caps

380V Fresh Blueberry Juice Filling Machine with 28mm / 30mm PE Standard Caps

380V Fresh Blueberry Juice Filling Machine with 28mm / 30mm PE Standard Caps

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: jiayuan
Certification: CE,ISO,SGS
Model Number: RCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: US $15,000 - 800,000 / Set
Packaging Details: wooden box
Delivery Time: 30 work days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Filling Machine Condition: New
Application: Beverage, Chemical, Food Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V 50Hz
Power: 7.68kw Dimension(L*W*H): 2750*2180*2200mm
Weight: 4000KG After-sales Service Provided: Engineers Available To Service Overseas
Control System: PLC Control Warranty: One Year For Free
Material: Food Grade Stainless Steel 304 Filling Capacity: 10000BPH(500ml)
High Light:

juice bottling equipment

,

pet bottle filling line

Fresh buleberry juice filling/making machine with warranty of one year


Packaging & Delivery

Packaging Details: Wooden Box

Delivery Detail: 30 Working Days



Fresh buleberry juice filling/making machine with warranty of one year

1.Capacity:10000b/h
2.bottle size:250ml-2L
3.Component contact with liquid adopt SUS304
4.Delivery detail: 30days



Features of the equipment
Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
  1. Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
  2. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
  3. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
  4. Sanitary filling head system is of umbrella structure, high filling speed.
  5. Perfect filling temperature control system.
  6. Reflux tank system has the function of supplying the material automatically.
  RCGF24-24-8 RCGF32-32-10
Productivity 10000BPH 14000BPH
Rinsing Head 24 32
Filling Head 24 32
Capping Head 8 10
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min 0.5 m3/min
Motor Power 7.68kW 9.18kw
Voltage 380V
Dimension (L×W×H) 2750*2180*2200mm (L×W×H) 3600*2800*3150mm
Weight 5300kg 5000kg
Filling Principle Gravity Filling



Our Services

1.One year warranty for the whole system.

2.Free equipment installation and debugging.

3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

4.We can provide internship service and help you train the operator and mechanic.

5.Free beverage production technology and process configuration.

6.We can help you to design the product line, workshop and provide turn-key project.
