Plastic Screw Cap Water Bottle Filling Machine For Beverage / Mineral Water

Product Details:

Place of Origin:	China,Jiangsu
Brand Name:	Jia Yuan
Certification:	CE,SGS
Model Number:	CGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 25000 per set
Packaging Details:	Export Wooden Case
Delivery Time:	30 working days
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Processing Types:	Washing Filling Capping	Processing:	3 In 1 Filling Machine
Filling Precision:	Less Than 5 Mm	Suitable Cap:	Plastic Screw Cap
Control::	PLC	Voltage:	Customized
High Light:	water bottling machine , water bottling equipment

CGF18-18-6 non-areated Soda Water bottle filling machine capping washing machine

Introduction:
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Parameter:

Technical Data
Model	CGF14/12/4	CGF18/18/6	CGF24/24/8	CGF32/32/10
The number of Washing, Filling, Capping	14-12-4	18-18-6	24-24-8	32-32-8
Producing capacity; The number of bottle(600ml)/hour	2000-4000	5000-7000	8000-12000	12000-15000

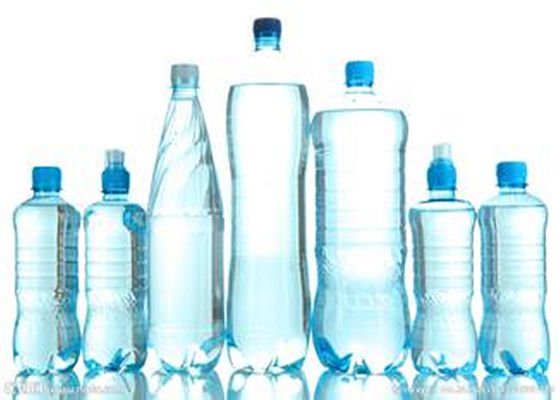

Applicable bottle specifications (mm)	φ=50-108 H=170-340 330ml-2.25L
Pressure (kg/cm2)	2~3
Motor power (kw)	Main motor 1.5kw	Main motor 2.2kw	Main motor 3kw	Main motor 4kw
Outside vacuum pump power (kw)	0.75	1.1	1.5	2.2
Overall dimension (mm) (LxWxH)	2100x1400x2500	2460x1720x2650	3100x2100x2650	3500x2500x2650
Weight(kg)	2500	3500	4200	5500
