Zhangjiagang Jiayuan Machinery Co.,Ltd.

Zhangjiagang Jiayuan Machinery CO., LTD

Professional liquid beverage filling and packing machinery manufacturer

Home Products5 Gallon Water Filling Machine

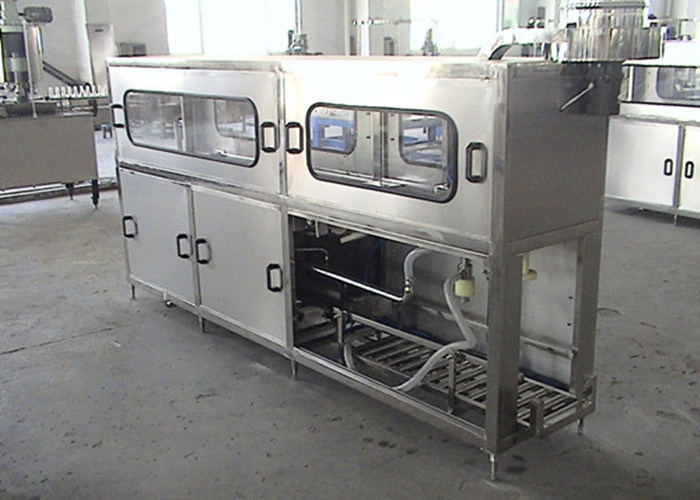

Premuim 5 gallon bucket drinking water filling machine , Bucket Filling Machine

Premuim 5 gallon bucket drinking water filling machine , Bucket Filling Machine

    • Premuim 5 gallon bucket drinking water filling machine , Bucket Filling Machine
    • Premuim 5 gallon bucket drinking water filling machine , Bucket Filling Machine
  • Premuim 5 gallon bucket drinking water filling machine , Bucket Filling Machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: QGF-150

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 50000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Condition: New
    Application: Beverage, Chemical, Food, Medical Packaging Type: Barrel,Bottles, Cartons
    Packaging Material: Paper, Plastic, Wood Automatic Grade: Automatic
    Driven Type: Electric Power: 1.75kw
    After-sales Service Provided: Overseas Service Center Available Warranty: 1 Year For Free
    Power Supply: 380V/50HZ(adjustable) Filling Type: Normal Pressure Filling
    Processing Types: Water Dimension(L*W*H): 2800X1100X1600MM
    Filling Bottle Size: 1-5gallen/3-19L Weight: 500kg

    Premuim 5 gallon bucket drinking water filling machine , Bucket Filling Machine



    Product Description

    Keyword: Filling Machine/Barreled Production Line/Bucket Filling Machine/5gallons Washer Filler Capper Monoblock/120barreled Production Line/5gallons production line/5gallons rinsing filling capping/5gallons barreled production line



    Barreled drinking water production line

    QGF series full automatic barrel filling production line

    1.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.

    2.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.

    3.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.



    Model QGF-80 QGF-150 QGF-300 QGF-450 QGF-600
    Filling heads 1 1 2 3 4
    Volume 18.9 18.9 18.9 18.9 18.9
    Barrel size 270*490 270*490 270*490 270*490 270*490
    Capacity 80 150 300
    Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
    Gas consumption 0.37 0.37 0.6 0.8 1
    Motor power 1.38 1.75 3.8 3.8 7.5
    Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
    Weight 500 700 1200 1600 2000
    Dimension 2500*1100*1600 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600



    Our Services

    1.One year warranty for the whole system.

    2.Free equipment installation and debugging.

    3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

    4.We can provide internship service and help you train the operator and mechanic.

    5.Free beverage production technology and process configuration.

    6We can help you to design the product line, workshop and provide turn-key project.Premuim 5 gallon bucket drinking water filling machine , Bucket Filling MachinePremuim 5 gallon bucket drinking water filling machine , Bucket Filling MachinePremuim 5 gallon bucket drinking water filling machine , Bucket Filling Machine
