Full Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For Soda

Full Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For Soda

    • Full Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For Soda
    • Full Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For Soda
    • Full Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For Soda
    • Full Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For Soda
  • Full Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For Soda

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: CGF16-16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 19000USD
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Application: Soda|Juice|Mineral Water|Beverage Automatic Grade: Automatic
    Bottle Type: PET Capacity: 4000bph
    Feature: Aseptic Function: 4 In 1
    Product Name: Bottle Filling Machine

     Full Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For Soda


    Quick Detail:


    1. Capacity: 4000 bottles per hour
    2. Sterilizing water rinser, pure water rinser, filler, capper 4-in-1 monoblock
    3. Fully automatic, no bottle no filling, no cap machine will stop.
    4. CE, ISO certificate
    5. Designed power supply: AC/380V/50HZ/3PHASE
    6. Customizable

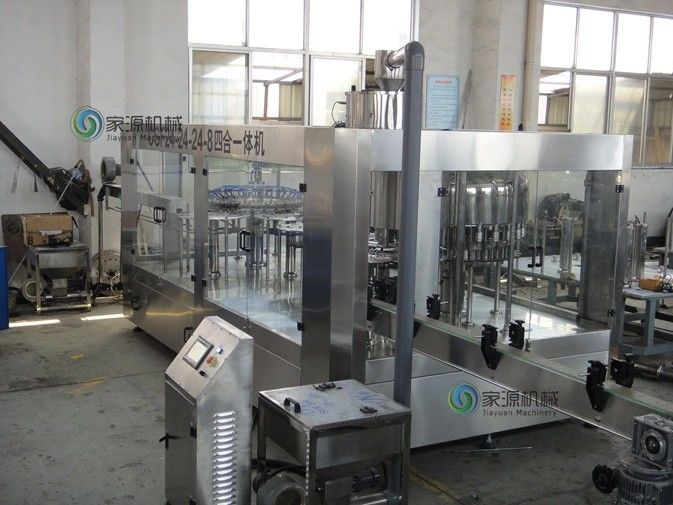

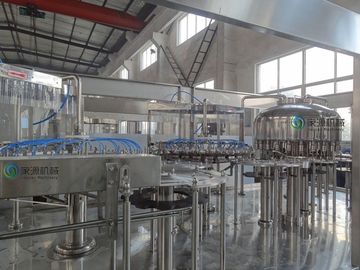

    Automatic SUS304/316 4000BPH CGF16-16-12-6 4-in-1 bottle water machine


    Description:

    Full Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For SodaFull Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For SodaFull Automatic Plastic Bottle Filling Machine 4000bph AC / 380V / 50HZ For Soda

    (1)The 4-in-1 bottle water machine is mainly used in the pure water, mineral water filling operations. The three functions of bottle wash fill and seal are composed in one body of the machine. The whole process is automatic.  The first rinsing machine is medical water rinsing machine, the second rinsing machine is purified water rinsing machine. The bottle will be cleared and sterilized after the two rinsing machine.
    (2)The bottle water machine is used in filling mineral water or pure water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

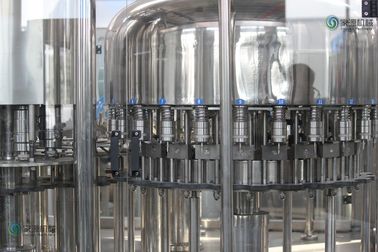

    (3)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
    (4)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
    (5)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, on the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
    (6)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is idea-preferred equipment for beverage maker



    Application

    This bottle water machine can be used for filling non-carbonated liquid beverage with normal or middle temperature into PET bottles and capping it automatically.

    1. Pure water
    2. Mineral water
    3. Juice filling with normal temperature or middle temperature.



    Specifications:


    Model:

    CGF16-16-12-6

    Capacity:500ml(b/h)

    2000-4000

    Suitable Bottle Height(mm)

    130-280

    Suitable Bottle Body Diameter(mm)

    Φ40-φ80

    Suitable Cap Shape

    Plastic Screw Cap

    Power: (W)

    4.23

    Filling Temperature:

    Room Temperature

    Water Consumption for Washing Bottle(kg/hr)

    800

    Gas Consumption(m3/min)

    0.3

    Size L×W×H (mm)

    2100×1500×2200

    Total Weight:(kg)

    2000

    Power Supply

    380V/50HZ



    Competitive Advantage:


    1. The three functions of bottle washing, filing and capping are composed in one body of the machine.
    2. The whole process is automatic, no bottle no filling, no cap, machine will stop.
    3. So this machine has three steps, first is washing, second is filling, third is sealing the bottle.
    4. Low power consumption, better material SUS 304, SUS 316.
    5. Small size, simple structure, low investment
    6. Auto complete line, need less worker.
