Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines

Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines

    • Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines
    • Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines
    • Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines
    • Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines
  • Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: RCGF16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 25000USD
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Application: Juice|Mineral Water|Beverage Automatic Grade: Automatic
    Bottle Type: PET|Round Bottle Capacity: 4000bph
    Feature: Aseptic Product Name: Bottle Filling Machine



    Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines





    Quick Detail:



    1. Model: RCGF16-12-6
    2. Capacity: 2000-4000BPH@0.5L bottle
    3. Seller: Jiayuan
    4. Application: Juice, energy drink, tea beverage etc. hot filling.
    5. Designed applicable bottle: 0.2L-2L round PET bottle
    6. Designed applicable cap: plastic screw cap.
    7. Full automatic, No bottle no filling, No cap machine stop.
    8. Easy operate for changing different bottle volume.
    9. CE & SGS Certificate
    10. Customizable
    11. 1 Year warranty
    12. Juice filling machine

    Automatic SS304/316 RCGF16-12-6 Juice Filling Machine RFC 3-in-1 Monoblock Hot Filling Machine





    Description:



    1. High efficient hot filling machine/filler range from 1000bph to 20000bph, can apply to juice, tea, sport drinks, function drinks, etc.

    2. Rinsing / Filling / Capping 3-in-1 Monoblock

    Size of bottle: 200ml-2000ml round PET bottle.

    Cap type: 28~38mm standard plastic screw caps
    Method of bottle transferring: By holding neck
    Products: Tea/juice/energy drink/milk beverage.

    Structure:

    -Base

    -Rinser

    -Filler

    -Capper


    (1). Rinser

    Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines
    Rotative rinsing turret one treatment, fixed nozzles, with grippers.
    The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.
    After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

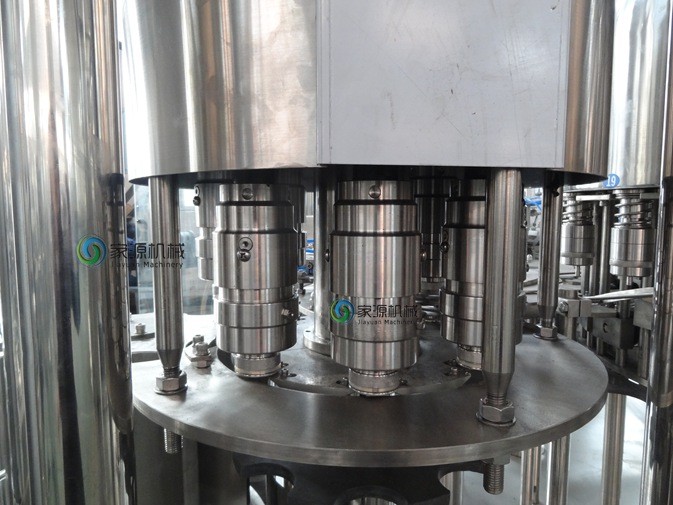

     (2). Filler

    Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines
    The starwheel drive the bottles always "by holding bottle neck" through the rinsing, filling and capping steps. For different types of bottle, it is easy to adjust the structure by our specialized design.
    Product bowl can reduce the loss of heat. If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recirculation tank and be pumped return to UHT again to be sterilized and heated.




    (3). Capper

    Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines

    Rotative capping turret, suitable to the application of plastic screw caps on PET bottles

    The fixed part consists of the cap-sorting bowl, the cap feeding elevator with relevant motor and the cam actuating the capping heads.

    The heads are raised and lowered by the action of a follower that is riding on a shaped cam.





    Applications:

    Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines

    1. Juice filling with normal(20-30℃), middle(50-60℃) or high temperature(85-95℃)

    2. Energy drink

    3. Tea beverage

    4. Pure water/mineral water/portable water





    Specifications:



    Model

    RCGF16-12-6

    Capacity:500ml

    2000-4000b/h

    Suitable Bottle:

    Height: 150-310(mm)

    Diameter: φ50-φ92(mm)

    Suitable Cap:

    Plastic Screw Cap

    Filling Pressure:

    0.6Mpa

    Power

    5.88kw

    Size

    2400×1670×2350mm

    Weight

    2500kg





    Competitive Advantage:



    1. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
    2. Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
    3. Sanitary filling head system is of umbrella structure, high filling speed.
    4. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
    5. Recirculation tank system has the function of supplying the material automatically.
    6. Perfect filling temperature control system.
    7. Perfect CIP system.
