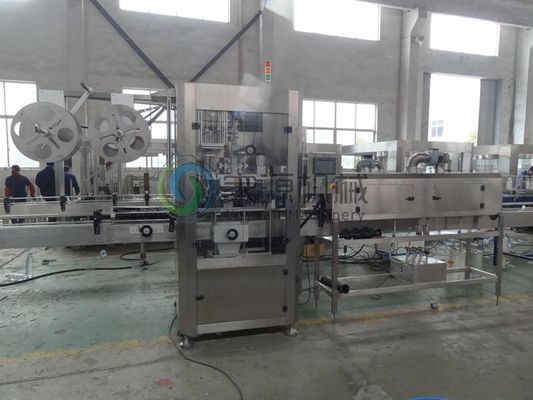

Round Bottle Shrink Labeling Machine PVC Film 20000bph with 3Kw Power

Round Bottle Shrink Labeling Machine PVC Film 20000bph with 3Kw Power

    • Round Bottle Shrink Labeling Machine PVC Film 20000bph with 3Kw Power
    • Round Bottle Shrink Labeling Machine PVC Film 20000bph with 3Kw Power
  • Round Bottle Shrink Labeling Machine PVC Film 20000bph with 3Kw Power

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: WD –S350

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 40 days
    Payment Terms: T/T; L/C
    Supply Ability: 5 sets/month
    Contact Now
    Detailed Product Description
    Applied Material: PVC|PET|OPS Automatic Grade: Auto
    Bottle Type: PET Capacity: 20000bph
    Driven Type: Electric Power: 3Kw
    Product Name: Shrink Labeling Machine

    Round Bottle Shrink Labeling Machine PVC Film 20000bph with 3Kw Power



    Quick Detail:



    1. Product: Auto Sleeve Shrink Machine

    2. Model:WD –S350

    3. Main Material: SS304

    4. Production capacity: 20000bph(500ml)

    5. Usage: Labeling machine

    6. Warranty: 1year free

    Auto Sleeve Shrink Machine Auto





    Description:



    Auto Sleeve Shrink Machine

    1) The machine is made of stainless steel and high quality Aluminum alloy, structure in reason, tighten, adjustment conveniently.

    2) Not need ground feet bolts, move conveniently, flexible assort production field.

    3) Shrink film volume label frame, according to different volume label paper pipe adjusted range 5”-10”.

    4) Transmission machine can be adjusted conveniently without tools, which make is more suitable for different bottle sizes.

    5) Forced insertion design proves to be reasonable and convenient.

    6) The system of cutting volume label ensures last error.

    7) Special designed knife plate is changed free with the related specifications.

    8) Newel nip system makes change and installation rapid without tools.

    9) Disport bottle screw, located strap, transport chain adopts synchronization adjust model, adjust facility.

    10) Introduce Japanese servo motor and high-delicacy photo electricity, the length of cutting label is precise.

    Flow Chart : PVC Label --->Shrink labeling machne ---> shrink tunnel ---> steam generator ---> Finish



    Machine parameter



    Input Power

    3KW

    Input Voltage

    3 Phase, 380/220VAC

    Production Efficiency

    21,000-24,000b/h

    Size of Host Machine(mm)

    2100L*1,100W*2,200H

    Applicable Diameter of Bottle Body

    dia.28mm-125mm

    Applicable Length of Label

    30 mm~180mm

    Applicable Thickness of Label

    0.03 mm~0.13 mm

    Applicable Internal Diameter of Paper Tube

    5″~10″adjust it at will





    Applicable Bottle Types



    Various kinds of bottle types, for example; round bottle, square bottle, flat bottle, curved bottle and cup-oshaped,

     etc.











    Main technical parameters:

    Electrical Source

    3&380/220VAC

    Power

    3KW

    Dimension

    2000*1000*2150(mm)

    Packing Speed

    350BPM(MAX)

    Bottle Dimension

    28-125*300(H)mm

    Label Thickness

    0.04-0.07mm

    Applied Material

    PVC PET OPS

    Label thickness

    30-250mm(MAX)

    Total Weight

    450kg



    Competitive Advantage:



    Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

    1. The company around 110 KM away from Shanghai, has convenient traffic.

    2. The company was established in 1999, has rich experience.

    3. We are an CE&SGS certified company.

    4. We can produce kind of filling&packing machine, such as

    1. Bottled water production line
    2. Carbonated soft drinks production line
    3. Hot-fill juice and tea production line
    4. 5 Gallon bottled water production line
    5. Water treatment machine and packing machine

    5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
