500ml Mineral Water Barrel Filling Machinery , 1.5 Kw Linear Filling Machine

500ml Mineral Water Barrel Filling Machinery , 1.5 Kw Linear Filling Machine

    • 500ml Mineral Water Barrel Filling Machinery , 1.5 Kw Linear Filling Machine
    • 500ml Mineral Water Barrel Filling Machinery , 1.5 Kw Linear Filling Machine
    • 500ml Mineral Water Barrel Filling Machinery , 1.5 Kw Linear Filling Machine
    • 500ml Mineral Water Barrel Filling Machinery , 1.5 Kw Linear Filling Machine
  • 500ml Mineral Water Barrel Filling Machinery , 1.5 Kw Linear Filling Machine

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: QS-12; CYG-12; FXZ-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD8500
    Packaging Details: Wooden case for shipment
    Delivery Time: 20 days
    Payment Terms: T/T; L/C
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Application: Liquid|CSD|Juice|Beer|mineral Water Automatic Grade: Auto
    Bottle Type: PET|Barrel Capacity: 2000bph
    Feature: Aseptic Product Name: Beverage Filling Line
    High Light:

    Liquid Barrel Filling Equipment

    ,

    Beverage Filling Line

    500ml Mineral Water Barrel Filling Machinery , 1.5 Kw Linear Filling Machine





    Quick Detail:



    1. Product: Small capacity mineral water bottling machine
    2. Main material: SS304 (can be tested)
    3. Production capacity: 2000bph (500ml)
    4. Certificate: CE&SGS
    5. Install: Engineer available to abroad

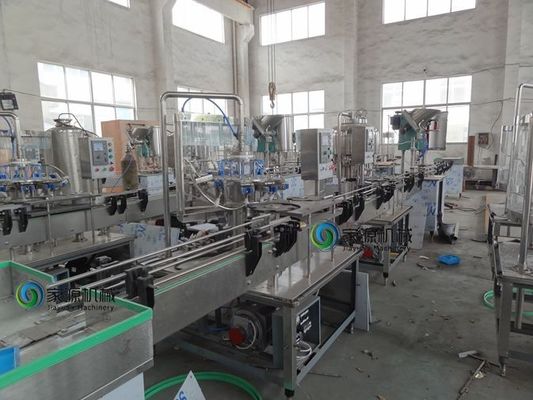

    Small capacity mineral water bottling machine





    Description:



    Small capacity mineral water bottling machine

    1. This equipment is automatic washing filling capping three in one machine. It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

    2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

    3. Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.

    4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

    5. Main electrical components are all imported from world famous brands to guarantee excellent performance.





    Applications:



    Small capacity mineral water bottling machine fills all kind of NON-carbonated beverage and low thickness beverage and fruit powder mixing drinks. All parts of this machine is made of stainless steel materials, it cannot cause rust to influence the filling beverage, it not only reach the standard of sanitation, but also prolong its using life





    Specification



    Rinsing Machine





    (1). Rinsing Capacity 2000bottles / hour

    (2). Fitting Bottle Size Height: 150-300mm

    Diameter: 50-90mm

    (3). Running Method Continuous Gyration Running

    (4). Number of Rinsing Position 12 Pieces

    (5). Power of the Machine 1.5 kw

    (6). Overall Weight of the Machine 700kg

    (7). Overall Dimensions 1400×1200×1800mm



    Filling Machine





    This machine is ideal auto-filling device at present

    (1). Range of bottle volume 250-2000ml PET bottles or PET bottles

    (2). Range of bottle size

    a. Diameter of bottle 50-90mm

    b. Height of bottle 200-330mm

    c. Inner-diameter of bottle ≥17mm



    Capping Machine





    Capacity: 1500-2000bottles / hour

    Power of the main motor 1.2Kw

    Overall dimension 920X800X1940mm

    Total weight: 500Kg
