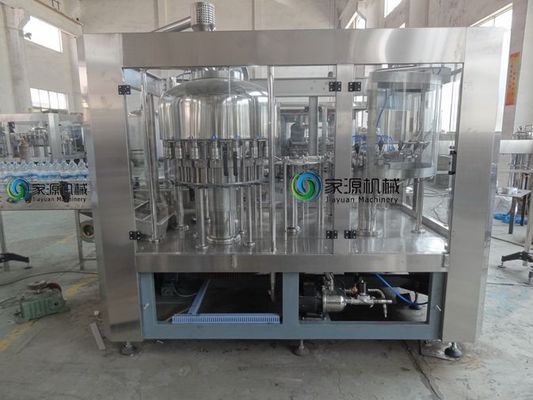

Soda Washing Filling Capping Machine 4Kw With 6 pcs Capping Head

Soda Washing Filling Capping Machine 4Kw With 6 pcs Capping Head

    • Soda Washing Filling Capping Machine 4Kw With 6 pcs Capping Head
    • Soda Washing Filling Capping Machine 4Kw With 6 pcs Capping Head
    • Soda Washing Filling Capping Machine 4Kw With 6 pcs Capping Head
    • Soda Washing Filling Capping Machine 4Kw With 6 pcs Capping Head
  • Soda Washing Filling Capping Machine 4Kw With 6 pcs Capping Head

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: CGF18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD20000
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Application: Liquid|Juice|Beverage|Soda Automatic Grade: Auto
    Bottle Type: PET|Can|Barrel Capacity: 6000bph
    Driven Type: PLC|Electric Power: 4Kw
    Product Name: Water Filling Machine Filling Head: 18 Pcs
    Capping Head: 6 Pcs Material: SS304
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine

    Water Filling Machine Beverage Plastic Bottle Capping Equipment





    6000bph mineral water washing filling capping machine



    Quick Detail:



    1. Product: 6000bph mineral water washing filling capping machine

    3. Main Material: SS304

    4. Production capacity: 6000bph(500ml)

    5. Usage: Fill pure/mineral/distilled water and so on

    6. Dimension: 2450*1800*2200mm

    7. Warranty: 1year free







    Description:



    Main Features of 6000bph mineral water washing filling capping machine

    1. Air Conveyor connectes with bottle-in starwheels. Bottle neck holding transferred.

    2. Clamp transferring technology varied bottle types.

    3. With little abrasion. Stable Transferring.  Easy to change bottles.

    4. With ring type pressure bearing hydraulic cylinder.

    5. With high filling speed and exact liquid level.

    6. Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

    7. The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles.

    8. Easy to operate and maintain.

    9. PLC and transducers and othe main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.





    Application:


    This machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
    integrates bottle washing, filling and capping into one monobloc unit.





    Specifications:



    1. Feature

    6000bph mineral water washing filling capping machine

    1. This equipment is automatic washing filling capping three in one machine. It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

    2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

    3. Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.

    4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

    5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

    2) Technical parameter

    Model

    CGF18-18-6

    Rinsing head

    18pcs

    liquid filling head

    18pcs

    Capping head

    6pcs

    Capacity

    6000bph (500ml calculate)

    2000bph (1500ml)

    Washing pressure

    0.2-0.3Mpa

    Filling Temperature

    Room temperature

    Filling style

    Isobaric filling

    Compressed air

    0.5-0.6Mpa

    Water consumption

    1.5t/h(ex beverage water)

    PET bottle type

    Bottle dia.φ50-φ90mm

    Bottle height. φ160~φ340mm

    Suitable cap type

    screw cap

    Total power

    4KW

    Total weight

    3000kg

    (L×W×H)Overall Size

    2650×1900×2400mm









    Competitive Advantage:



    Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

    1. The company around 110 KM away from Shanghai, has convenient traffic.

    2. The company was established in 1999, has rich experience.

    3. We are an CE&SGS certified company.

    4. We can produce kind of filling&packing machine, such as

    1. Bottled water production line
    2. Carbonated soft drinks production line
    3. Hot-fill juice and tea production line
    4. 5 Gallon bottled water production line
    5. Water treatment machine and packing machine

    5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
