Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JIAYUAN |
| Certification: | CE,ISO,SGS |
| Model Number: | DGCF32-32-10 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $30,000 - 560,000 / Set |
| Packaging Details: | wooden box |
| Delivery Time: | 30 working days |
| Supply Ability: | 10 Set/Sets per Month |
| Driven Type: | Electric | Power: | 8.07kw |
|---|---|---|---|
| Dimension(L*W*H): | 3600*2200*2600mm | After-sales Service Provided: | Overseas Service Center Available |
| Filling Capacity: | 8000BPH(500ml) | Filling Type: | Balanced Pressure Filling |
| Weight: | 5000KG | ||
| High Light: | 8.07KW Carbonated Soft Drink Production Line,8000BPH 500ml Water Filling machine,8000BPH 500ml Water Bottling machine |
||
| Model: | DCGF32-32-10 |
| Capacity :500ml | 8000BPH |
| Bottle shape: | Round or square |
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
| Cap: | PE srew cap |
| Filling precision: | ≤±5mm |
| Filling pressure:(Mpa) | 0.15-0.35 |
| Rinsing pressure:(Mpa) | 0.2-0.25 |
| Filling volume :(L) | 200ml-2000ml |
| Overall size:(mm) | 3600*2200*2600mm |
| Weight: (kg) |
5000kg |
| Power | 8.07kw |

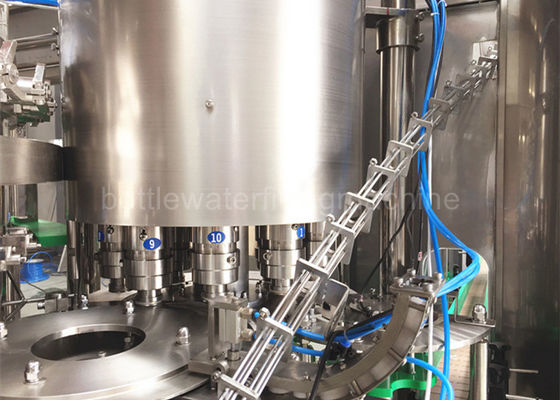

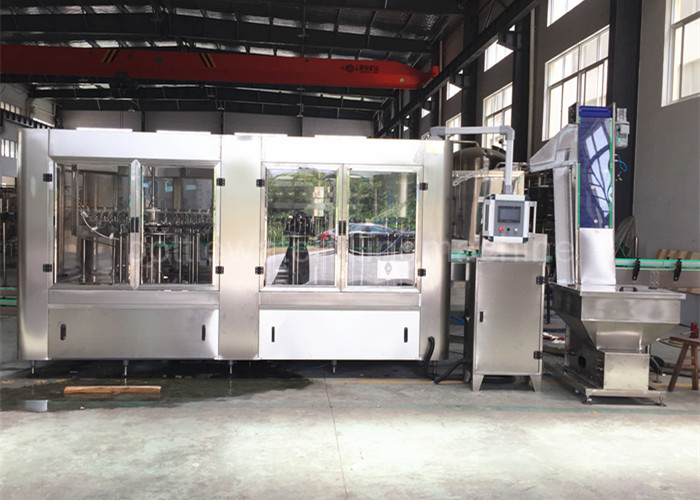

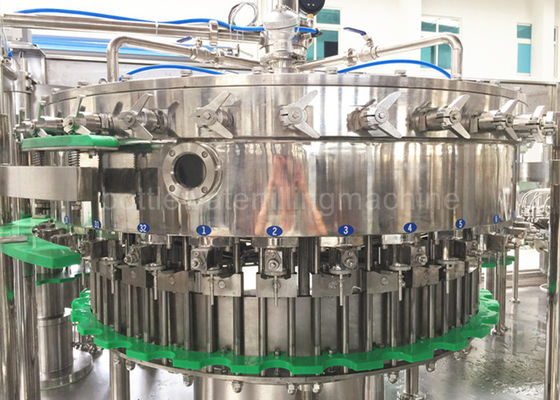

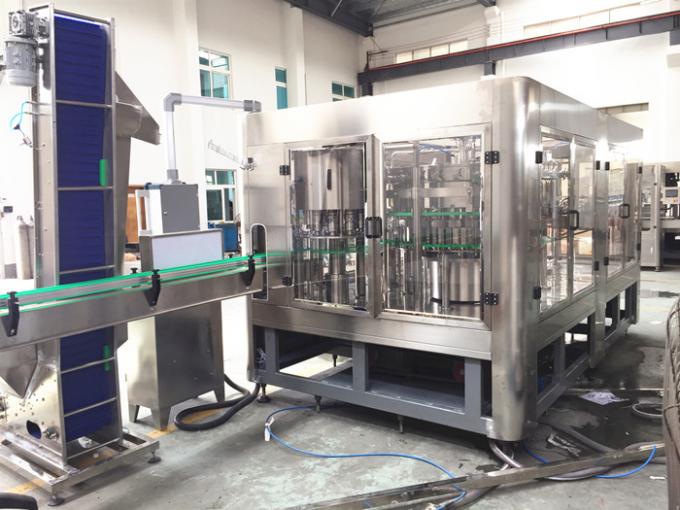

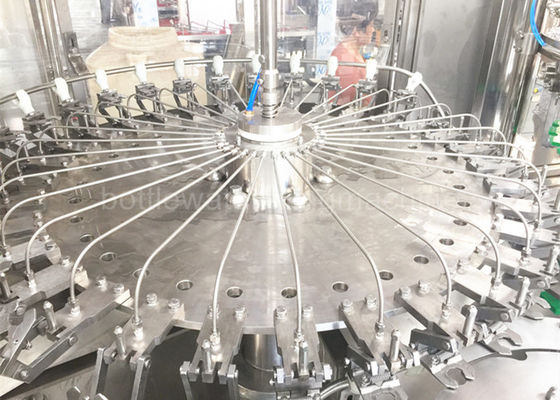

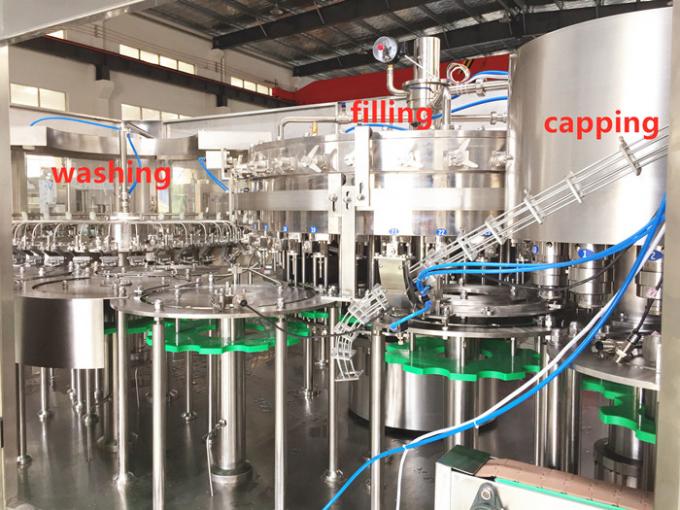

Images of carbonated soft drink production line
Features Of Carbonated Soft Drink Production Line
1. Adopts the negative pressure filling which we specifically design for CSD filling, it ensures minimal loss of CO2 from the product
2. The configuration of filler is advanced, pithy and rational and the driving and up-down transmission is located between the stainless steel working plat and the bracket and their waterproof is good, sanitary and credible and adjusting and maintaining are very easy.
3. We design the filling valves on basis of foreign advanced technique for adapting high-speed hot filling. It can ensure the valves open and close flexibly because of using guide sheath. Adopting easy-fixed configuration, the valve is easy to cleaning promptly and has automatic cleaning function.
4. The filling operation is faster and more stable because the new type micro pressure filling system is adopted.
Advantages of carbonated soft drink production line
A. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as Mitsubishi and Siemens. These series carbonated drink filling machine can handle max 2 liter pet bottle. Welcome to inspect Carbonated Drink Filling Machine in our factory.
