Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | CHINA |
Brand Name: | JIAYUAN |
Certification: | CE ISO |
Model Number: | BDCGF16-12-6 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | please inquire |
Packaging Details: | standard wooden case |
Delivery Time: | 40 working days |
Supply Ability: | 300 sets per year |
Product Name: | Glass Bottle Filler | Funtion: | Rinser Filler Cacpper |
---|---|---|---|
Filling Material: | Beer, Carbonated Soft Drink, Soda | Capacity: | 1000-3000bottles/hr |
Suitable Bottle: | Glass Bottle 20-200cl | Control: | PLC+HMI |
High Light: | Co2 200cl carbonated filling machine,Injection 200cl soft drink filling machine,Co2 200cl glass bottle filler |
Glass Bottle Fillers For Soft Drinks, Beer Bottling Equipment Full Turnkey Line
Introduction
Final product: beer, carbonated soft drink, soda drink, cola
This is glass bottle filling machine, which combines riner filler and capper
in one unit, can fill different size bottle, 200-2000ml only by changing some
changeoers.

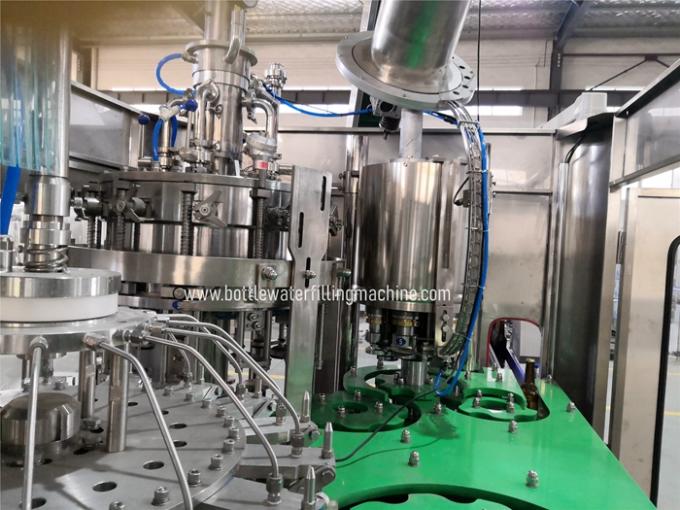

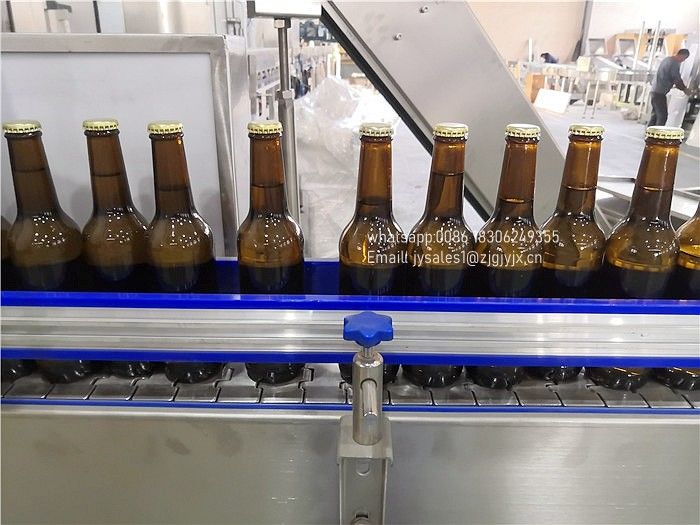

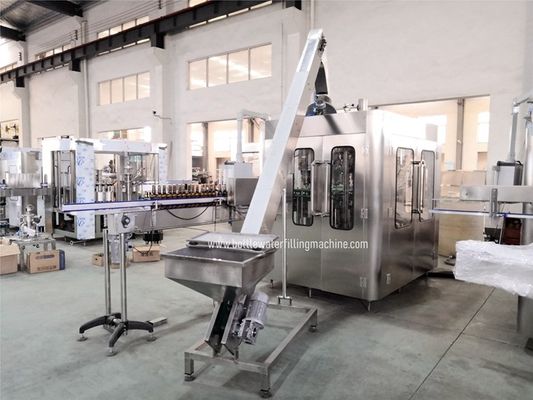

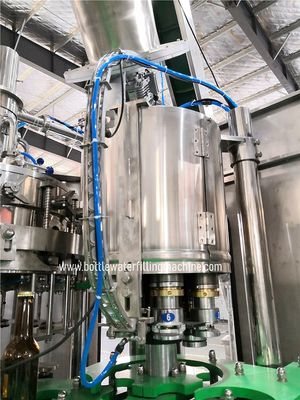

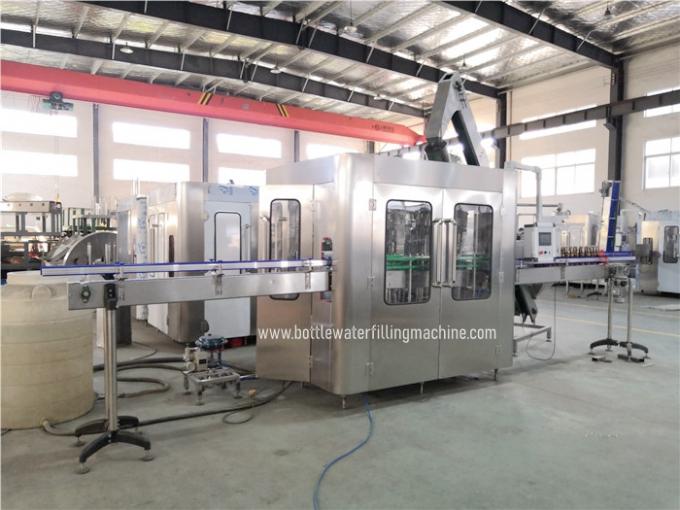

Machine show
16-12-6 Glass Bottle Fillers For Soft Drinks, Beer Bottling Equipment Full Turnkey Line
The 12 heads filling machine designed by HG Company adopts the counter pressure filling
technology which can perfectly realize the requirments of twice vacuum, Co2 injection.
The machine also adopts 3 in 1 compact design, easy to operate and maintain.
Parameter
Item | Parameters | Item | Parameters |
Washing heads | 16 | Vacuum pump | 0. 20m3/h |
Filling heads | 12 | Power |
main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor:1.1KW chain motor: 0.75KW |
Capping heads | 6 | Dimensions | Accoring to the machine |
Capacity | 1000-3000BPH | N.W. | 2500kg |
Bottle type |
height:150~ 300mm bottle neck:50~85mm bottle diameter: 50-75mm |
Working voltage AC | It can be customized by the customers'electrical conditions. |
Air consumption | 0.15m3/min(0.4~0.6Mpa) | Control voltage DC | It can be customized by the customers'electrical conditions. |
CO2consumption | 1.6kg/l000L | Frequency converter | SIEMEMS |
Water consumption | 0. 8m3/h | PLC | SIEMEMS |
Touch screen | PLC | Pneumatic element | SMC |
we can supply complete line plants, include
1. water treatment
2. beer/carbonated drink mixing sytem
3. filling machine
4. labeling machine
5. packing machine
you are welcome to contact for more information...
