2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer

2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer

    • 2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer
    • 2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer
    • 2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer
  • 2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIAYUAN
    Certification: CE ISO
    Model Number: GD18-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: please inquire
    Packaging Details: standard wooden case
    Delivery Time: 40 working days
    Supply Ability: 300 sets per year
    Contact Now
    Detailed Product Description
    Name: Beer Can Filler Seamer Filling Material: Beer, Carbonated Soft Drink
    Capacity: 500-20000 Cans/hr Control: PLC+Touch Screen
    Machine Material: Stainless Steel Power: 380V Or Customize
    High Light:

    SUS304 Drink Filling Machine With Sealer

    ,

    SUS304 carbonated beverage filling machine

    ,

    isobaric soda filling and capping machine

    Beer Can Filler Seamer, Beer Canning Machine Cost, Can Filling-Sealing Machinery



    DESCRIPTION

    This is fully automatic can filling sealing machine, adopt isobaric filling technology, can fill beer and carbonated drink,

    like soft drink, soda water, energy drink and other carbonated drink.

    It can fill different size can, only need the diameter is same, no need to change any part.

    The capacity is from 500  to 20000 cans/hr.



    Beer can filling-sealing 2-1 machine is a filling sealing 2 in 1 machine designed combined with the actual situation in our country after the introduction and absorption.

    It adopts the isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine. Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet.

    The main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of high efficiency, low noise and smooth operation. It adopts frequency conversion steeples speed regulation and is controlled by PLC industrial computers. Sealing machine and filling machine are connected by hooks coupling universal coupling to make sure them a same working pace.



    MACHINE DETAILS

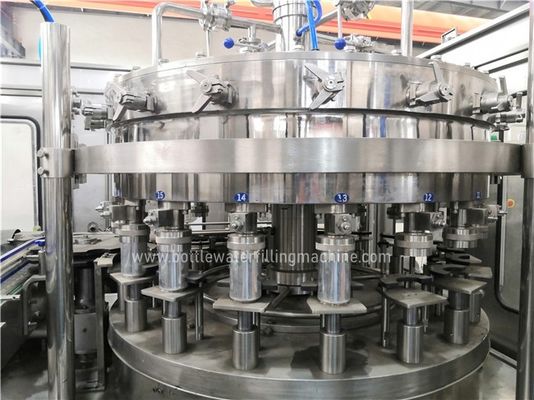

    2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer 0

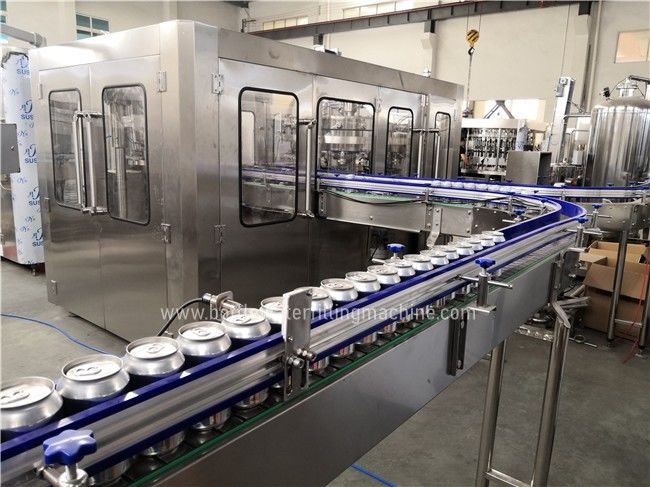

    2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer 1

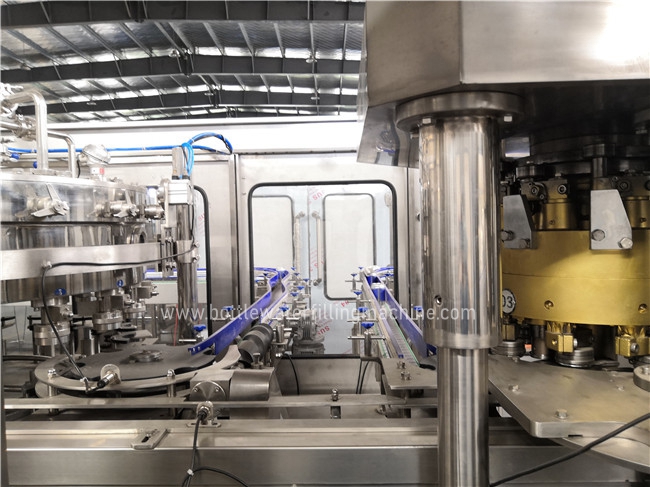

    2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer 2

    Final product

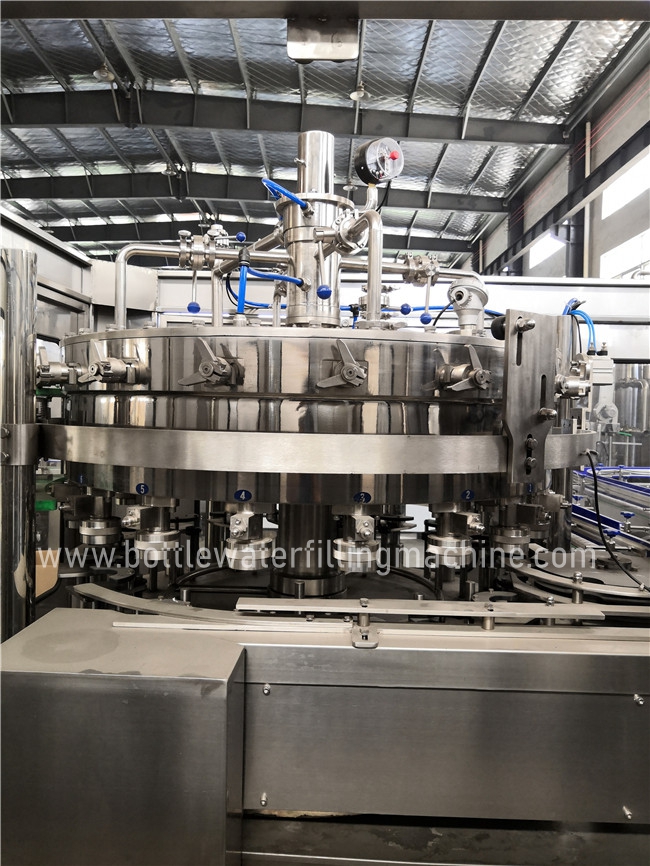

    2 In 1 SUS304 Soft Carbonated Drink Filling Machine With Sealer 3



    Technical Parameters
    Model GD18-4
    Filling material Beer, soft drink, soda drink, sparkling water, energy drink, cola
    Capacity 4000-6000cans/hr
    Filling heads 18
    Capping heads 4
    suitable can PET can,Aluminium can
    Weight 4500kg
    Main motor power 4.5kw



    Control System
    S/N
    Name
    Brand
    Country
    1
    Main motor
    ABB
    Switzerland
    2
    Inverter
    MITSUBISHI
    Japan
    3
    PLC
    OMRON
    Japan
    4
    Touch screen
    MITSUBISHI
    Japan
    5
    Contactor
    SCHNEIDER
    France
    6
    Thermo- relay
    SCHNEIDER
    France
    7
    Air-break switch
    SCHNEIDER
    France
    8
    Proximity switch
    TURCK
    USA
    9
    Photoelectric switch
    BANNER
    USA
    10
    Air circuit system
    SMC
    Japan
    11
    Water pump
    Southern
    China
