3kw Carbonated Soft Drink Beer Can Filling Machine

3kw Carbonated Soft Drink Beer Can Filling Machine

    • 3kw Carbonated Soft Drink Beer Can Filling Machine
    • 3kw Carbonated Soft Drink Beer Can Filling Machine
    • 3kw Carbonated Soft Drink Beer Can Filling Machine
  • 3kw Carbonated Soft Drink Beer Can Filling Machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: DGF18-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $8,700-500,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Capacity: 4000-6000 Cans Per Hour Filling Material: Carbonated Drink,soda Water,

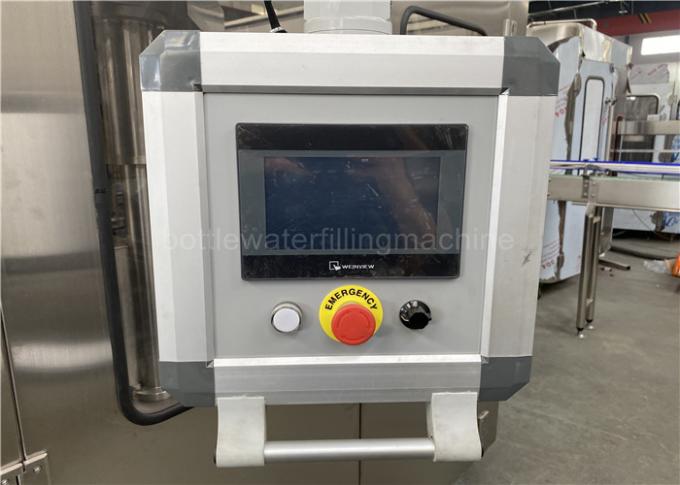

    Control: PLC+touch Screen Filling Pressure: Balanced Pressure
    Warranty: One Year For Free Driven Type: Electric
    High Light:

    3kw beer can filling machine

    ,

    PLC beer can filling machine

    ,

    touchscreen beer can filling machine

    3kw Carbonated Soft Drink Beer Can Filling Machine/Canning Line









    Technical parameter

    Model DGF18-4
    Capacity (can/Hour) 6000
    Suitable can size ( ml )

    150ml-500ml

    φ53-φ72.9mm

    height 65-190mm

    Can size 200/202/206/209
    Heads of filling 18
    Heads of sealing 4
    Filling way whole machine bottom lifting up, and normal pressure filling
    Filling temperature(℃ ) 65℃ -95℃ Normal temp or 65-95° C
    Power source specification AC380V/50HZ
    Power (kw) 3
    Overall dimension(mm) 2500x2000x2350
    Weight(kg) 3800





    3kw Carbonated Soft Drink Beer Can Filling Machine 0



    3kw Carbonated Soft Drink Beer Can Filling Machine 1
