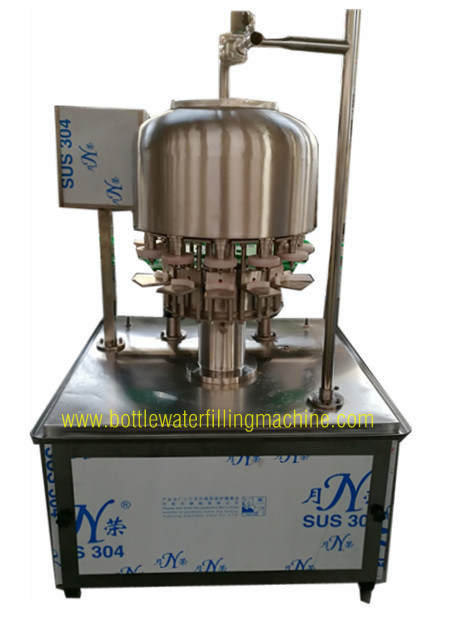

Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine

Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine

    • Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine
    • Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine
    • Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine
    • Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine
  • Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: JIAYUAN
    Certification: CE SGS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 4000
    Packaging Details: standard wooden case
    Delivery Time: 50 days
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Canning Machine Function: Can Washing Filling Sealing
    Filling Material: Water, Juice, Flavor Drink Capacity: 1500-2000cans/hr
    Packaging Type: Cans Application: Beverage

    Beverage Filling Machine, Automatic Can Filling Line, Beverage Canning Machine



    Description:

    This canning machine is used to produce various juice, flavor water or other still beverage.

    Can wash fill and seal, suitable for tin can, pop can, PET can. The capacity is about 1500-2000CPH.

    It's ideal equipment for startsup and small scale production.



    01-Empty Tank Spray Washer.

    1/Scope of application: water spraying and drying on the slope of the tin can.
    2/water spraying box made by stainless steel structure.
    3/the built-in ¢32 mm stainless steel spray pipe, divide into two segments, hot and cold water tank temperature higher than 85 degrees.
    4/tank cage, by ¢article 8 mm stainless steel.
    5/the support frame is composed of 50mm x 50mm x 2mm stainless steel square pipe.

    Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine 0

    02 - Filling Parts.
    - 304/316 Stainless steel high precision filling nozzle
    - Filling volume adjustable in fine rank, same liquid level after filling
    - All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
    - 304/316 stainless steel filling pump
    - Efficient spray nozzle rinse thoroughly and save water for flushing

    Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine 1

    03-Capping Parts.

    - Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
    - All 304/316 stainless steel construction
    - Capping effect is stable and reliable, Defective rate ≤0.2%
    Small Juice Filling Machine, Pineapple Canning Fruit Juice Industrial Machine 2



    Model
    GDF 12-1
    GDF 18-6
    GDF 24-6
    Production Capacity ( c/h)
    1000-2000
    3000-6000
    4000-9000
    Power ( kw )
    0.75
    3.7
    3.7
    Weight ( kg )
    1800
    2500
    3000
    Overall Dimensions ( mm )
    950*1040*1850
    2320*1400*1900
    2580*1675*1900




    We can provide complete line plants for beverage production, include:

    1. water treatment;

    2. beverage mixing system;

    3. filling system;

    4. packing system



    GOOD QUALITY COMES FROM DETAILS
    We are confident about our product quality because of the Quality Assurance System
    backed by technical capabilities and production capacity.
    We believe “all steps in production are quality control processes”.
