Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | JIAYUAN |
Certification: | CE,ISO,SGS |
Model Number: | DGCF60-60-15 |
Minimum Order Quantity: | 1 Set/Sets |
---|---|
Price: | US $30,000 - 560,000 / Set |
Packaging Details: | wooden box |
Delivery Time: | 30 working days |
Supply Ability: | 10 Set/Sets per Month |
Application: | Beverage, Chemical, Food, Medical | Driven Type: | Electric |
---|---|---|---|
Power: | 12kw | Dimension(L*W*H): | 6600*6600*2600mm |
After-sales Service Provided: | Overseas Service Center Available | Filling Capacity: | 24000BPH(500ml) |
Filling Type: | Balanced Pressure Filling | Processing Type: | Carbonated Drink |
High Light: | Carbonated Soft Drink Filling Machine,CSD Filling Machine |
We provide seris carbonated drink filling machine, csd filling machine, csd filler for the carbonated
soft drink ( CSD ) plant for bottle filling
Bottle filling machine, Carbonated Drink Filling Machine, Csd Filling Line, Csd Filling Equipment,
Soft Drink Filling Machine, Carbonated beverage Filling Machine.
1. Material: The material which contact directly with the liquid is the SUS304 (Food grade),
made in China. The 3-in-1 is mainly used to fill pure water, Mineral water, carbonated drinks,
wine and juice, tea etc.
2. This machine is mainly for filling carbonated beverage, like Feda, sprite, coca cola.and energy drink.
You can click this below picture to see the video:
https://www.youtube.com/watch?v=LtzlEBGCvAg&feature=share

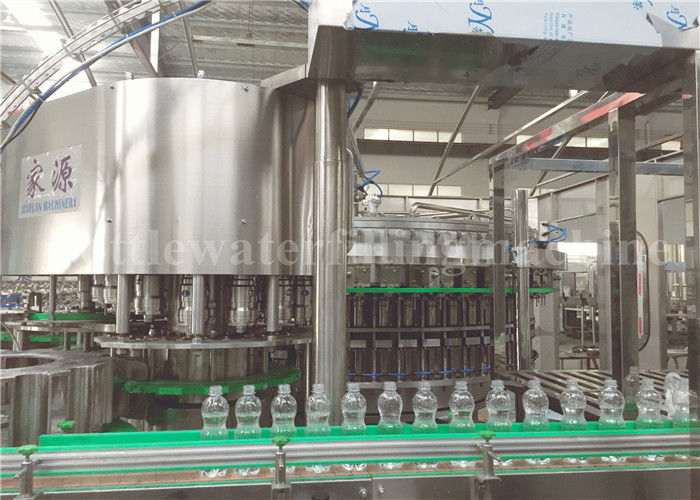

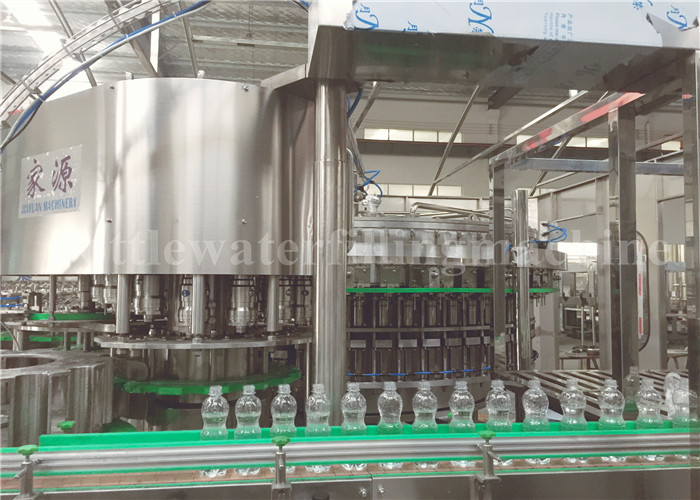

This carbonated beverage filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping.It is equipped with CO2 accuracy pressure control,so that the liquid level is always stable.The application of alarm devices for bottle jam,bottle storage,bottle damage,cap storage,over loading etc.In several places ensure the quality of its production.The machine obtains advantages of high reliability,high efficiency,high grade of automation and easy operation,etc.
Technique parameter
Model: | DCGF60-60-15 |
Capacity :500ml | 24000BPH |
Bottle shape: | Round or square |
PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
Cap: | PE srew cap |
Filling precision: | ≤±5mm |
Filling pressure:(Mpa) | 0.15-0.35 |
Rinsing pressure:(Mpa) | 0.2-0.25 |
Filling volume :(L) | 8 |
Overall size:(mm) | 6600*6600*2600 |
Weight: (kg) |
1t |
Main features
1. It is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 2000BPH to 28000BPH.
2. It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
3. Adopting suspensory transmission gear can easily upkeep and be repaired.
4. The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
5. It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling gas-containing drink, such as aerated water, cola sparking wine, fruit tea soda water and so on. It is advanced in construction, steadily in performance, safe in operation, easy in maintenance high in production efficiency, and the speed can be regulated infinitively. This equipment is the ideal choice for drink factories of soda water drinks.
