CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine

CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine

    • CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine
    • CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine
    • CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine
    • CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine
    • CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine
  • CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: DGCF18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $30,000 - 560,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Condtion: New Dimension(L*W*H): 2450*1800*2200mm
    Filling Capacity: 4000BPH(500ml) Filling Type: Balanced Pressure
    Weight: 3000kg Power: 5.03KW
    Voltage: 380V/50HZ Automatic Grade: Fully-automatic



    Glass Bottle Carbonated Drink Filling Machine / Aerated Drink , Sparkling Water Bottling Machine Production Line





    Video show:

    https://www.youtube.com/watch?v=GPTohJGTaE4&feature=share

    Click the below picture,you can see the video:

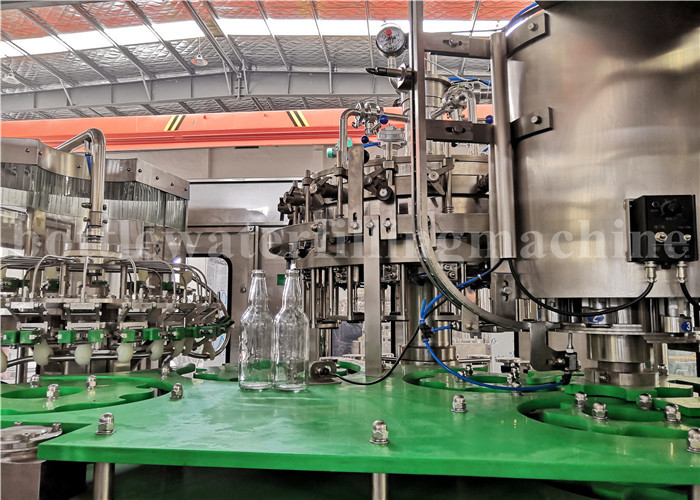

    CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine







    The glass bottle carboanted beverage filling machine adopts international advanced technology, scientific and reasonable design, beautiful appearance, convenient operation and maintenance, high degree of automation.This machine is the ideal equipment for beverage filling plant.





    Technique parameter:

    Model: DCGF18-18-6 DCGF24-24-8 DCGF32-32-12 DCGF40-40-12
    Capacity :500ml 3000 8000 12000 16000
    Bottle shape: roud or square
    PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
    Cap: PE srew cap
    Filling precision: ≤±5mm
    Filling pressure:(Mpa) 0.15-0.35 0.15-0.35 0.15-0.35 0.15-0.35
    Rinsing pressure:(Mpa) 0.2-0.25 0.2-0.25 0.2-0.25 0.2-0.25
    Filling volume :(L) 3.5 4 6 8
    Overall size:(mm) 2450*1800*2200 2780*2200*2350 3600*2650*2350 3800*2950*2400
    Weight: (kg) 3000 4000 5000 6000





    Structural Features

    1, The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.

    2, Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

    3, Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

    4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.

    5, Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.

    6, Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.

    7, With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.

    8,All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.

    9, Manually dry oil lubrication system to make sure equipment maintenance is more convenient.

    10, The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.



    CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine



    CE Carbonated Drink Filling Machine / Aerated Drink Sparkling Water Bottling Machine
